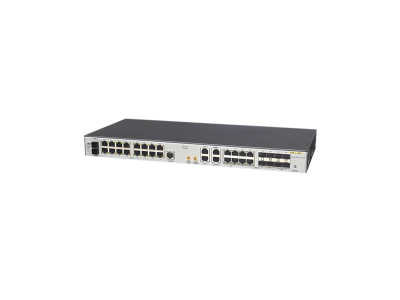

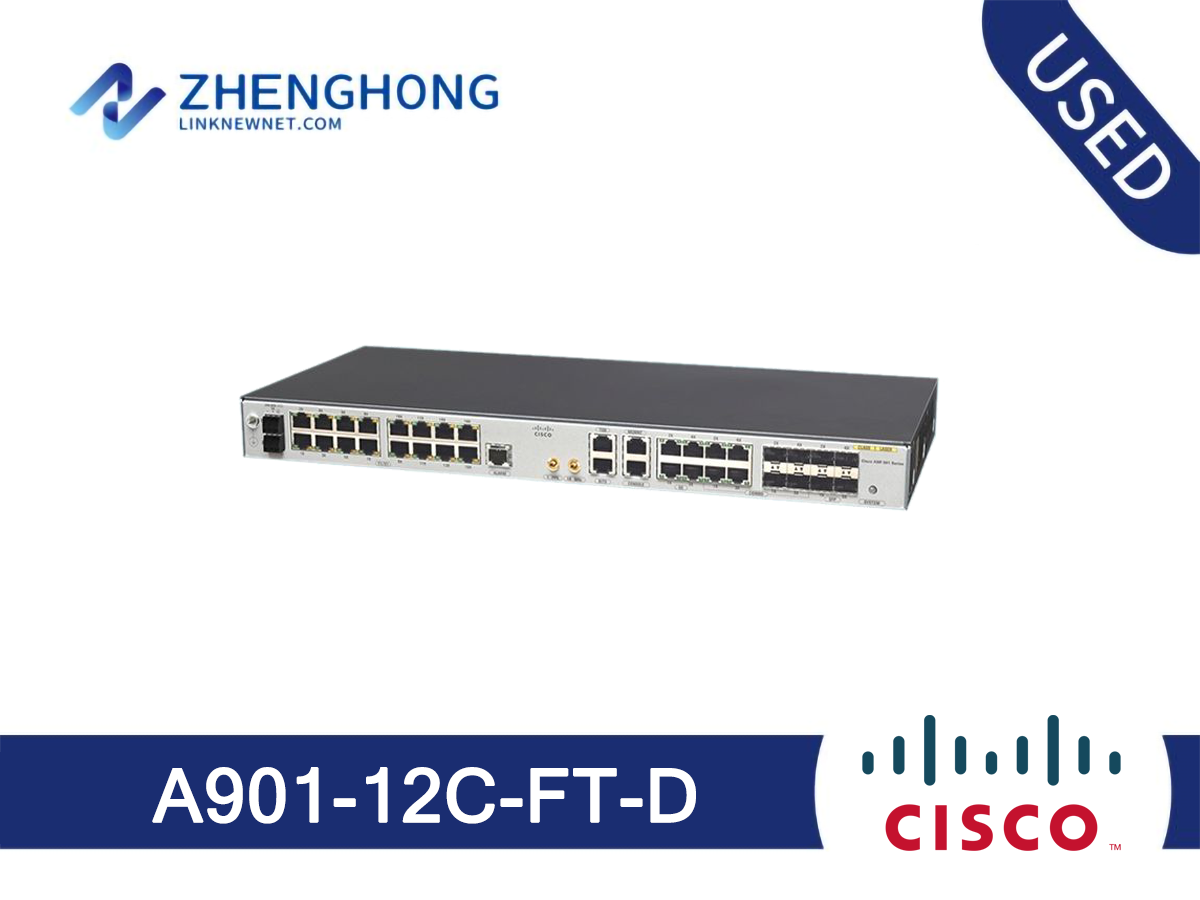

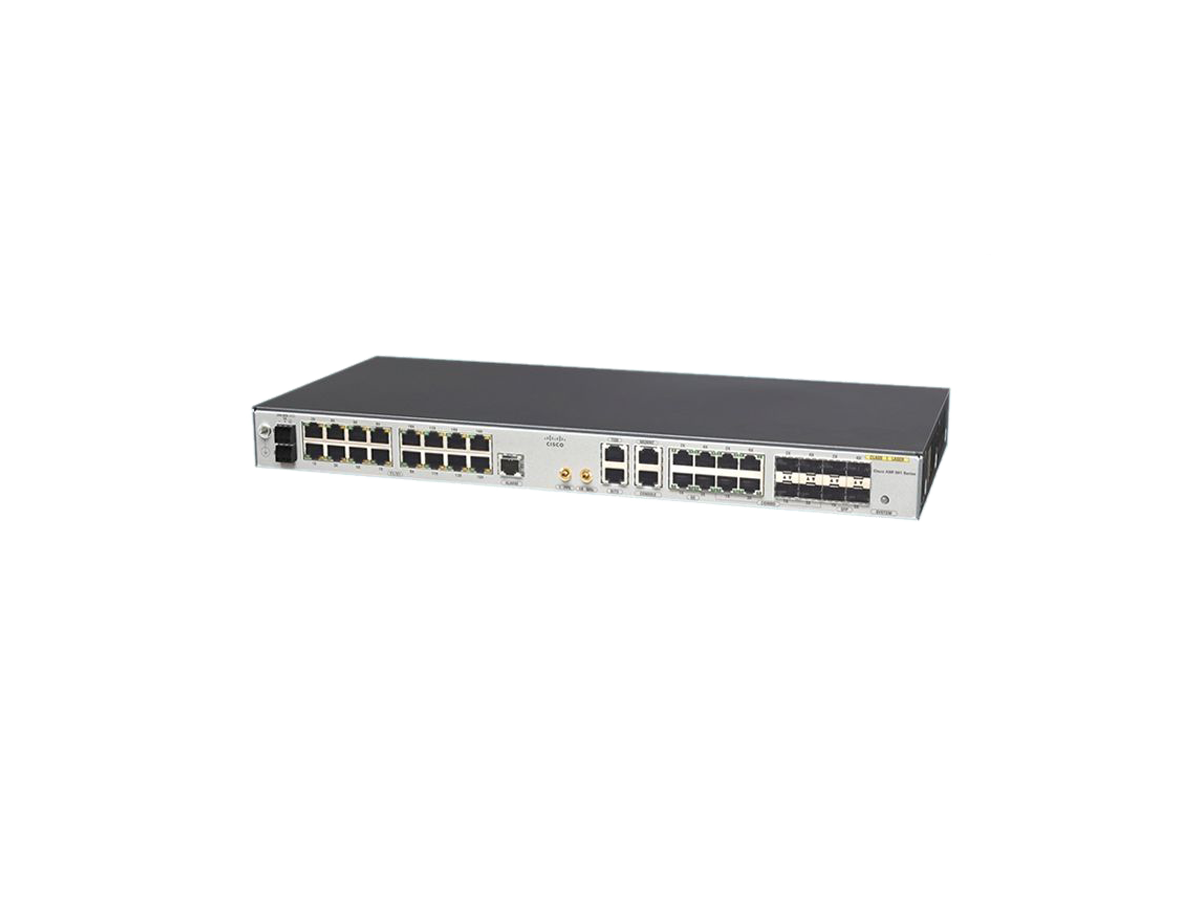

Cisco ASR 901 Series Chassis A901-12C-FT-D Overview
Cisco ASR 901 Series Chassis A901-12C-FT-D is a genuine edge and wide-area routing product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco ASR 901 Series family, the A901-12C-FT-D unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, it offers 4 ports for client, server or uplink connectivity. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco A901-12C-FT-D Cisco ASR 901 Router - TDM+Ethernet Model”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the A901-12C-FT-D. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned A901-12C-FT-D
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
A901-12C-FT-D Specifications | |
Description | Cisco ASR 901 Series Aggregation Services Router Chassis, Ethernet and TDM interfaces, DC power |
System Specifications | |
Dimensions (H x W x D) | 1.7 x 17.5 x 8.3 in. (43.2 x 444.5 x 211 mm), 1 RU |
Weight | 8.15 lb (3.7 kg) |
Mean Time Between Failure (MTBF) | 378,310 hours |
Power supplies | 2 power supplies (DC only); module redundancy: 1:1 |
Memory | Flash memory: 128 MB (onboard flash) System memory: 1 GB (DDR3) |
Rack mounts | 1 GE models: · 19-in. rack mount option · 23-in. rack mount option · Recessed rack mount option for 19-in. cabinets |
Fans | Dual fan, 1+1 redundancy |
Air flow | Left to right airflow |
Cabling | Front-panel access cabling and LED indicators |
Ethernet ports | 4 100/1000 RJ-45 Gigabit Ethernet ports 4 x 1 SFP Gigabit Ethernet ports 4 x 1 Gigabit Ethernet Combo ports |
Console port | 1 (up to 115.2 Kbps) |
External timing ports | BITS input, 10-MHz input/output, 1 PPS input/output, ToD interface, and SyncE |
Power Specifications | |
Power consumption | 1 GE models: dual DC DC-input power and power dissipation: 50W |
Power rating | 1 GE models: · DC-input voltage rating: 24 VDC, -48 VDC, -60 VDC · DC-input current rating: 2.5A maximum for non-TDM variants and 3.0A maximum for TDM variants |
