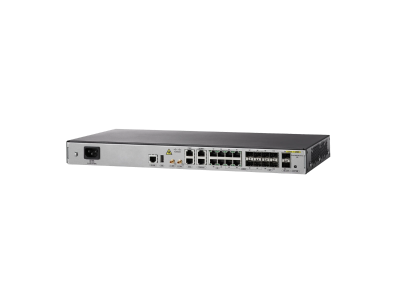

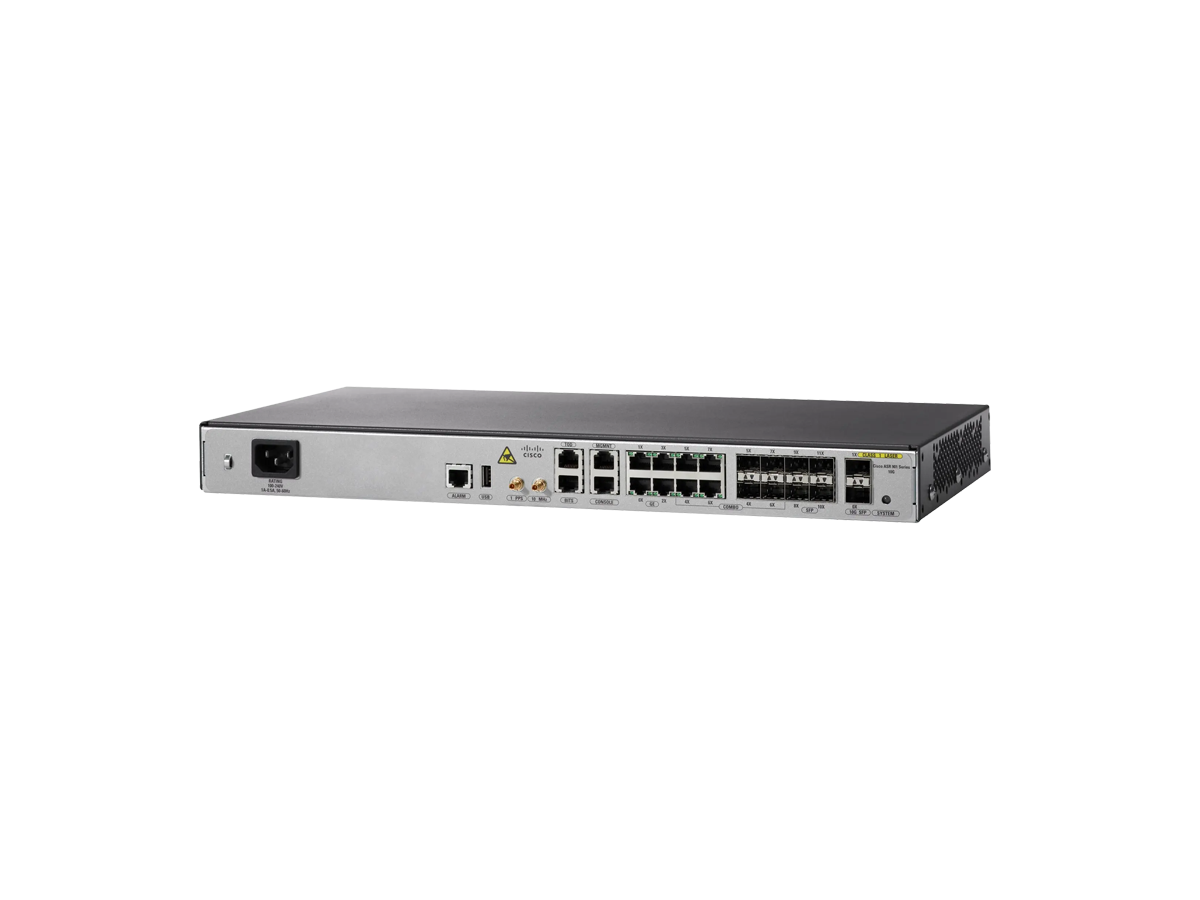

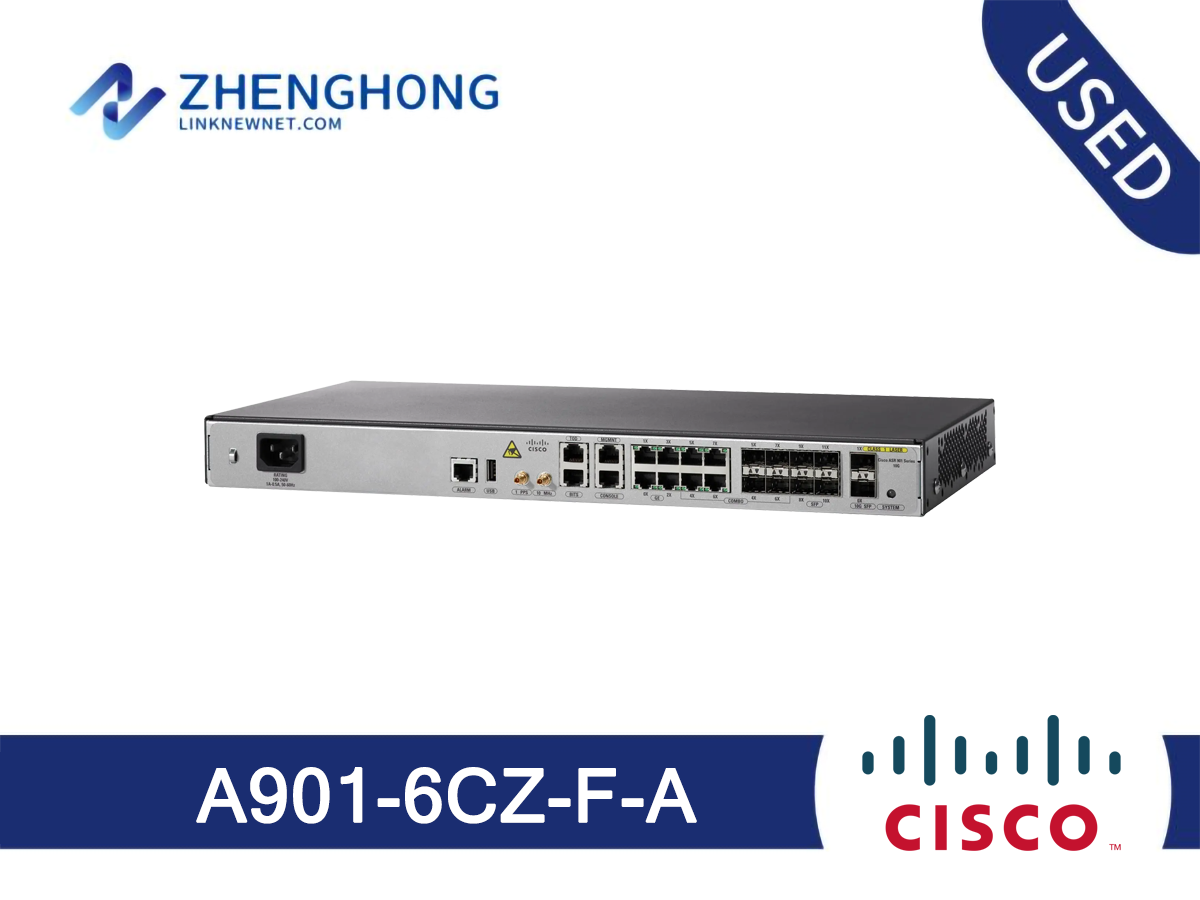

Cisco ASR 901 Series Chassis A901-6CZ-F-A Overview
Cisco ASR 901 Series Chassis A901-6CZ-F-A is a genuine edge and wide-area routing product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco ASR 901 Series family, the A901-6CZ-F-A unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco ASR 901 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco A901-6CZ-F-A Cisco ASR 901 10G Router - Ethernet Model - AC Power”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the A901-6CZ-F-A. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned A901-6CZ-F-A
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
A901-6CZ-F-A Specifications | |
Description | Cisco ASR 901 Series Aggregation Services Router Chassis, Ethernet-only interfaces, 10 GE, AC power, USB |
System Specifications | |
Dimensions (H x W x D) | 1.7 x 17.5 x 9.1 in. (43.2 x 444.5 x 231 mm), 1RU |
Console port | 1 (up to 115.2 Kbps) |
USB port | 1 supported |
Weight | 7.93 lb (3.6 kg) |
Memory | Flash memory: 128 MB (onboard flash) System memory: 1 GB (DDR3) |
Air flow | Left to right airflow |
Power supplies | 1 power supply (AC only) |
Mean Time Between Failure (MTBF) | 499,660 hours |
Cabling | Front-panel access cabling and LED indicators |
External timing ports | BITS input, 10-MHz input/output, 1 PPS input/output, ToD interface, and SyncE |
Fans | Three fans, with redundancy |
Ethernet ports | 4 100/1000 RJ-45 Gigabit Ethernet ports 4 x 1 SFP Gigabit Ethernet ports 4 x 1 Gigabit Ethernet Combo ports 2 x 10 Gigabit Ethernet ports (10 GE models only) |
Power Specifications | |
Power consumption | 10 GE models: single AC only AC-input power and power dissipation: 57W |
AC input voltage and frequency | AC-input voltage rating: 100V-240V 1A-0.5A, 50-60Hz |
