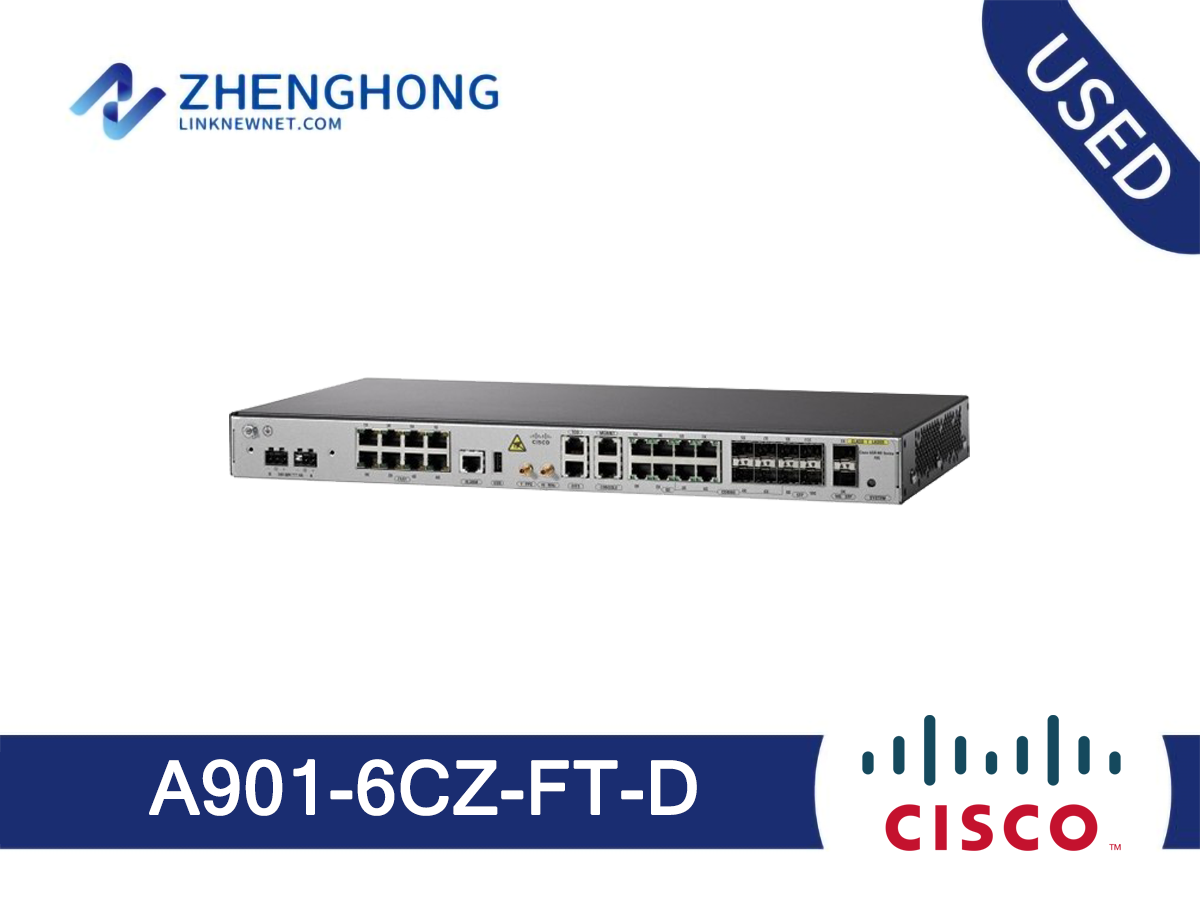

Cisco ASR 901 Series Chassis A901-6CZ-FT-D Overview
Cisco ASR 901 Series Chassis A901-6CZ-FT-D is a genuine edge and wide-area routing product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco ASR 901 Series family, the A901-6CZ-FT-D unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco ASR 901 Series family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco A901-6CZ-FT-D Cisco ASR 901 10G Router - TDM+Ethernet Model - DC Power”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the A901-6CZ-FT-D. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned A901-6CZ-FT-D
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
A901-6CZ-FT-D Specifications | |
Description | Cisco ASR 901 Series Aggregation Services Router Chassis, Ethernet and TDM interfaces, 10 GE, DC power, USB |
System Specifications | |
Dimensions (H x W x D) | 1.7 x 17.5 x 9.1 in. (43.2 x 444.5 x 231 mm), 1RU |
Weight | 8.15 lb (3.7 kg) |
Memory | Flash memory: 128 MB (onboard flash) System memory: 1 GB (DDR3) |
Rack mounts | 10 GE models: · 19-in. rack mount option · 23-in. rack mount option · ETSI rack mount option · Recessed rack mount option for 19-in. cabinets · Recessed rack mount option for 23-in. cabinets · Recessed rack mount option for ETSI cabinets · Wall mount option |
Ethernet ports | 4 100/1000 RJ-45 Gigabit Ethernet ports 4 x 1 SFP Gigabit Ethernet ports 4 x 1 Gigabit Ethernet Combo ports 2 x 10 Gigabit Ethernet ports (10 GE models only) |
USB port | 1 supported on the following chassis models: |
External timing ports | BITS input, 10-MHz input/output, 1 PPS input/output, ToD interface, and SyncE |
Fans | 10 GE models: three fans, with redundancy |
Air flow | Left to right airflow |
Cabling | Front-panel access cabling and LED indicators |
Power supplies | 2 power supplies (DC only); module redundancy: 1:1 |
Mean Time Between Failure (MTBF) | 378,490 hours |
Power Specifications | |
Power consumption | 10 GE models: dual DC Maximum DC-input power and power dissipation at 48V supply: · A901-6CZ-F-D: 58W · A901-6CZ-FS-D: 59W · A901-6CZ-FT-D: 67W |
Power rating | 10 GE models: · DC-input voltage rating: 24 VDC, -48 VDC, -60 VDC DC-input current rating: 4A maximum |
Power connector | 6-position 2-tier stacked connector comprising two feeds, A and B DC power (AMPHENOL ELVA06100), and 3‑position mating connectors for each feed (AMPHENOL ELVP03100) |
Environmental Specifications | |
Operating temperature | -40 to 149°F (-40 to 65°C) |
Nonoperating temperature | -40 to 158°F (-40 to 70°C) |
Relative humidity | 10% to 85%, noncondensing, ±5 % |
Operational altitude | 13,000 ft (4000m) maximum 104°F (40°C) ambient |
A901-6CZ-FT-D - Product Notes
This listing is a specific SKU variant of the A901-6CZ-FT-D family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
A901-6CZ-FT-D - Product Notes
This listing is a specific SKU variant of the A901-6CZ-FT-D family. Review the specifications above and confirm compatibility with your existing infrastructure, including software version, mounting, and interface requirements, before ordering.
For volume requirements we offer configuration checks and staged delivery options. Our team can confirm revision levels, software compatibility, and lead time before you place an order.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation.
A901-6CZ-FT-D - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco router is positioned at the WAN edge, branch, or service-provider aggregation point. It provides routing, VPN, QoS and security services, and integrates with Cisco IOS-XE / IOS-XR management.
Deployment guidance: When planning this A901-6CZ-FT-D unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: ASR-920-24SZ-M, A900-IMA8S, ASR-903, A900-PWR-BLANK, A903-RSPA-BLANK. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: D = DC power - this suffix indicates the feature set, power, or regulatory variant of the A901-6CZ-FT-D, which affects software licensing and regional compliance.
