AIR-ANT24120|LinkNewNet

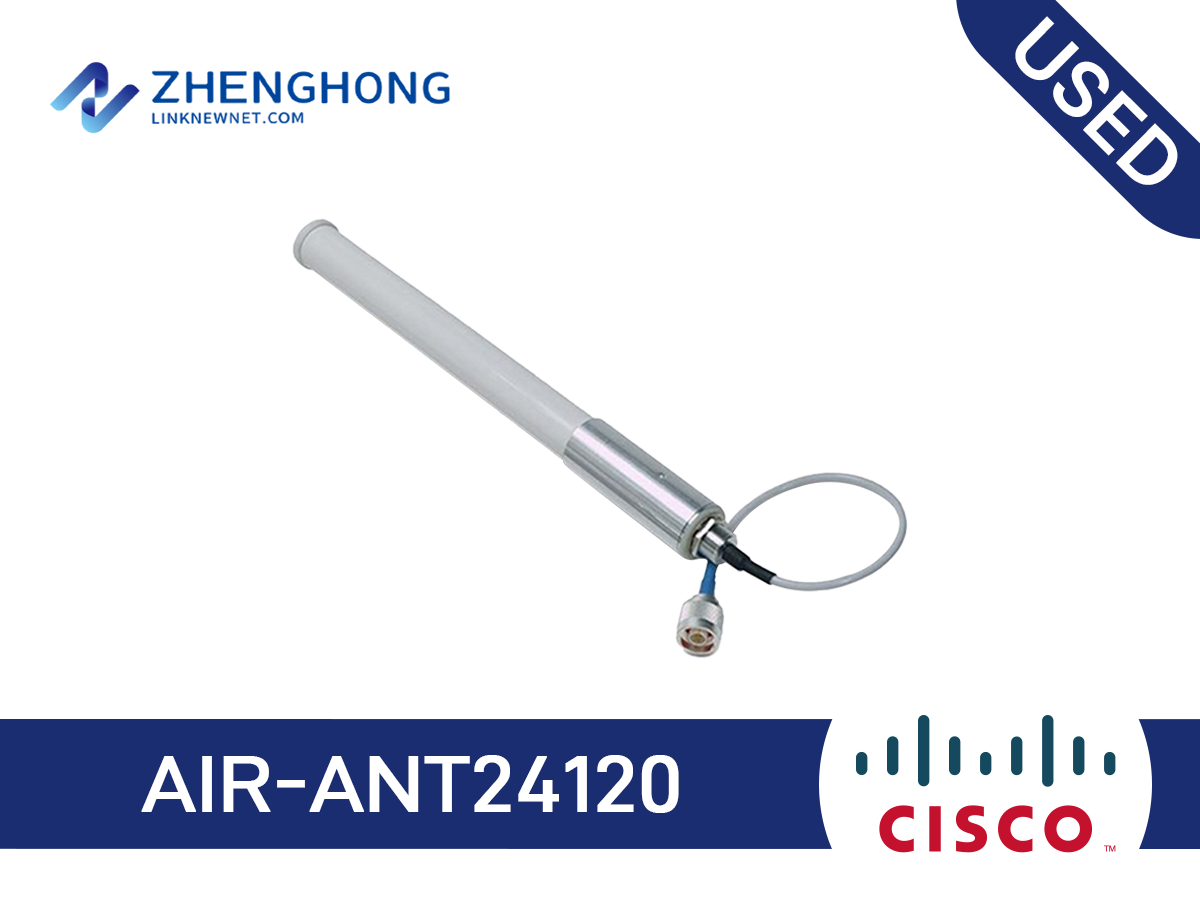

AIR-ANT24120 Cisco Antenna 2.4 GHz

Model: AIR-ANT24120

Detail: 2.4 GHz,12 dBi Omni Mast Mt. Antenna w/RP-TNC Connector

Condition: USED

List Price: $369 Price: $221

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-ANT24120 Specification
General
Product Type	Antenna
Width	1.5 in
Height	41.7 in
Weight	3.09 lbs
Antenna
Gain	12 dBi
Directivity	Omni-directional
Cabling & Wiring
Connector Provided	1 x RP-TNC
Miscellaneous
Mounting Kit	Included
Environmental Parameters
Min Operating Temperature	-40 °F
Max Operating Temperature	158 °F
Compatibility Information
Designed For	Cisco Aironet 1200, 1220, 1230, 1230AG, 1231, 1231G, 1232AG, 1242AG, 1242G, 1250 Modular Unified Access Point Platform, 1252AG, 1252AG Standalone Access Point, 1252AG Unified Access Point, 1252G, 1252G Unfied Access Point, 1260 Series Access Point (Controller-based)

Q&A

What are common troubleshooting steps for AIR-ANT24120?

Ensure the antenna is properly connected to the access point via the RP-TNC connector, check for physical damage, and verify that the access point is working correctly.

What accessories are available for AIR-ANT24120?

The AIR-ANT24120 comes with mast mounting hardware. Additional accessories like RF cables and connectors can be used to extend the installation.

How does the AIR-ANT24120 compare to other similar products?

The AIR-ANT24120 offers a higher gain (12 dBi) compared to many other antennas in its category, providing superior coverage and performance for 2.4 GHz networks.

How do I maximize the performance of the AIR-ANT24120?

For maximum performance, mount the AIR-ANT24120 in a high, central location free from obstructions and ensure it is properly aligned with your access point.

How does the AIR-ANT24120 enhance Wi-Fi coverage?

The AIR-ANT24120, with its 12 dBi omni-directional gain, expands Wi-Fi coverage, providing wide-area connectivity for outdoor use.

Is the AIR-ANT24120 cost-effective for expanding wireless networks?

Yes, the AIR-ANT24120 is a cost-effective solution for extending wireless connectivity across large areas without needing multiple access points.

What are the installation requirements for the AIR-ANT24120?

The AIR-ANT24120 requires a mast for mounting and an RP-TNC connector for antenna connection to compatible Cisco devices.

Can the AIR-ANT24120 be used in harsh environmental conditions?

Yes, designed for outdoor use, the AIR-ANT24120 is built to withstand harsh environmental conditions, ensuring reliable performance.

How does the AIR-ANT24120 compare with directional antennas?

Unlike directional antennas that focus signal in a specific direction, the AIR-ANT24120 offers 360-degree coverage, ideal for covering wide areas evenly.

Are there any recommended Cisco products to pair with the AIR-ANT24120?

The AIR-ANT24120 pairs well with Cisco outdoor wireless access points that support an RP-TNC connector, enhancing network range and quality.

Does the AIR-ANT24120 require professional installation?

While professional installation is recommended for optimal placement and performance, especially at height, it can be installed by individuals with proper guidance and safety measures.

What accessories come with the AIR-ANT24120?

The AIR-ANT24120 comes with mounting hardware for installation on a mast, though additional tools and equipment may be required for setup.

How often does the AIR-ANT24120 need maintenance?

With its durable design, the AIR-ANT24120 requires minimal maintenance, though regular checks for physical damage and performance issues are advised.

Are there alternative products to the AIR-ANT24120 for indoor use?

Yes, for indoor scenarios, Cisco offers a range of access points and indoor antennas that provide similar connectivity with features suited to indoor environments.

How cost-effective is the AIR-ANT24120 antenna?

The AIR-ANT24120 is highly cost-effective, providing excellent coverage and high gain (12 dBi) at a competitive price point.

What are the key features of the AIR-ANT24120?

The AIR-ANT24120 features a 2.4 GHz frequency band, 12 dBi omni-directional pattern, and RP-TNC connector, making it suitable for various wireless applications.

In what scenarios can the AIR-ANT24120 be used?

The AIR-ANT24120 is ideal for outdoor wireless networking, providing broad, even signal distribution for Wi-Fi coverage in large areas such as campuses and industrial sites.

How do I install the AIR-ANT24120 antenna?

The AIR-ANT24120 antenna can be installed using the provided mast mounting hardware. Connect the RP-TNC connector to the access point for optimal performance.

Does the AIR-ANT24120 require software updates?

No, the AIR-ANT24120 antenna does not require software updates as it is a hardware component that works with various Cisco access points and controllers.

Are there alternative products to the AIR-ANT24120?

Yes, alternative products include other Cisco antennas with different gain and pattern specifications such as AIR-ANT2480V-N for specific needs.
