AIR-ANT2524DB-R|LinkNewNet

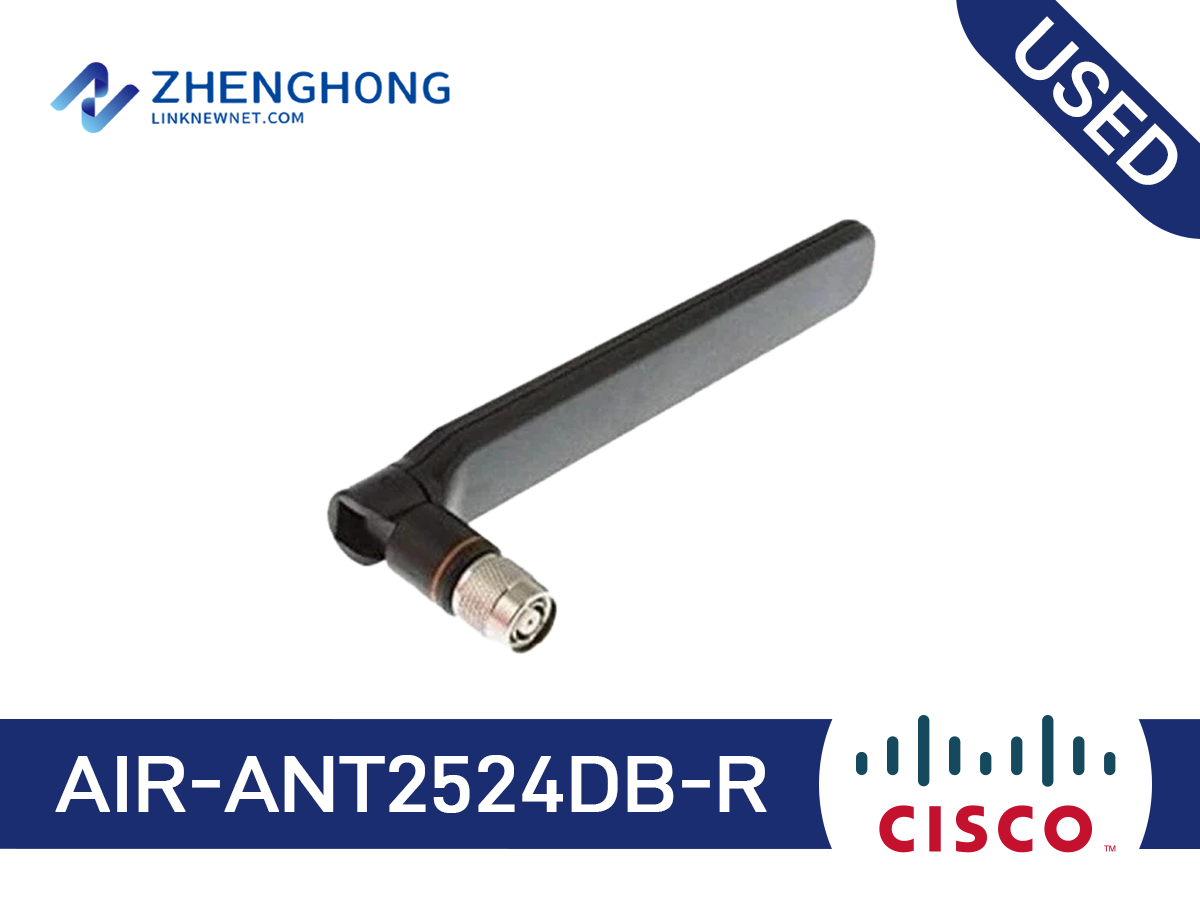

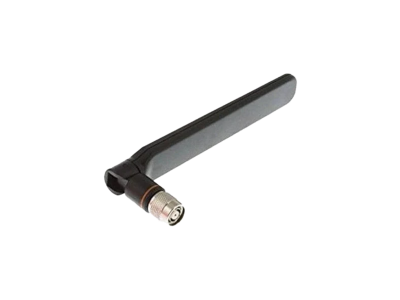

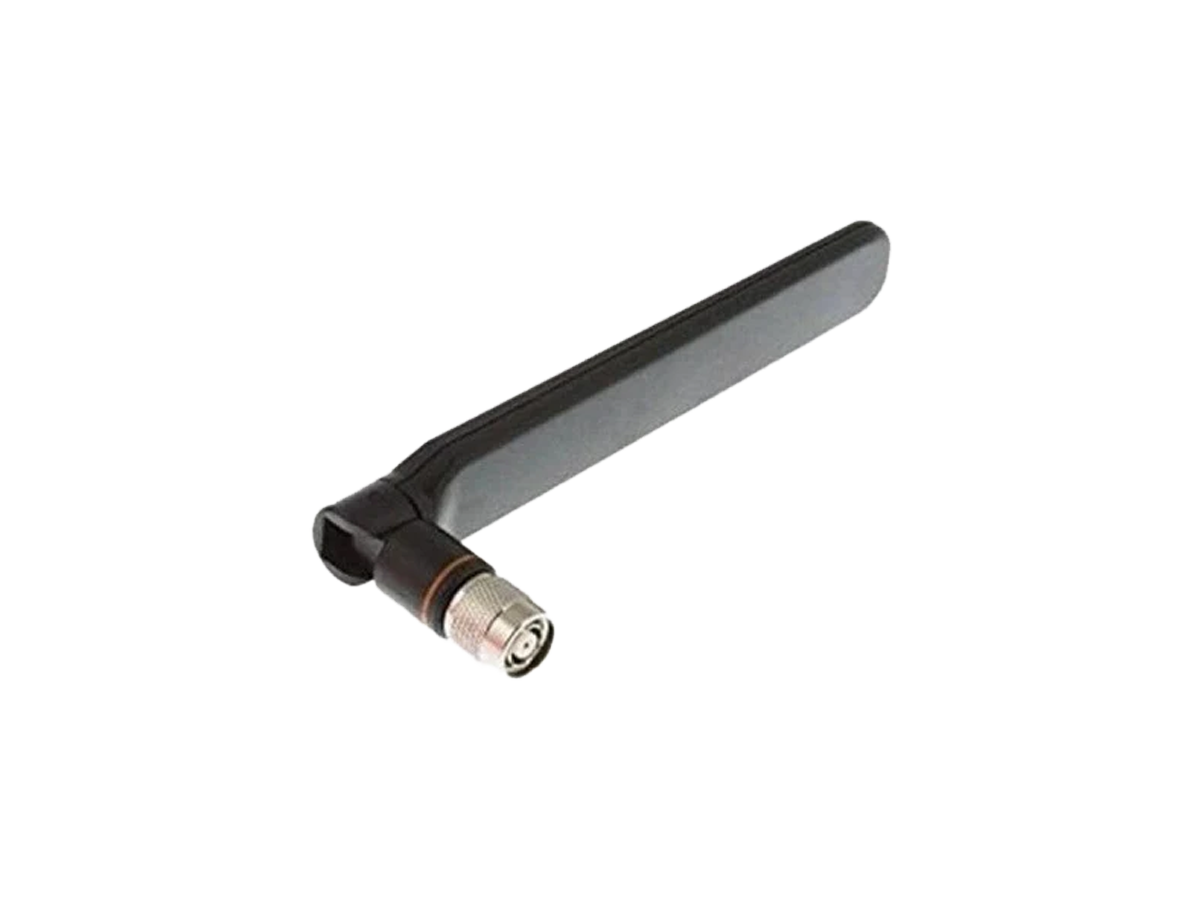

AIR-ANT2524DB-R Cisco Antennas - Dual Band

Model: AIR-ANT2524DB-R

Detail: Cisco AIR-ANT2524DB-R 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., Blk, RP-TNC

Condition: USED

List Price: $26 Price: $16

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

Parameter	Value
Antenna Type	Dual-band dipole
Operating Frequency Range	2400 to 2500 MHz, 5150 to 5850 MHz
Nominal Input Impedance	50 Ohms
Enclosure Color	Black
VSWR	Less than 2:1
Peak Gain @ 2.4 GHz	2 dBi
Peak Gain @ 5 GHz	4 dBi
Elevation Plane 3dB Beamwidth @ 2.4 GHz	63 degrees
Elevation Plane 3dB Beamwidth @ 5 GHz	39 degrees
Connector Type	RP-TNC plug
Antenna Length	6.63 in. (168.5 mm)
Antenna Width	0.83 in (21 mm)
Radome Length	4.88 in. (124 mm)
Weight	1.3 oz
Operating Temperature	–4° to 140°F (–20°C to 60°C)
Storage Temperature	–40°F to 185°F (–40°C to 85°C)
Environment	Indoor, office
Intended For	Wi-Fi
Compatibility	802.11n
Frequency Range	2.4 GHz, 5 GHz
Designed For	Cisco Aironet 2702e Controller-based, 3602E

Q&A

What accessories are available for the AIR-ANT2524DB-R?

Accessories include mounting brackets and extension cables compatible with RP-TNC connectors.

How does the AIR-ANT2524DB-R compare with other similar antennas?

The AIR-ANT2524DB-R offers a balanced dual-band performance with higher gain on 5 GHz, making it suitable for diverse indoor environments.

What common troubleshooting steps are there for AIR-ANT2524DB-R?

Ensure the antenna is securely connected to the AP and check for any obstructions that may affect signal strength.

What are the product categories for the AIR-ANT2524DB-R?

The AIR-ANT2524DB-R falls under Cisco Wireless APs & Controllers and Access Point Antennas for 2.4, 5, and 5.8 GHz bands.

What is the cisco air ant2524db r?

The cisco air ant2524db r is a dual-band omnidirectional antenna designed for Wi-Fi.

What frequency ranges does the air ant2524db r cover?

The air ant2524db r covers both the 2.4 GHz and 5 GHz frequency ranges.

What is the gain of the cisco air ant2524db r?

The cisco air ant2524db r has a gain of 2.2 dBi at 2.4 GHz and 4.0 dBi at 5 GHz.

What type of connector does the air ant2524db r have?

The air ant2524db r has an RP-TNC connector.

What is the maximum power handling capacity of the cisco air ant2524db r?

The cisco air ant2524db r can handle a maximum power of 20 watts.

Is the air ant2524db r suitable for outdoor use?

Yes, the air ant2524db r is designed for both indoor and outdoor use.

What is the polarization of the cisco air ant2524db r?

The cisco air ant2524db r is vertically polarized.

What is the omnidirectional pattern of the air ant2524db r?

The air ant2524db r has a hemispheric omnidirectional pattern.

What is the length of the cisco air ant2524db r?

The cisco air ant2524db r is approximately 21 cm (8.3 in) in length.

What devices are compatible with the cisco air ant2524db r?

The cisco air ant2524db r is compatible with Cisco Aironet access points.

How is the AIR-ANT2524DB-R cost-effective for system integrators?

The AIR-ANT2524DB-R offers a balance of performance and affordability, making it a cost-effective solution for wireless network extensions.

What are the key features of the AIR-ANT2524DB-R antenna?

The AIR-ANT2524DB-R features dual bands, with 2.4 GHz 2 dBi and 5 GHz 4 dBi gains, and an RP-TNC connector, providing reliable performance.

What are the common application scenarios for the AIR-ANT2524DB-R?

This antenna is ideal for indoor and outdoor wireless networking, particularly in enterprise environments requiring extended range.

How do you install the AIR-ANT2524DB-R antenna?

The AIR-ANT2524DB-R installs easily by connecting the RP-TNC connector to compatible Cisco access points. Mounting brackets may be needed for specific setups.

Does the AIR-ANT2524DB-R require any firmware upgrades?

No, the AIR-ANT2524DB-R itself does not require firmware upgrades; however, ensure compatible access points have the latest updates.

Are there alternative products to the AIR-ANT2524DB-R?

Alternatives include other dipole antennas like the Cisco AIR-ANT2524DW-R, offering different gain characteristics but compatible usage.

What should I do if the AIR-ANT2524DB-R is not performing well?

Check the connection to the access point and ensure proper placement. Interference sources should also be minimized for optimal performance.

What accessories are available for the AIR-ANT2524DB-R?

Accessories include compatible mounting kits and extension cables to improve installation flexibility.

How does the AIR-ANT2524DB-R compare to other Cisco antennas?

The AIR-ANT2524DB-R offers competitive dual-band performance at a balanced price, making it suitable for various Cisco deployments.

Can the AIR-ANT2524DB-R be used with non-Cisco products?

While designed for Cisco access points, it can potentially work with other devices using RP-TNC connectors, but performance may vary.

How cost-effective is the AIR-ANT2524DB-R for system integrators?

The AIR-ANT2524DB-R offers excellent performance at a competitive price point, providing enhanced wireless connectivity for both 2.4 GHz and 5 GHz bands.

What are the unique features of the AIR-ANT2524DB-R?

The AIR-ANT2524DB-R features a dual-band dipole design with 2 dBi gain for 2.4 GHz and 4 dBi gain for 5 GHz, offering robust performance and flexibility.

What application scenarios are suitable for the AIR-ANT2524DB-R?

The AIR-ANT2524DB-R is ideal for indoor deployments needing dual-band Wi-Fi coverage, such as offices, educational institutions, and retail environments.

How do I install the AIR-ANT2524DB-R?

Installing the AIR-ANT2524DB-R is simple; attach the antenna to any compatible Cisco Access Point using the RP-TNC connector.

Does the AIR-ANT2524DB-R require any software upgrades?

No, the AIR-ANT2524DB-R does not require any software upgrades; it is a hardware component that works with compatible Cisco Access Points.

Are there alternative products to the AIR-ANT2524DB-R?

Yes, the Cisco AIR-ANT2524DG-R is an alternative with similar specifications but a different form factor.

What accessories are available for the AIR-ANT2524DB-R?

Accessories include mounting brackets and extension cables compatible with RP-TNC connectors.

How does the AIR-ANT2524DB-R compare with other similar antennas?

The AIR-ANT2524DB-R offers a balanced dual-band performance with higher gain on 5 GHz, making it suitable for diverse indoor environments.

What common troubleshooting steps are there for AIR-ANT2524DB-R?

Ensure the antenna is securely connected to the AP and check for any obstructions that may affect signal strength.

What are the product categories for the AIR-ANT2524DB-R?

The AIR-ANT2524DB-R falls under Cisco Wireless APs & Controllers and Access Point Antennas for 2.4, 5, and 5.8 GHz bands.
