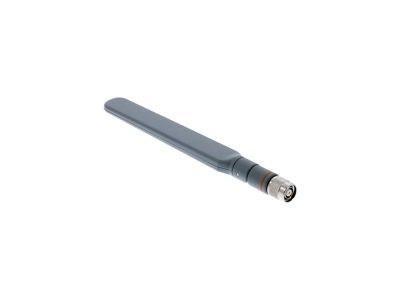

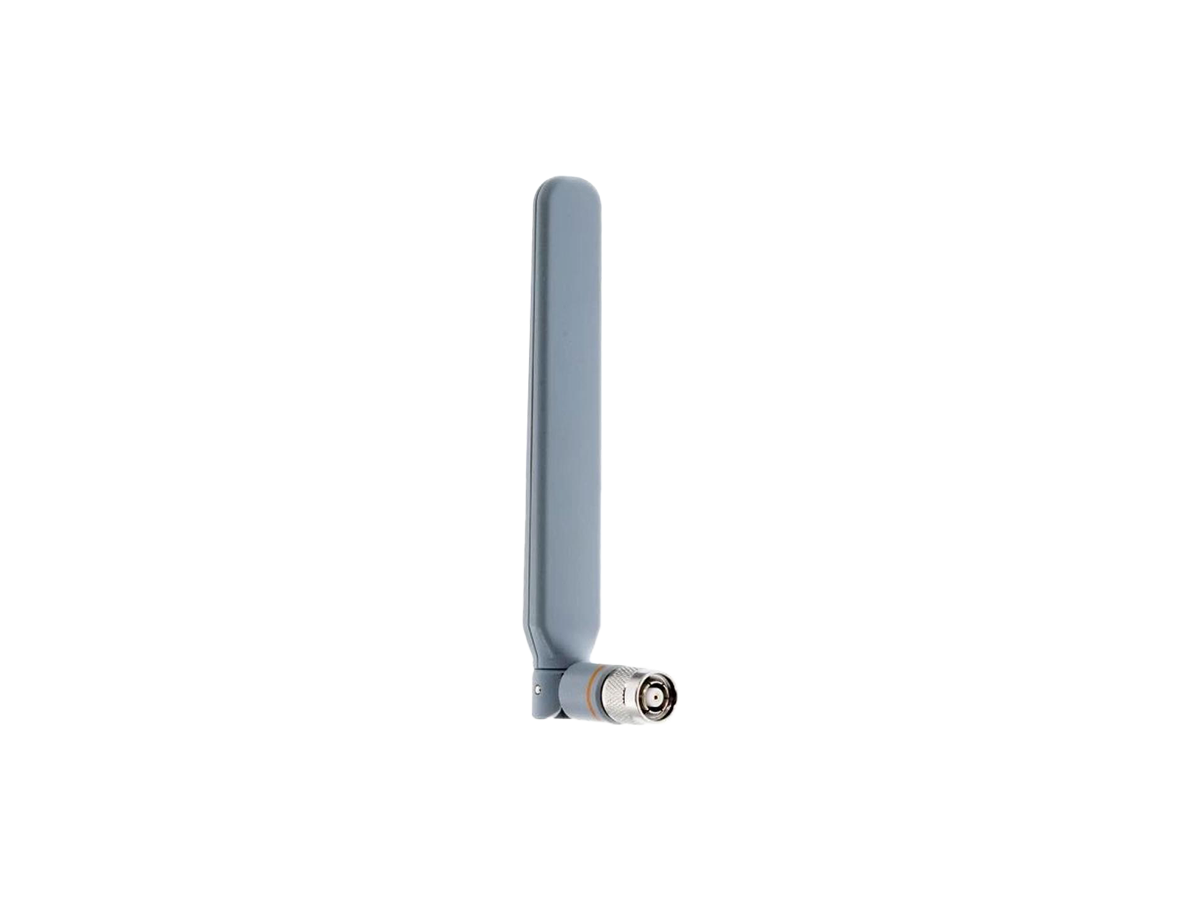

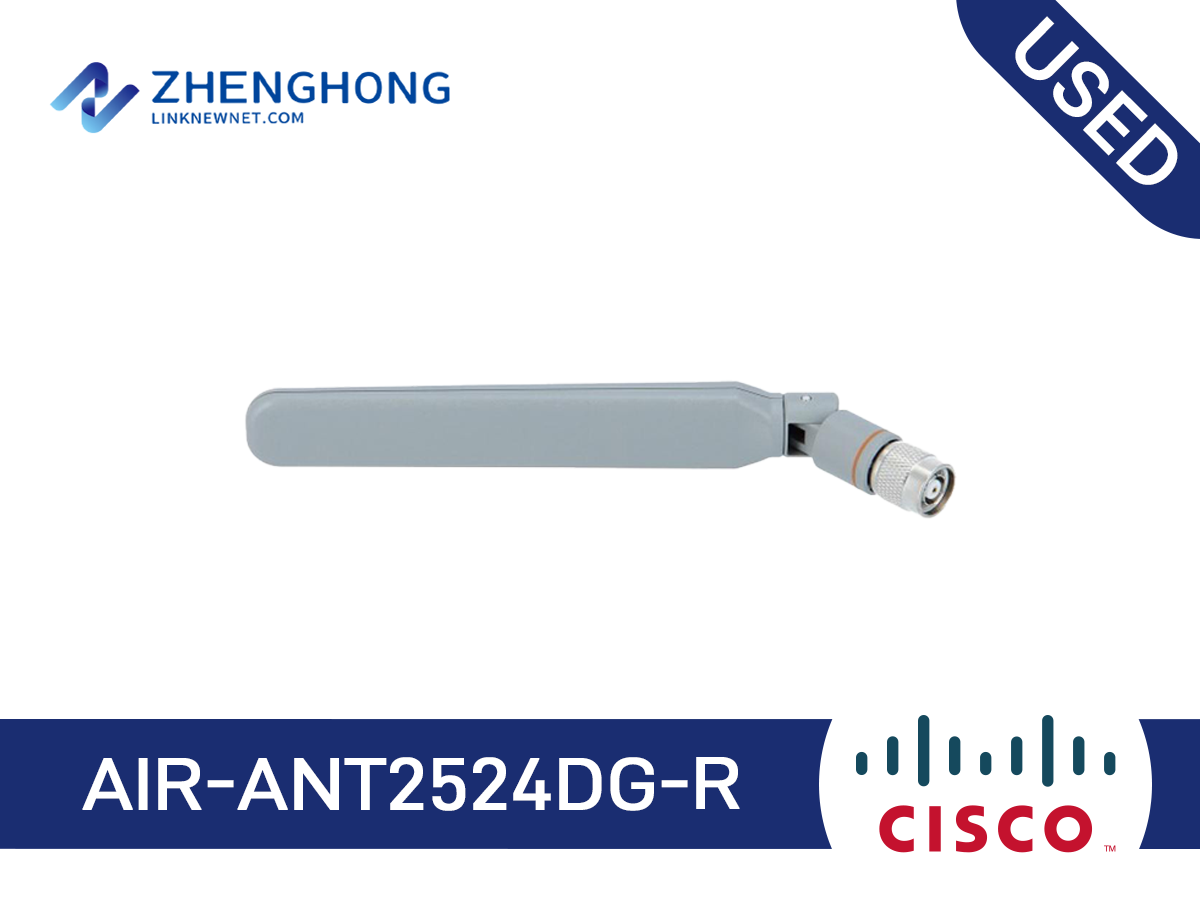

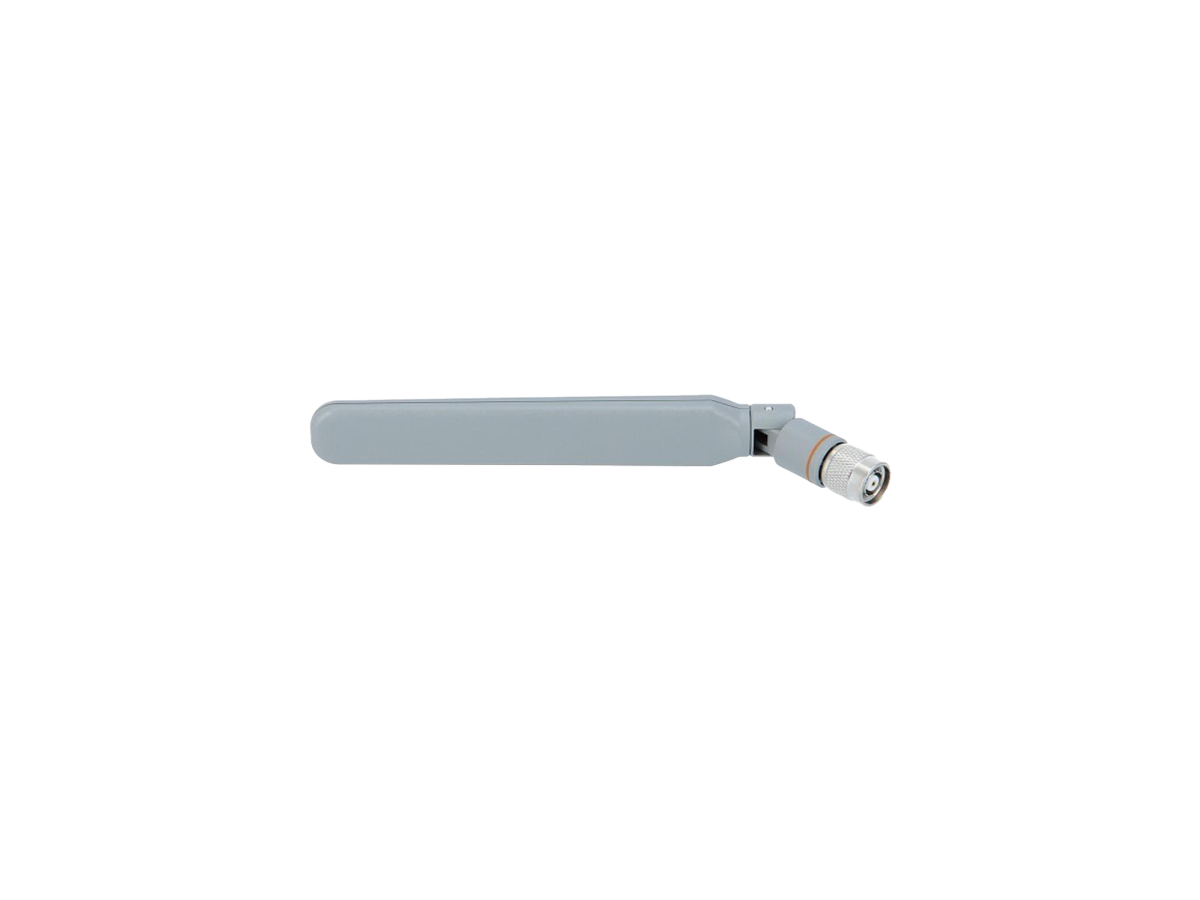

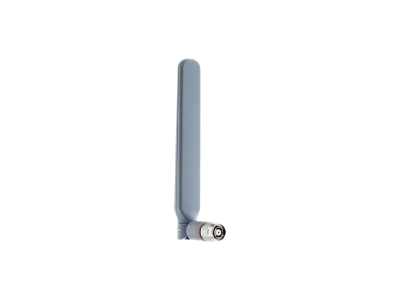

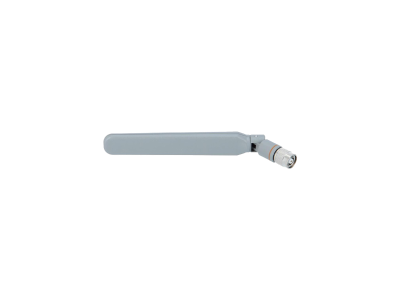

AIR-ANT2524DG-R Cisco Antennas - Dual Band Overview
AIR-ANT2524DG-R Cisco Antennas - Dual Band is a genuine wireless signal coverage product from Cisco, a leading enterprise networking vendor whose Catalyst, Nexus and ISR families power campus, data-center and branch networks worldwide. Belonging to the Cisco family, the AIR-ANT2524DG-R unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
This unit follows the original factory specification for the Cisco family, covering its intended role without compatibility surprises. Standard mounting, cabling and management practices apply, and it interoperates with surrounding hardware using the same procedures as other Cisco equipment already deployed in the network.
Typical deployments include outdoor and indoor wireless coverage extension, outdoor and indoor wireless coverage extension, and outdoor and indoor wireless coverage extension. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “Cisco AIR-ANT2524DG-R 2.4 GHz 2 dBi/5 GHz 4 dBi Dipole Ant., Gray, RP-TNC”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the AIR-ANT2524DG-R. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Campus Coverage
High-density wireless for offices and halls.
Branch Wi-Fi
Cost-effective coverage for remote sites.
Guest & IoT
Isolated guest networks and IoT onboarding.
Buying a Pre-Owned AIR-ANT2524DG-R
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
| AIR-ANT2524DG-R Specification | |
Parameter | Value |
|---|---|
Antenna type | Dual-band dipole |
Operating frequency range | 2400 to 2500 MHz |
5150 to 5850 MHz | |
Nominal input impedance | 50 Ohms |
VSWR | Less than 2:1 |
Peak Gain @ 2.4. GHz | 2 dBi |
Peak Gain @ 5 GHz | 4 dBi |
Elevation plane 3dB beamwidth @2.4 GHz | 63 degrees |
Elevation plane 3dB beamwidth @ 5 GHz | 39 degrees |
Connector type | RP-TNC plug |
Antenna length | 6.63 in. (168.5 mm) |
Antenna width | 0.83 in (21 mm) |
Radome length | 4.88 in. (124 mm) |
Weight | 1.3 oz |
Operating temperature | –4° to 140°F(–20°C to 60°C) |
Storage temperature | –40°F to 185°F(–40°C to 85°C) |
Environment | Indoor, office |
