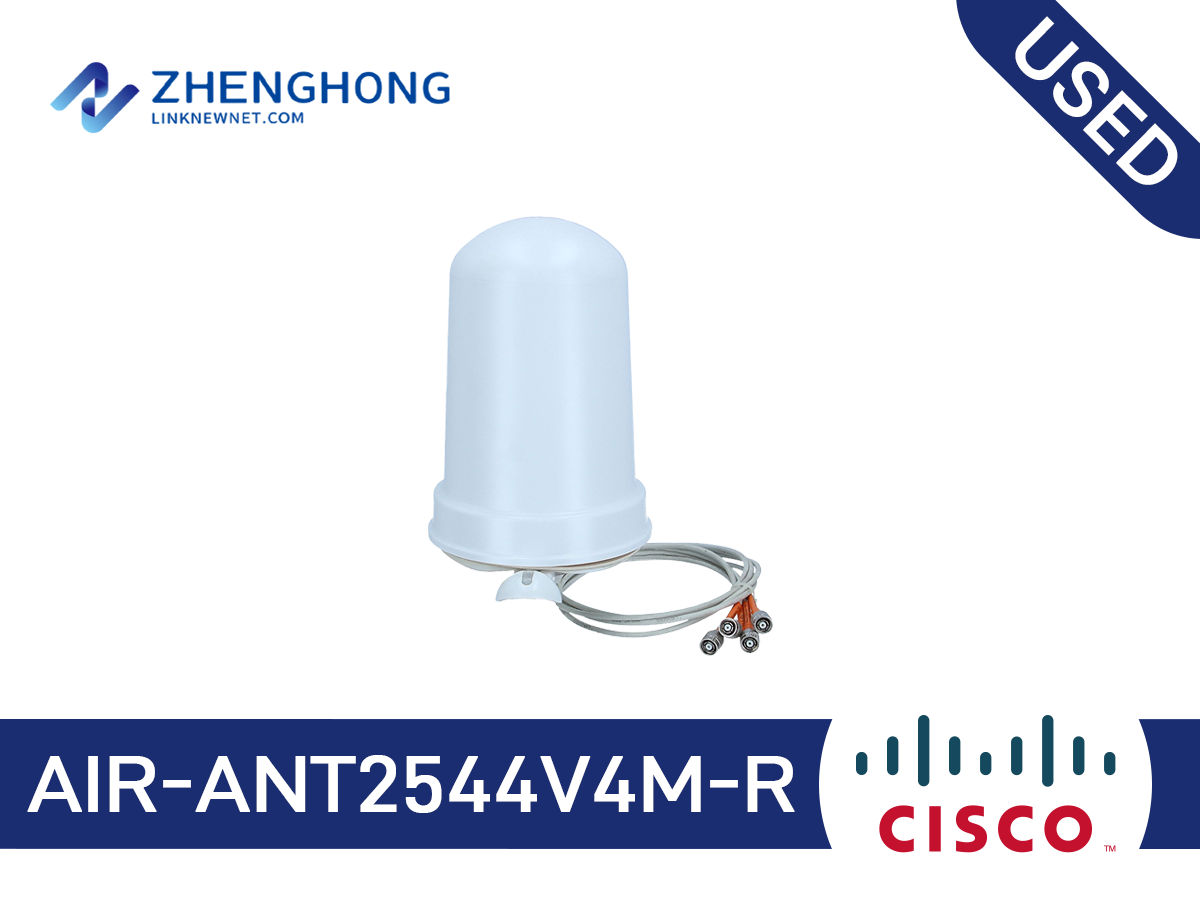

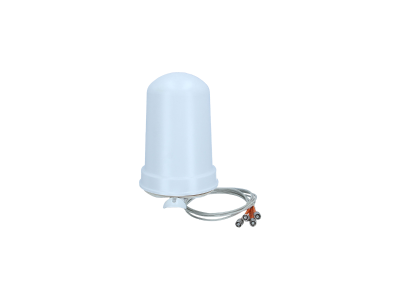

AIR-ANT2544V4M-R Cisco Antennas - Dual Band

Model: AIR-ANT2544V4M-R

Detail: Cisco AIR-ANT2544V4M-R 2.4GHz 4dBi/5GHz 4dBi Multi Mount Omni Ant., 4-port,RP-TNC

Condition: USED

List Price: $582 Price: $349

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-ANT2544V4M-R Specifications
Antenna type	4-element MIMO omnidirectional
Operating frequency range	2400–2484 MHz
Operating frequency range	5150–5850 MHz
Nominal input impedance	50 Ohms
VSWR	2:1 or less
Peak gain	2.4-GHz band: 4 dBi
Peak gain	5-GHz band: 4 dBi
Polarization	Linear, vertical
Azimuth plane(3 dB beamwidth)	Ominidirectional
Elevation plane(3 dB beamwidth)	2.4-GHz band: 60°
Elevation plane(3 dB beamwidth)	5-GHz band: 33°
Length	8.6 in (21.8 cm)
Diameter	6.3 in (16 cm)
Weight	Antenna: 1.48 lb. (671.5 g);
Cable	3-ft. (91.4 cm) plenum
Connector	RP-TNC
Environment	Indoor/outdoor
Temperature range	-22° F to 158° F(-30° C to 70° C)

Q&A

What common troubleshooting steps are there for the Cisco AIR-ANT2544V4M-R?

If experiencing issues, check RP-TNC connections, ensure proper alignment, and verify the access point configuration for optimal antenna performance.

What accessories are available for the Cisco AIR-ANT2544V4M-R?

Accessories include RP-TNC extension cables, mounting brackets compatible with the antenna, and protective covers for outdoor deployment.

How does the Cisco AIR-ANT2544V4M-R compare to similar antenna models?

The Cisco AIR-ANT2544V4M-R offers similar dual-band capabilities as other models but stands out with its four-port omni-directional design enhancing coverage.

Can the Cisco AIR-ANT2544V4M-R be used with non-Cisco access points?

While optimized for Cisco devices, the AIR-ANT2544V4M-R can be used with any access points compatible with RP-TNC connections for versatile deployment.

How cost-effective is the AIR-ANT2544V4M-R?

The AIR-ANT2544V4M-R offers a balance of performance and affordability, making it cost-effective for versatile deployments.

What are the key features of the AIR-ANT2544V4M-R?

It features 2.4GHz 4dBi/5GHz 4dBi gain, multi-mount options, and RP-TNC connectors, providing robust performance and flexibility.

What are the ideal application scenarios for AIR-ANT2544V4M-R?

This antenna is ideal for both indoor and outdoor environments, including offices, campuses, and warehouses requiring extended coverage.

How do I install the AIR-ANT2544V4M-R?

The AIR-ANT2544V4M-R comes with multi-mount options designed for easy installation on walls or ceilings.

Does AIR-ANT2544V4M-R require frequent upgrades?

No, the AIR-ANT2544V4M-R is designed for long-term performance and does not require frequent upgrades.

Are there alternative products to the AIR-ANT2544V4M-R?

Alternative products include other Cisco omni antennas, like the AIR-ANT2524DW-R, but specific needs should guide selection.

What are common troubleshooting steps for AIR-ANT2544V4M-R?

Check connections and ensure that RP-TNC connectors are properly secured; perform a site survey to identify signal obstacles.

What accessories are available for the AIR-ANT2544V4M-R?

Accessories include mounting kits and compatible Cisco access points with RP-TNC connectors.

How does AIR-ANT2544V4M-R compare to similar products?

The AIR-ANT2544V4M-R offers competitive gain and multi-mount versatility, making it a strong contender against similar Cisco antennas.

Is the AIR-ANT2544V4M-R suitable for heavy-duty industrial use?

Yes, its robust build and flexibility make it suitable for demanding industrial environments.

How cost-effective is the Cisco AIR-ANT2544V4M-R antenna?

The Cisco AIR-ANT2544V4M-R offers excellent performance with both 2.4GHz and 5GHz frequencies, making it a cost-effective choice for robust wireless coverage.

What are the key features of the Cisco AIR-ANT2544V4M-R antenna?

The Cisco AIR-ANT2544V4M-R features a 4dBi gain for both 2.4GHz and 5GHz frequencies and a four-port omni-directional design with RP-TNC connectors.

In which application scenarios is the Cisco AIR-ANT2544V4M-R ideal?

The Cisco AIR-ANT2544V4M-R is ideal for indoor environments such as offices or warehouses that require dual-band coverage and a flexible installation option.

How do you install the Cisco AIR-ANT2544V4M-R antenna?

Installation involves connecting the antenna to the access point using RP-TNC connectors and mounting it in the desired location using the hardware provided.

Does the Cisco AIR-ANT2544V4M-R require any firmware upgrades?

The Cisco AIR-ANT2544V4M-R antenna does not require any firmware upgrades; however, ensure your access point firmware is updated for optimal performance.

Are there any alternative products to the Cisco AIR-ANT2544V4M-R?

Yes, alternative products include different models within the Cisco antenna range, such as AIR-ANT2524DB-R for diverse installation needs.
