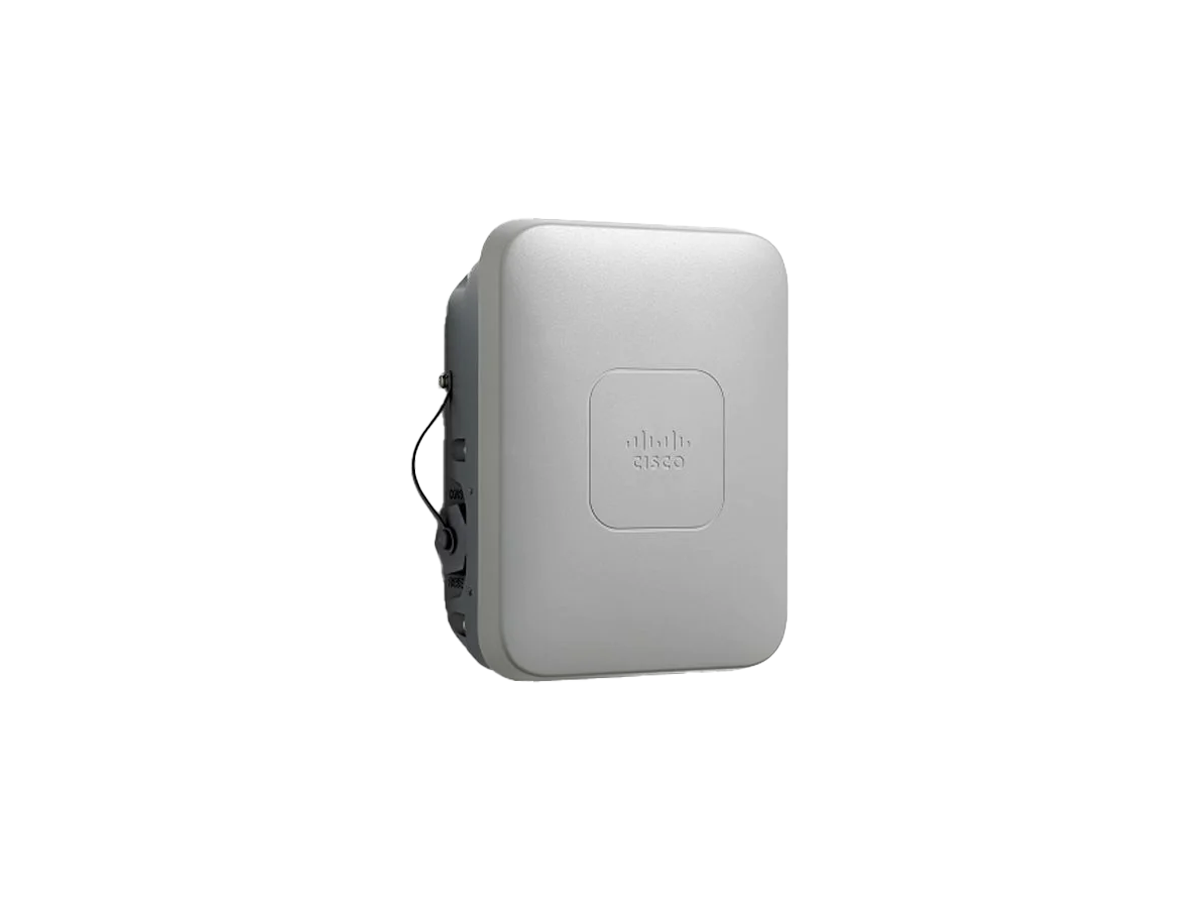

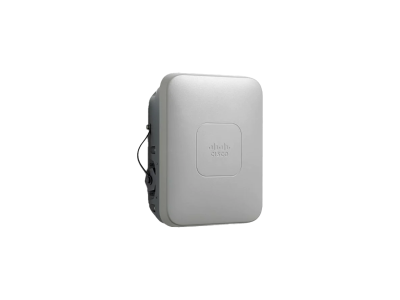

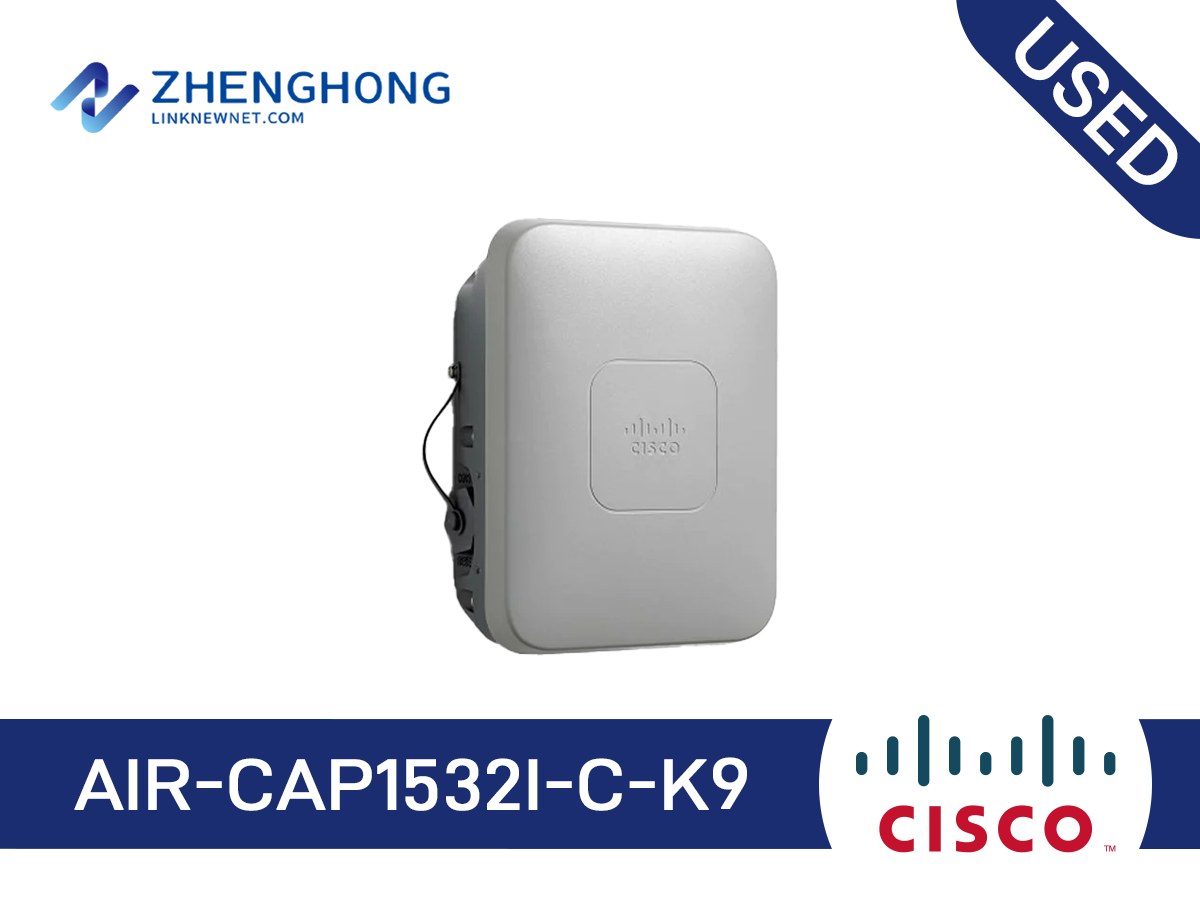

Cisco AIR-CAP1532I-C-K9 802.11n Low-Profile Outdoor AP, Internal Ant., C Reg Dom.

Model: AIR-CAP1532I-C-K9

Detail: Cisco AIR-CAP1532I-C-K9 802.11n Low-Profile Outdoor AP, Internal Ant., C Reg Dom.

Condition: USED

List Price: $973 Price: $584

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-CAP1532I-C-K9 Specifications
802.11n and Related Capabilities	● 15 30I: 3x3 MIMO with 3 spatial streams (2.4 GHz) and 2x3 MIMO with 2 spatial streams (5 GHz) ● 1530E: 2x2 MIMO with 2 spatial streams (2.4 GHz) and 2x2 MIMO with 2 spatial streams (5 GHz) ● 20-MHz (2.4 and 5 GHz) and 40-MHz (5 GHz only) channels ● PHY data rates up to 300 Mbps ● Packet aggregation: A-MPDU (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) ● Cyclic shift diversity (CSD) support
Data Rates Supported	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
	802.11b/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates (2.4 and 5 GHz):
	MCS Index	GI = 800 ns					GI = 400 ns
	MCS Index	20-MHz Rate (Mbps)		40-MHz Rate (Mbps)			20-MHz Rate (Mbps)		40-MHz Rate (Mbps)
	0	6.5		13.5			7.2		15
	1	13		27			14.4		30
	2	19.5		40.5			21.7		45
	3	26		54			28.9		60
	4	39		81			43.3		90
	5	52		108			57.8		120
	6	58.5		121.5			65		135
	7	65		135			72.2		150
	8	13		27			14.4		30
	9	26		54			28.9		60
	10	39		81			43.3		90
	11	52		108			57.8		120
	12	78		162			86.7		180
	13	104		216			115.6		240
	14	117		243			130		270
	15	130		270			144.4		300
	16	19.5					21.7
	17	39					43.3
	18	58.5					65
	19	78					86.7
	20	117					130
	21	156					173.3
	22	175.5					195
	23	195					216.7
	MCS 16-23 available on 1530I on 2.4 GHz only.
Frequency Range and 20-MHz Operating Channels	-C Domain: ● 2. 412 to 2.472 GHz; 13 channels ● 5.745 to 5.825 GHz; 5 channels
Note: These values vary by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum Number of Nonoverlapping Channels	2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3					5 GHz ● 802.11a: ◦ 20 MHz: 16 ● 802.11n: ◦ 20 MHz: 16 ◦ 40 MHz: 8
Note: These values vary by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Receive Sensitivity	1530I 802.11b (Complementary Code Keying [CCK]) -97 dBm @ 1 Mbps -94 dBm @ 2 Mbps -92 dBm @ 5.5 Mbps -90 dBm @ 11 Mbps		1530I 802.11g (non HT20) -95 dBm @ 6 Mbps -92 dBm @ 9 Mbps -90 dBm @ 12 Mbps -87 dBm @ 18 Mbps -84 dBm @ 24 Mbps -81 dBm @ 36 Mbps -78 dBm @ 48 Mbps -75 dBm @ 54 Mbps			1530E 802.11b (Complementary Code Keying [CCK]) -96 dBm @ 1 Mbps -93 dBm @ 2 Mbps -91 dBm @ 5.5 Mbps -89 dBm @ 11 Mbps		1530E 802.11g (non HT20) -93 dBm @ 6 Mbps -90 dBm @ 9 Mbps -88 dBm @ 12 Mbps -85 dBm @ 18 Mbps -82 dBm @ 24 Mbps -82 dBm @ 36 Mbps -76 dBm @ 48 Mbps -73 dBm @ 54 Mbps
2.4 GHz	1530I 802.11n (HT20) -95 dBm @ MCS0 -90 dBm @ MCS1 -87 dBm @ MCS2 -84 dBm @ MCS3 -81 dBm @ MCS4 -78 dBm @ MCS5 -75 dBm @ MCS6 -74 dBm @ MCS7 -90 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -73 dBm @ MCS13 -70 dBm @ MCS14 -69 dBm @ MCS15 -90 dBm @ MCS16 -85 dBm @ MCS17 -82 dBm @ MCS18 -79 dBm @ MCS19 -76 dBm @ MCS20 -73 dBm @ MCS21 -70 dBm @ MCS22 -69 dBm @ MCS23					1530E 802.11n (HT20) -93 dBm @ MCS0 -88 dBm @ MCS1 -85 dBm @ MCS2 -82 dBm @ MCS3 -79 dBm @ MCS4 -76 dBm @ MCS5 -73 dBm @ MCS6 -72 dBm @ MCS7 -90 dBm @ MCS8 -85 dBm @ MCS9 -82 dBm @ MCS10 -79 dBm @ MCS11 -76 dBm @ MCS12 -73 dBm @ MCS13 -70 dBm @ MCS14 -69 dBm @ MCS15
5 GHz	1530I 802.11a (non HT20) -94 dBm @ 6 Mbps -91 dBm @ 9 Mbps -89 dBm @ 12 Mbps -86 dBm @ 18 Mbps -83 dBm @ 24 Mbps -80 dBm @ 36 Mbps -77 dBm @ 48 Mbps -74 dBm @ 54 Mbps					1530E 802.11a (non HT20) -92 dBm @ 6 Mbps -89 dBm @ 9 Mbps -87 dBm @ 12 Mbps -84 dBm @ 18 Mbps -81 dBm @ 24 Mbps -78 dBm @ 36 Mbps -75 dBm @ 48 Mbps -72 dBm @ 54 Mbps
5 GHz	1530I 802.11n (HT20) -94 dBm @ MCS0 -89 dBm @ MCS1 -86 dBm @ MCS2 -83 dBm @ MCS3 -80 dBm @ MCS4 -77 dBm @ MCS5 -74 dBm @ MCS6 -73 dBm @ MCS7 -91 dBm @ MCS8 -86 dBm @ MCS9 -83 dBm @ MCS10 -80 dBm @ MCS11 -77 dBm @ MCS12 -74 dBm @ MCS13 -71 dBm @ MCS14 -70 dBm @ MCS15		1530I 802.11n (HT40) -91 dBm @ MCS0 -86 dBm @ MCS1 -83 dBm @ MCS2 -80 dBm @ MCS3 -77 dBm @ MCS4 -74 dBm @ MCS5 -71 dBm @ MCS6 -70 dBm @ MCS7 -88 dBm @ MCS8 -83 dBm @ MCS9 -80 dBm @ MCS10 -77 dBm @ MCS11 -74 dBm @ MCS12 -71 dBm @ MCS13 -68 dBm @ MCS14 -67 dBm @ MCS15			1530E 802.11n (HT20) -92 dBm @ MCS0 -87 dBm @ MCS1 -84 dBm @ MCS2 -81 dBm @ MCS3 -78 dBm @ MCS4 -75 dBm @ MCS5 -72 dBm @ MCS6 -71 dBm @ MCS7 -89 dBm @ MCS8 -84 dBm @ MCS9 -81 dBm @ MCS10 -78 dBm @ MCS11 -75 dBm @ MCS12 -72 dBm @ MCS13 -69 dBm @ MCS14 -68 dBm @ MCS15		1530E 802.11n (HT40) -89 dBm @ MCS0 -84 dBm @ MCS1 -81 dBm @ MCS2 -78 dBm @ MCS3 -75 dBm @ MCS4 -72 dBm @ MCS5 -69 dBm @ MCS6 -68 dBm @ MCS7 -86 dBm @ MCS8 -81 dBm @ MCS9 -78 dBm @ MCS10 -75 dBm @ MCS11 -72 dBm @ MCS12 -69 dBm @ MCS13 -66 dBm @ MCS14 -65 dBm @ MCS15
Maximum Transmit Power	2.4 GHz ● 802 .11b (CCK) ◦ 27 dBm with 2 antennas ◦ 29 dBm with 3 antennas ● 802.11g (non HT duplicate mode) ◦ 27 dBm with 2 antennas ◦ 29 dBm with 3 antennas ● 802.11n (HT20) ◦ 27 dBm with 2 antennas ◦ 29 dBm with 3 antennas				5 GHz ● 802.11a ◦ 27 dBm with 2 antennas ● 802.11n (HT20) ◦ 27 dBm with 2 antennas ● 802.11n (HT40) ◦ 27 dBm with 2 antennas
Maximum Transmit Power	Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Maximum Equivalent Isotropically Radiated Power (EIRP)	1530I: 32 dBm (2.4 and 5 GHz) 1530E: Tx power plus external antenna gain. Note: The maximum EIRP will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
3G/LTE/WiMAX Co‑Location	3G/LTE/WiMAX signal rejection: 33-45 dB. Refer to product documentation for specific details.
Interfaces	WAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45) LAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45) Management console port (RJ-45) with Reset button DC power input Multicolor LED
Dimensions (L x W x H)	1530I: 9 x 7 x 4 in. (23 x 17 x 10 cm) Volume: 179 cubic in. (2.9 liters) 1530E: 10 x 7 x 4 in. (26 x 17 x 10 cm) Volume: 186 cubic in. (3.0 liters)
Weight	1530I: 5.0 lb (2.3 kg) 1530E: 5.5 lb (2.5 kg) Wall/pole mounting bracket: 0.5 lb (0.2 kg) Tilt/horizontal mounting bracket: 2.4 lb (1.1 kg)
Environmental	Operating temperature: -30° to 65°C (-22° to 149°F) ambient; -30° to 55°C (-22° to 131°F) with solar loading (1200 W/m2) Storage temperature: -50° to 85°C (-58° to 185°F) Operating altitude: 10,000 ft (3048 m) Humidity: 0 - 100%, condensing Wind resistance: ● Up to 100 mph sustained winds ● Up to 140 mph wind gusts
Environmental Ratings	● IEC 60529 IP67 ● Icing protection MIL-STD-810F (13mm) ● Corrosion MIL-STD-810F (192 hours) ● Solar radiation EN 60068-2-5 (1200 W/m2) ● Vibration ANSI_C136.31-2001
Antenna Gain	● Integrated dual-band, mixed polarized omnidirectional antenna radome (1530i) ◦ 3 dBi (2.4 GHz), 5 dBi (5 GHz) ● External dual-band omnidirectional antennas ◦ AIR-ANT2547VG-N (4dBi, 2.4 GHz; 7 dBi, 5 GHz) ● External dual-band directional antennas ◦ AIR-ANT2588P3M-N= (8 dBi, 2.4 and 5 GHz) ● External single-band antennas ◦ 2.4 GHz ◦ AIR-ANT2450V-N (5 dBi, omni) ◦ AIR-ANT2480V-N (8 dBi, omni) ◦ AIR-ANT2413P2M-N= (13 dBi, dual polarized patch) ◦ 5 GHz ◦ AIR-ANT5180V-N (8 dBi, omni) ◦ AIR-ANT5114P2M-N= (14 dBi, dual polarized patch)
Powering Options	1530I/1530E ● 24 to 57 VDC ● Power over Ethernet (PoE) (802.3at or Cisco Universal PoE [UPoE])
Power Consumption	1530I: < 30 W 1530E: < 25 W
Compliance	Safety ● UL 60950, 2nd Edition ● CAN/CSA-C22.2 No. 60950, 2nd Edition ● IEC 60950, 2nd Edition ● EN 60950, 2nd Edition Immunity ● <= 5 mJ for 6kV/3kA @ 8/20 ms waveform ● ANSI/IEEE C62.41 ● EN61000-4-5 Level 4 AC Surge Immunity ● EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity ● EN61000-4-3 Level 4 EMC Field Immunity ● EN61000-4-2 Level 2 ESD Immunity ● EN60950 Overvoltage Category IV Radio approvals ● FCC Part 15.247, 15.407 ● FCC Bulletin OET-65C ● RSS-210 ● RSS-102 ● AS/NZS 4268.2003 ● ARIB-STD 66 (Japan) ● ARIB-STD T71 (Japan) ● EN 300 328 ● EN 301 893 EMI and susceptibility ● FCC part 15.107, 15.109 ● ICES-003 ● EN 301 489-1, -17 Security ● Wireless bridging/mesh ◦ X.509 digital certificates ◦ MAC address authentication ◦ Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP) ● Wireless access ◦ 802.11i, Wi-Fi Protected Access (WPA2), WPA ◦ 802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module -d (EAP-SIM), and Cisco LEAP ◦ VPN pass-through ◦ IP Security (IPsec) ◦ Layer 2 Tunneling Protocol (L2TP) ● MAC address filtering

Q&A

What common troubleshooting steps can resolve issues with the Cisco AIR-CAP1532I-C-K9?

Common troubleshooting steps include resetting the device, checking connections, and consulting the LED status indicators for error codes.

What accessories are available for the Cisco AIR-CAP1532I-C-K9?

Available accessories include mounting kits, weatherproof enclosures, and additional antenna options for tailored deployments.

How does the Cisco AIR-CAP1532I-C-K9 compare with similar products?

The AIR-CAP1532I-C-K9 stands out with its low-profile design and reliable performance at a lower price point compared to similar outdoor access points.

What is the regulatory domain "C" in the Cisco AIR-CAP1532I-C-K9?

The "C" in the model number indicates the regulatory domain, which specifies the compliance and frequency ranges suitable for certain regions.

How cost-effective is the 1532I Outdoor AP?

The AIR-CAP1532I-C-K9 offers robust features at a competitive price, making it ideal for cost-sensitive outdoor deployments.

What are the main characteristics of this AP?

The AIR-CAP1532I-C-K9 features 802.11n support, internal antennas, and a low-profile design, ideal for outdoor use.

What are the typical application scenarios for this AP?

This access point is well-suited for outdoor areas like campuses, parks, and stadiums due to its durability and coverage.

How do you install the AIR-CAP1532I-C-K9?

The AIR-CAP1532I-C-K9 can be easily mounted on walls, poles, or ceilings using the appropriate mounting hardware.

Does the device need regular upgrades?

Firmware upgrades may be necessary to enhance performance and security. Check Cisco's website for the latest updates.

Are there alternative products to the 1532I?

The Cisco AIR-AP1572I series can be considered as an alternative with additional features for higher capacity requirements.

What are common troubleshooting steps?

Check power connections, ensure firmware is up-to-date, and verify network settings to resolve common issues.

What accessories are available for this AP?

Accessories such as mounting kits, power injectors, and external antennas are available for enhanced deployment flexibility.

How does it compare to similar products?

The AIR-CAP1532I-C-K9 is cost-effective with a low-profile design, often preferred over bulkier models for discreet installations.

Is this AP suitable for extreme weather?

Yes, the AIR-CAP1532I-C-K9 is designed to withstand extreme weather conditions, making it ideal for outdoor installations.

How cost-effective is the Cisco AIR-CAP1532I-C-K9?

The Cisco AIR-CAP1532I-C-K9 offers robust outdoor wireless capabilities with 802.11n performance at a competitive price, making it cost-effective for large-scale deployments.

What are the key features of the Cisco AIR-CAP1532I-C-K9?

The Cisco AIR-CAP1532I-C-K9 features 802.11n capability, internal antennas, and a low-profile design suitable for outdoor use.

What are the typical application scenarios for the Cisco AIR-CAP1532I-C-K9?

The Cisco AIR-CAP1532I-C-K9 is ideal for outdoor environments such as campuses, stadiums, and public spaces requiring reliable wireless connectivity.

How do I install the Cisco AIR-CAP1532I-C-K9?

Installation involves mounting the unit on an appropriate structure and connecting it to the network using the provided Ethernet ports. Detailed instructions are available in the user manual.

Does the Cisco AIR-CAP1532I-C-K9 require software upgrades?

Yes, to ensure optimal performance and security, periodically check for and install firmware updates from Cisco's official website.

Are there alternative products to the Cisco AIR-CAP1532I-C-K9?

Yes, alternatives include the Cisco 1552E outdoor access point or the Cisco 1572EAC for higher performance needs.
