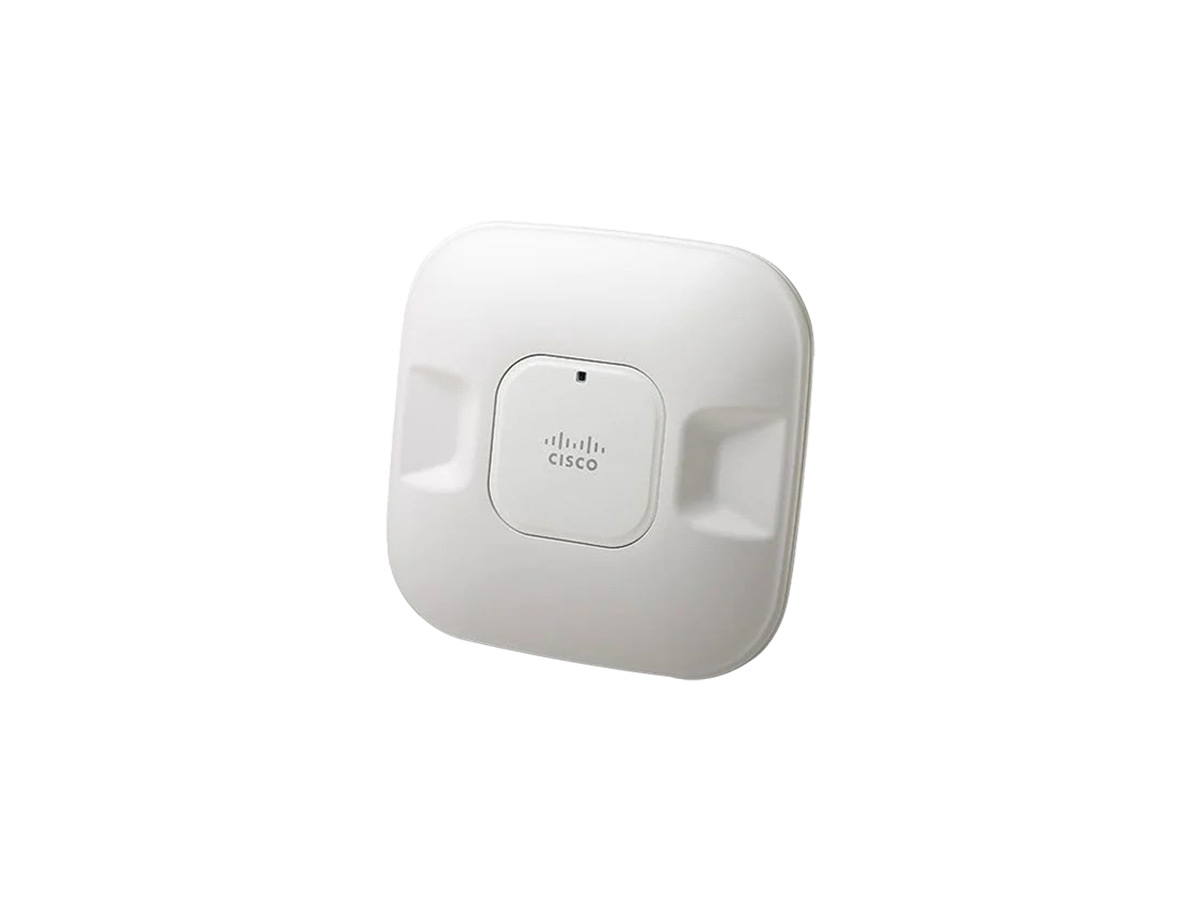

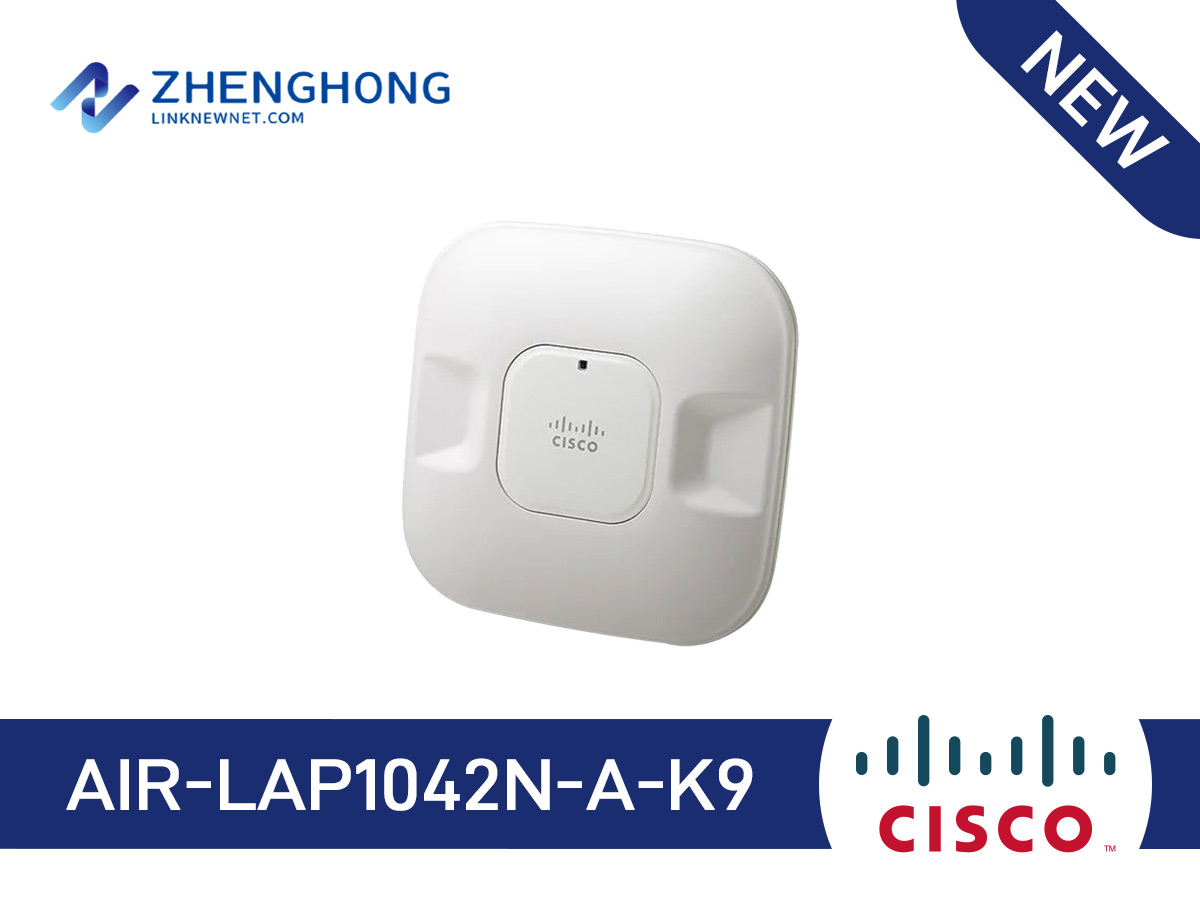

AIR-LAP1042N-A-K9 Cisco 1040 Series Access Point

Model: AIR-LAP1042N-A-K9

Detail: Cisco 1040 Access Point AIR-LAP1042N-A-K9 802.11a/g/n Fixed Unified AP; Int Ant; A Reg Domain

Condition: USED

List Price: $422 Price: $253

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-LAP1042N-A-K9 Specifications
802.11n Version 2.0 (and Related) Capabilities	● 2x3 Multiple-Input Multiple-Output (MIMO) with two spatial streams ● Maximal ratio combining (MRC) ● Legacy beamforming ● 20- and 40-MHz channels ● PHY data rates up to 300 Mbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) (Bin 5) ● Cyclic Shift Diversity (CSD) support
Maximum Number of Nonoverlapping Channels	2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3	5 GHz ● 802.11a: ◦ 20 MHz: 19 ● 802.11n: ◦ 20 MHz: 19 ◦ 40 MHz: 11
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum Transmit Power	2.4 GHz ● 802.11b (CCK) ◦ 28 dBm with 2 antennas ● 802.11g (non HT duplicate mode) ◦ 28 dBm with 2 antennas ● 802.11n (HT20) ◦ 28 dBm with 2 antennas	5 GHz ● 802.11a ◦ 28 dBm with 2 antennas ● 802.11n non -HT duplicate (802.11a duplicate) mode ◦ 28 dBm with 2 antennas ● 802.11n (HT20) ◦ 27 dBm with 2 antennas ● 802.11n (HT40) ◦ 27 dBm with 2 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated Antenna	● 2.4 GHz, Gain 4.0 dBi, horizontal beamwidth 360° ● 5 GHz, Gain 3 dBi, horizontal beamwidth 360°
Dimensions (W x L x H)	Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm)
Weight	2.3 lbs (1.04 kg)
Environmental	● Nonoperating (storage) temperature: -22 to 185°F (-30 to 85°C) ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (non-condensing)
System Memory	● 128 MB DRAM ● 32 MB flash
Input Power Requirements	● AP1140: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Powering Options	● 802.3af Ethernet Switch ● Cisco AP1140 Power Injectors (AIR-PWRINJ4=) ● Cisco AP1140 Local Power Supply (AIR-PWR-B=)
Warranty	Limited Lifetime Hardware Warranty

Q&A

What common troubleshooting steps are there for the Cisco AIR-LAP1042N-A-K9?

Check power and network cables, verify the configuration on the Cisco controller, and ensure firmware is up to date to troubleshoot common issues with the AIR-LAP1042N-A-K9.

What accessories are available for the Cisco 1040 Access Point?

Accessories include mounting kits, PoE injectors, and compatible power adapters to enhance the deployment flexibility of the AIR-LAP1042N-A-K9.

How does the AIR-LAP1042N-A-K9 compare with other similar products?

The AIR-LAP1042N-A-K9 offers a balance of performance and cost, competing well with other models like the Cisco 1140 and 1260 series in terms of coverage and reliability.

How can I maximize the performance of the Cisco 1040 Access Point?

To maximize performance, install the AIR-LAP1042N-A-K9 in optimal locations, update to the latest firmware, and configure it using the best practices outlined by Cisco.

Is the Cisco 1042 Access Point cost-effective?

Yes, the Cisco 1042 Access Point AIR-LAP1042N-A-K9 offers advanced features at a competitive price, making it ideal for small to medium-sized businesses.

What are the key features of the Cisco 1042 Access Point?

Key features include 802.11a/g/n support, fixed unified AP configuration, and internal antennas, providing robust wireless connectivity.

What is the primary application scenario for this Access Point?

The Cisco 1042 Access Point is ideal for enterprise environments, educational institutions, and small businesses needing reliable wireless coverage.

How do I install the Cisco 1042 Access Point?

The Cisco 1042 Access Point can be ceiling- or wall-mounted. Follow the installation guide for best results and ensure secure connections.

Does the Cisco 1042 Access Point need regular upgrades?

Firmware upgrades may be necessary to enhance security and performance. Check for updates from Cisco periodically.

Are there alternative products to the Cisco 1042 Access Point?

Yes, alternative products include the Cisco 1140 and 1240 series Access Points. Each offers varying features and capabilities.

How can I troubleshoot common issues with this Access Point?

Common troubleshooting steps include power cycling the device, checking network settings, and ensuring firmware is up-to-date.

What accessories are available for the Cisco 1042 Access Point?

Available accessories include mounting kits, power injectors, and external antennas to enhance deployment flexibility.

How does the Cisco 1042 compare to other similar products?

The Cisco 1042 offers a blend of performance and cost-efficiency, slightly behind higher-end models like Cisco 1140 in terms of advanced features.

Can this Access Point be used in high-density environments?

Yes, it can handle moderate to high-density environments but for extremely high-density scenarios, more advanced models like the Cisco 3500 series may be recommended.

How cost-effective is the Cisco 1040 Access Point?

The Cisco 1040 Access Point AIR-LAP1042N-A-K9 provides great value with its mix of performance, reliability, and affordability, making it an excellent choice for budget-conscious deployments.

What are the main features of the AIR-LAP1042N-A-K9?

The Cisco AIR-LAP1042N-A-K9 supports 802.11a/g/n, has internal antennas, and operates within the A-regulated domain, offering robust connectivity and coverage.

In what scenarios is the Cisco 1040 Access Point best used?

The Cisco 1040 Access Point is ideal for small to medium businesses, retail environments, and educational institutions needing reliable and secure wireless connectivity.

How do I install the Cisco AIR-LAP1042N-A-K9?

Install the Cisco AIR-LAP1042N-A-K9 by mounting it on a wall or ceiling, connecting to a power source, and configuring through the Cisco controller for seamless integration.

Does the Cisco 1040 Access Point need frequent upgrades?

The AIR-LAP1042N-A-K9 may require periodic firmware updates to enhance performance and security, but Cisco's unified architecture ensures minimal disruption.

Are there alternative products to the Cisco AIR-LAP1042N-A-K9?

Alternatives include the Cisco 1140 Access Point, offering similar features but with varying antenna configurations and performance characteristics.
