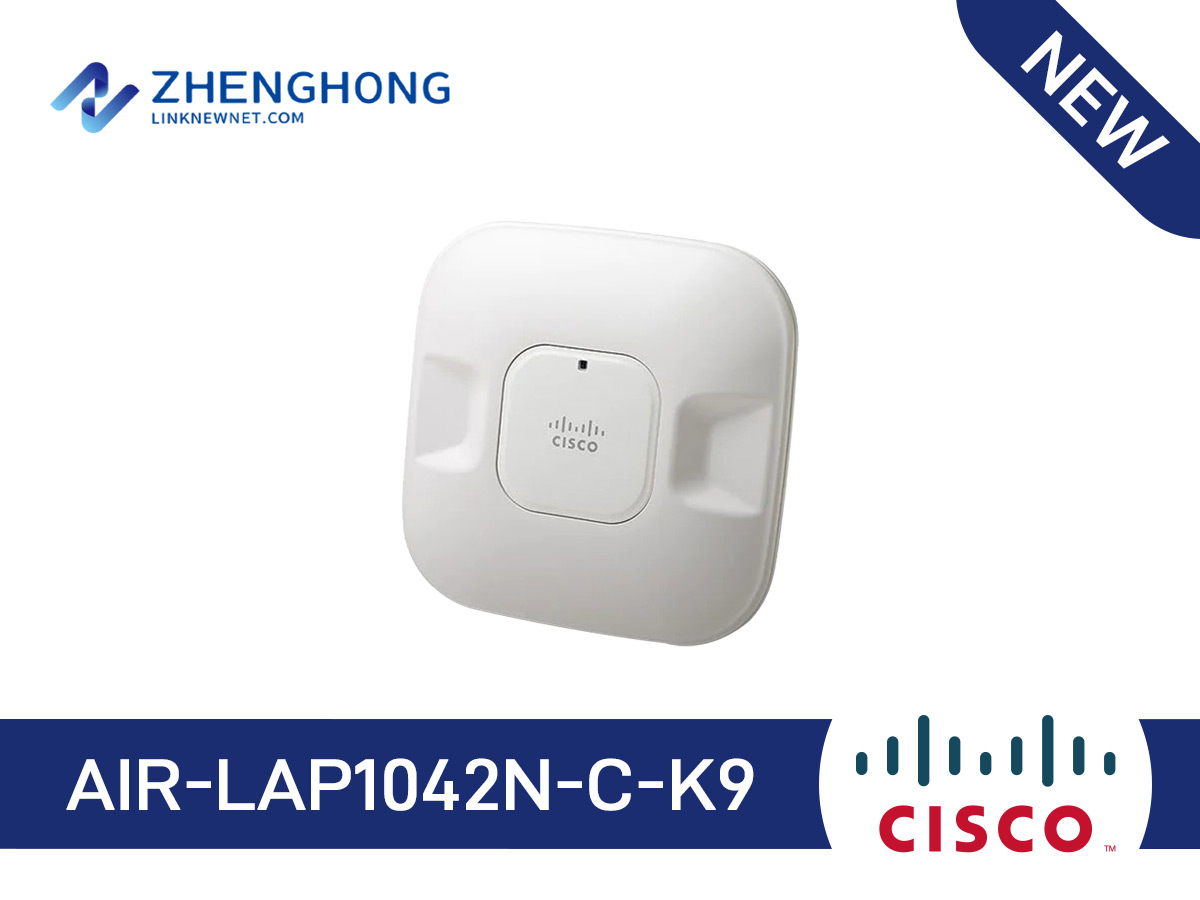

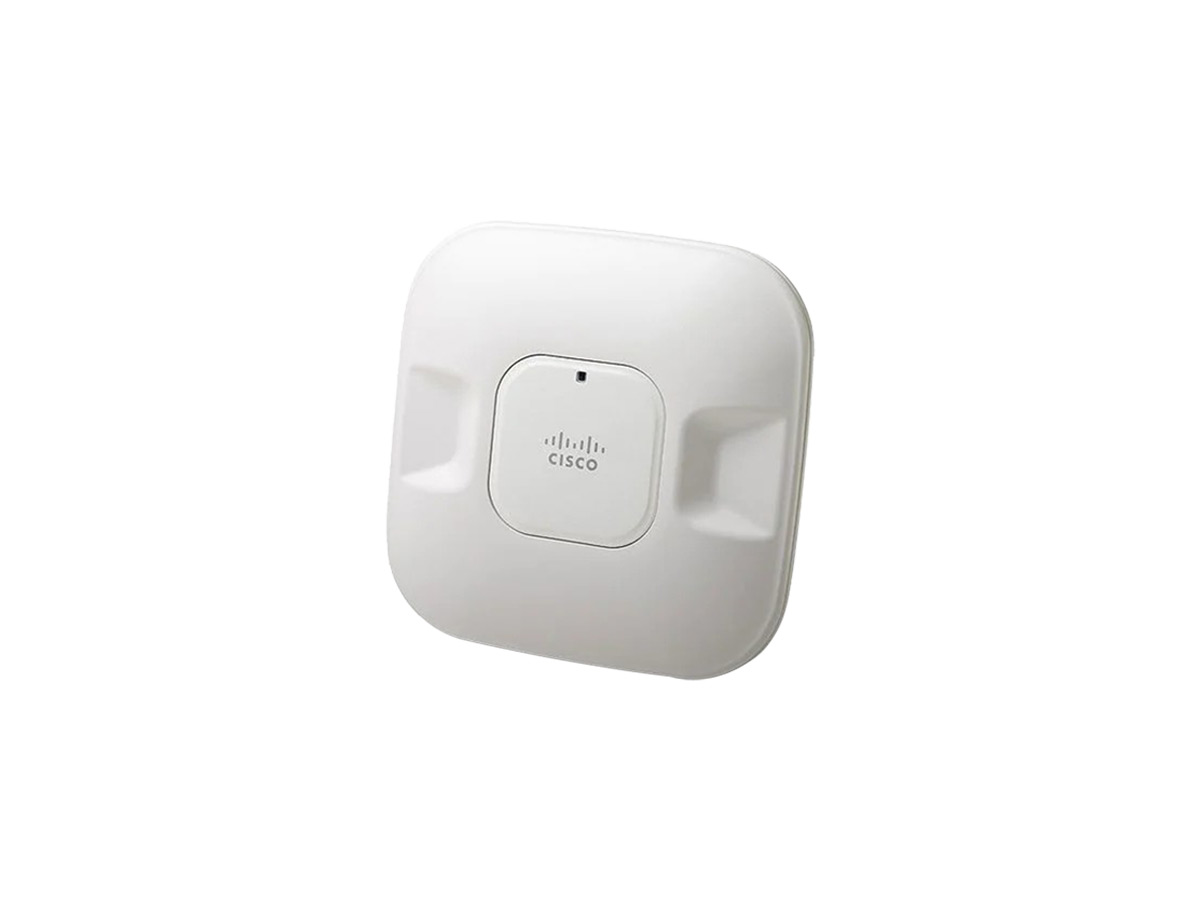

AIR-LAP1042N-C-K9 Cisco 1040 Series Access Point

Model: AIR-LAP1042N-C-K9

Detail: Cisco 1040 Access Point AIR-LAP1042N-C-K9 802.11a/g/n Fixed Unified AP; Int Ant; C Reg Domain

Condition: USED

List Price: $422 Price: $253

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-LAP1042N-C-K9 Specifications
802.11n Version 2.0 (and Related) Capabilities	● 2x3 Multiple-Input Multiple-Output (MIMO) with two spatial streams ● Maximal ratio combining (MRC) ● Legacy beamforming ● 20- and 40-MHz channels ● PHY data rates up to 300 Mbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) (Bin 5) ● Cyclic Shift Diversity (CSD) support
Maximum Number of Nonoverlapping Channels	2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3	5 GHz ● 802.11a: ◦ 20 MHz: 19 ● 802.11n: ◦ 20 MHz: 19 ◦ 40 MHz: 11
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum Transmit Power	2.4 GHz ● 802.11b (CCK) ◦ 28 dBm with 2 antennas ● 802.11g (non HT duplicate mode) ◦ 28 dBm with 2 antennas ● 802.11n (HT20) ◦ 28 dBm with 2 antennas	5 GHz ● 802.11a ◦ 28 dBm with 2 antennas ● 802.11n non -HT duplicate (802.11a duplicate) mode ◦ 28 dBm with 2 antennas ● 802.11n (HT20) ◦ 27 dBm with 2 antennas ● 802.11n (HT40) ◦ 27 dBm with 2 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated Antenna	● 2.4 GHz, Gain 4.0 dBi, horizontal beamwidth 360° ● 5 GHz, Gain 3 dBi, horizontal beamwidth 360°
Dimensions (W x L x H)	Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm)
Weight	2.3 lbs (1.04 kg)
Environmental	● Nonoperating (storage) temperature: -22 to 185°F (-30 to 85°C) ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (non-condensing)
System Memory	● 128 MB DRAM ● 32 MB flash
Input Power Requirements	● AP1140: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Powering Options	● 802.3af Ethernet Switch ● Cisco AP1140 Power Injectors (AIR-PWRINJ4=) ● Cisco AP1140 Local Power Supply (AIR-PWR-B=)
Warranty	Limited Lifetime Hardware Warranty

Q&A

Are there alternative products to the Cisco 1042 Access Point AIR-LAP1042N-C-K9?

Yes, alternative products include the Cisco 1140, Cisco 1240, or the newer Cisco 1700 series access points.

What accessories are available for the Cisco AIR-LAP1042N-C-K9?

Accessories include mounting kits, power injectors, and external antennas for specific installation needs.

How does the Cisco 1042 Access Point compare with the Cisco 1700 series?

While both provide robust wireless coverage, the Cisco 1700 series offers enhanced speeds and advanced features over the 1040 series.

Can the Cisco AIR-LAP1042N-C-K9 support high-density environments?

Yes, the AIR-LAP1042N-C-K9 supports high-density environments but might require additional units for optimal coverage.

How cost-effective is the 1040 Access Point?

The Cisco 1040 Access Point offers excellent performance at a competitive price, making it a cost-effective solution for small to medium-sized businesses.

What are the key features of the AIR-LAP1042N-C-K9?

The AIR-LAP1042N-C-K9 includes support for 802.11a/g/n, integrated antennas, and operates in the C regulatory domain.

What application scenarios are ideal for the AIR-LAP1042N-C-K9?

This access point is ideal for office environments, small businesses, and educational institutions requiring robust wireless connectivity.

How is the AIR-LAP1042N-C-K9 installed?

The AIR-LAP1042N-C-K9 can be ceiling or wall-mounted, and configuration is done through Cisco's unified management system.

Does the AIR-LAP1042N-C-K9 need software upgrades?

Cisco periodically releases firmware updates to improve performance and security, so it's advisable to check for updates regularly.

Are there alternative products to the AIR-LAP1042N-C-K9?

Alternatives include the Cisco 1140 and 1260 series access points, which offer different features and performance levels.

What common troubleshooting steps are there for the 1040 Access Point?

Common issues can often be resolved by checking the power supply, verifying network configurations, and ensuring firmware is up-to-date.

What accessories are available for the AIR-LAP1042N-C-K9?

Available accessories include mounting kits, power injectors, and external antennas for extended coverage.

How does the AIR-LAP1042N-C-K9 compare to other similar products?

Compared to similar products like the Cisco 1140 series, the 1040 offers a more budget-friendly solution with reliable performance.

How do I configure the AIR-LAP1042N-C-K9?

Configuration can be done via Cisco's wireless LAN controller, providing centralized management and simplified setup.

What are the key features of the Cisco 1042 Access Point AIR-LAP1042N-C-K9?

The Cisco 1042 Access Point AIR-LAP1042N-C-K9 supports 802.11a/g/n, has an internal antenna, and operates in the C regulatory domain.

Is the Cisco 1042 Access Point cost-effective for small businesses?

Yes, the Cisco 1042 Access Point AIR-LAP1042N-C-K9 offers a cost-effective solution with robust performance for small to medium-sized businesses.

What are the common applications for this Cisco 1042 Access Point?

The Cisco AIR-LAP1042N-C-K9 is ideal for office environments, educational institutions, and retail locations needing reliable wireless coverage.

How do I install the Cisco AIR-LAP1042N-C-K9 Access Point?

The Cisco AIR-LAP1042N-C-K9 can be easily installed by mounting it on a wall or ceiling and connecting it to a power source and network.

Does the Cisco AIR-LAP1042N-C-K9 require regular updates?

It's recommended to regularly check for firmware updates on the Cisco website to ensure the access point runs smoothly and securely.

What troubleshooting steps can I take if the device is not working properly?

Ensure the device is properly powered, check network connections, and verify firmware versions. Rebooting the device often resolves many issues.
