AIR-LAP1042N-E-K9|LinkNewNet

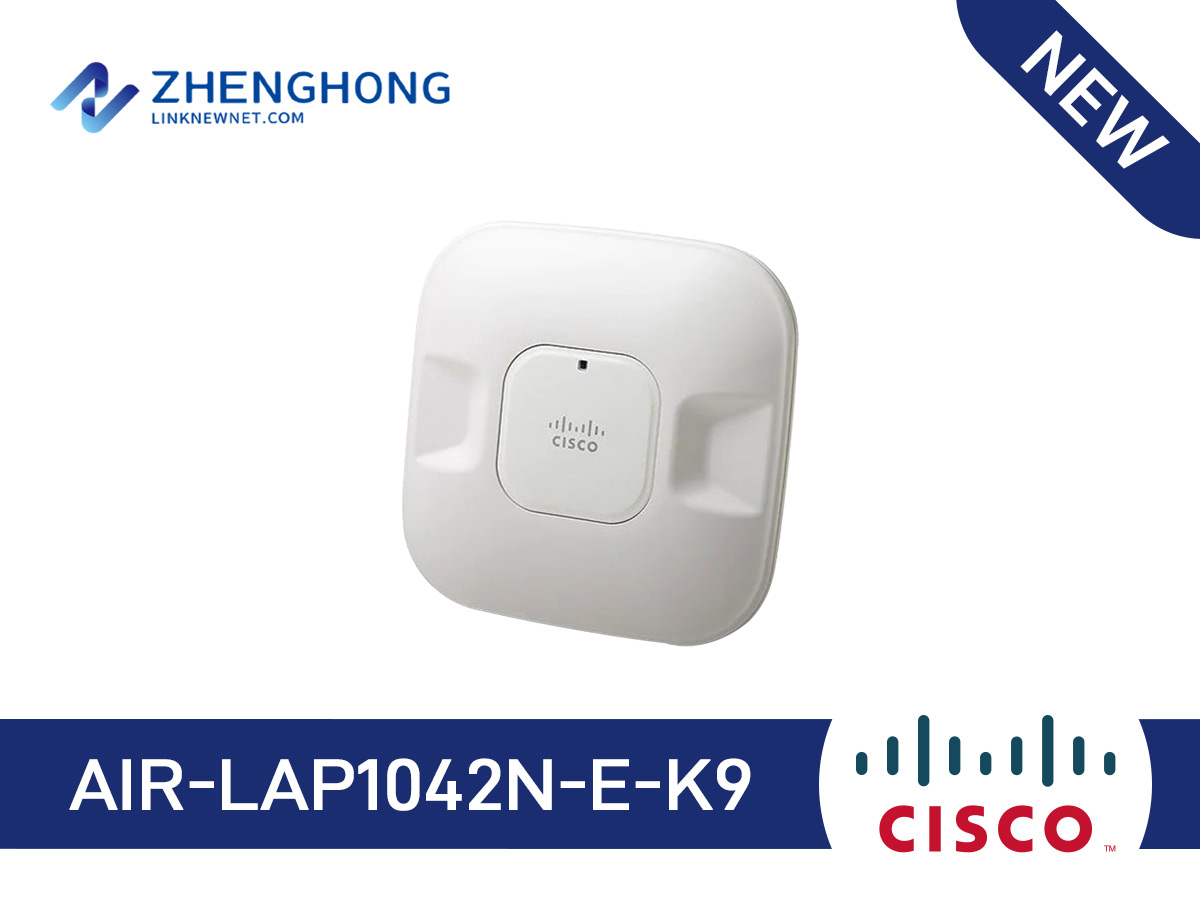

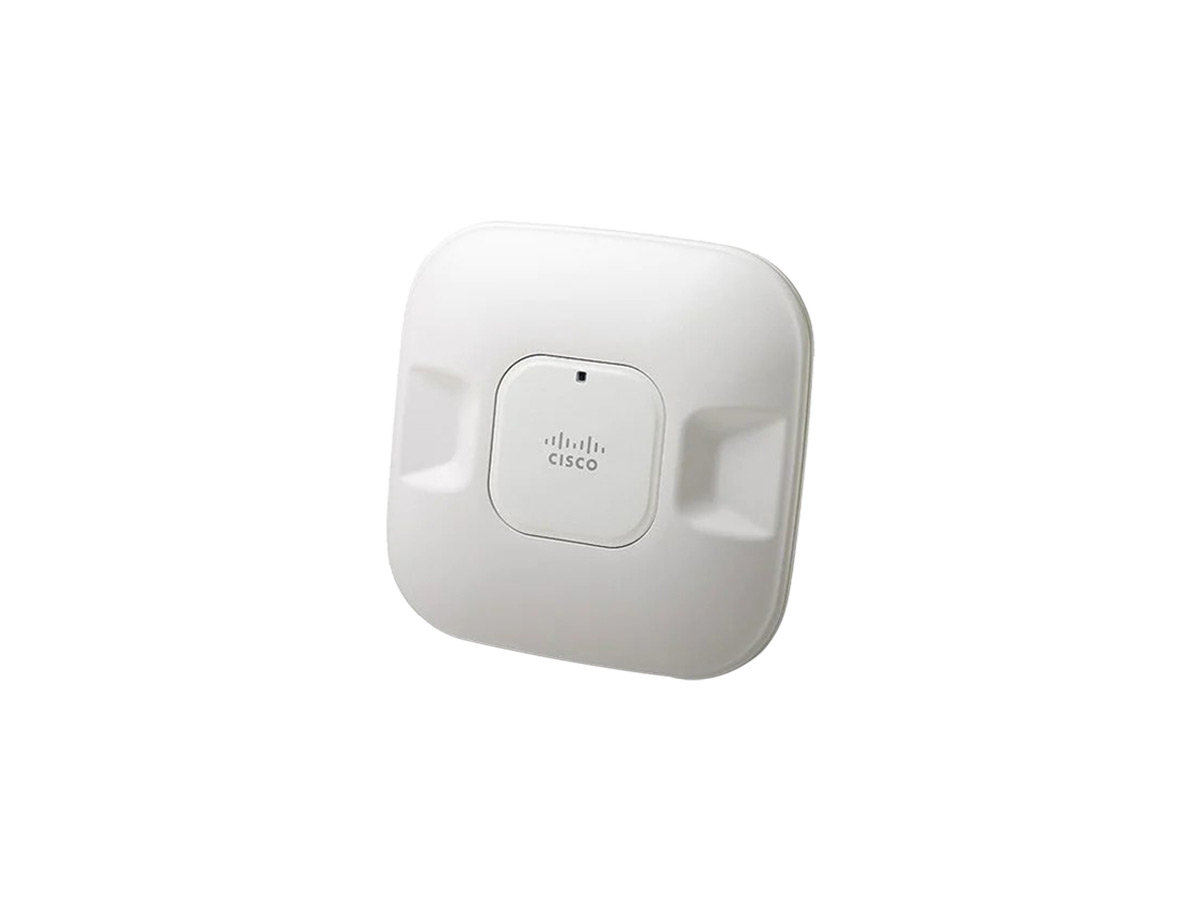

AIR-LAP1042N-E-K9 Cisco 1040 Series Access Point

Model: AIR-LAP1042N-E-K9

Detail: Cisco 1040 Access Point AIR-LAP1042N-E-K9 802.11a/g/n Fixed Unified AP; Int Ant; E Reg Domain

Condition: USED

List Price: $422 Price: $253

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-LAP1042N-E-K9 Specifications
802.11n Version 2.0 (and Related) Capabilities	● 2x3 Multiple-Input Multiple-Output (MIMO) with two spatial streams ● Maximal ratio combining (MRC) ● Legacy beamforming ● 20- and 40-MHz channels ● PHY data rates up to 300 Mbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) (Bin 5) ● Cyclic Shift Diversity (CSD) support
Maximum Number of Nonoverlapping Channels	2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3	5 GHz ● 802.11a: ◦ 20 MHz: 19 ● 802.11n: ◦ 20 MHz: 19 ◦ 40 MHz: 11
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum Transmit Power	2.4 GHz ● 802.11b (CCK) ◦ 28 dBm with 2 antennas ● 802.11g (non HT duplicate mode) ◦ 28 dBm with 2 antennas ● 802.11n (HT20) ◦ 28 dBm with 2 antennas	5 GHz ● 802.11a ◦ 28 dBm with 2 antennas ● 802.11n non -HT duplicate (802.11a duplicate) mode ◦ 28 dBm with 2 antennas ● 802.11n (HT20) ◦ 27 dBm with 2 antennas ● 802.11n (HT40) ◦ 27 dBm with 2 antennas
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated Antenna	● 2.4 GHz, Gain 4.0 dBi, horizontal beamwidth 360° ● 5 GHz, Gain 3 dBi, horizontal beamwidth 360°
Dimensions (W x L x H)	Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm)
Weight	2.3 lbs (1.04 kg)
Environmental	● Nonoperating (storage) temperature: -22 to 185°F (-30 to 85°C) ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (non-condensing)
System Memory	● 128 MB DRAM ● 32 MB flash
Input Power Requirements	● AP1140: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Powering Options	● 802.3af Ethernet Switch ● Cisco AP1140 Power Injectors (AIR-PWRINJ4=) ● Cisco AP1140 Local Power Supply (AIR-PWR-B=)
Warranty	Limited Lifetime Hardware Warranty

Q&A

What accessories are available for AIR-LAP1042N-E-K9?

Accessories include mounting kits, PoE injectors, and additional external antennas if needed.

How does the Cisco 1040 Access Point compare to the 1140 Series?

The 1140 Series offers higher throughput and more advanced features than the 1040 Series, suited for larger deployments.

What is the coverage area of the AIR-LAP1042N-E-K9?

It covers an area sufficient for small to medium-sized office spaces, typically within a 50-75 meter range.

How can I troubleshoot connectivity issues with the AIR-LAP1042N-E-K9?

Ensure firmware is up to date, check physical connections, and verify configuration settings in the controller.

How cost-effective is the Cisco 1040 Access Point?

The Cisco 1040 Access Point AIR-LAP1042N-E-K9 offers high performance at a competitive price, suitable for budget-conscious deployments.

What are the main features of the AIR-LAP1042N-E-K9?

The AIR-LAP1042N-E-K9 features 802.11a/g/n support, internal antennas, and is designed for the E regulatory domain.

What are the common application scenarios for this access point?

The Cisco 1040 Access Point is ideal for small to medium enterprises needing reliable wireless connectivity.

How do you install the AIR-LAP1042N-E-K9?

Simply mount the access point on a ceiling or wall and connect it to your network using Ethernet cables.

Does the Cisco 1040 Access Point need regular upgrades?

Yes, it is recommended to keep the firmware updated to ensure optimal performance and security.

Are there alternative products to the AIR-LAP1042N-E-K9?

Alternatives include other Cisco access points like the AIR-LAP1142N-E-K9 which offers similar features with additional enhancements.

What accessories are available for the Cisco 1040 Access Point?

Accessories include mounting brackets and power injectors to assist in installation and power management.

How does the AIR-LAP1042N-E-K9 compare with similar products?

Compared to the AIR-LAP1142N-E-K9, the 1042N offers similar features but at a lower cost, making it more cost-effective for smaller deployments.

What is a common troubleshooting step for the Cisco 1040 Access Point?

Reset the access point to factory settings and reconfigure it if you encounter connectivity issues.

Do I need a controller to manage the AIR-LAP1042N-E-K9?

Yes, this model is designed to work with a Cisco WLAN controller for unified management.

How cost-effective is the AIR-LAP1042N-E-K9 for small businesses?

This Cisco 1040 Access Point provides an excellent balance between performance and cost, making it ideal for small businesses.

What are the main features of the Cisco 1040 Access Point?

The Cisco 1040 Access Point supports 802.11a/g/n, comes with an integrated antenna, and operates in the E regulatory domain.

What are common application scenarios for the AIR-LAP1042N-E-K9?

Suitable for small to medium-sized offices, providing stable wireless connectivity for everyday business applications.

How do I install the Cisco 1040 Access Point AIR-LAP1042N-E-K9?

The installation involves mounting the access point, connecting it to a PoE switch, and configuring it via the controller.

Does the AIR-LAP1042N-E-K9 need firmware upgrades?

Yes, it is advisable to check for firmware updates regularly to ensure optimal performance and security.

Are there alternative products to the Cisco 1040 Access Point?

Yes, alternatives include the Cisco 1140 Access Point and the Cisco 1200 Series Access Points.

What accessories are available for AIR-LAP1042N-E-K9?

Accessories include mounting kits, PoE injectors, and additional external antennas if needed.

How does the Cisco 1040 Access Point compare to the 1140 Series?

The 1140 Series offers higher throughput and more advanced features than the 1040 Series, suited for larger deployments.

What is the coverage area of the AIR-LAP1042N-E-K9?

It covers an area sufficient for small to medium-sized office spaces, typically within a 50-75 meter range.

How can I troubleshoot connectivity issues with the AIR-LAP1042N-E-K9?

Ensure firmware is up to date, check physical connections, and verify configuration settings in the controller.
