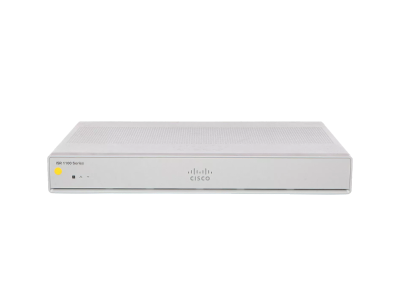

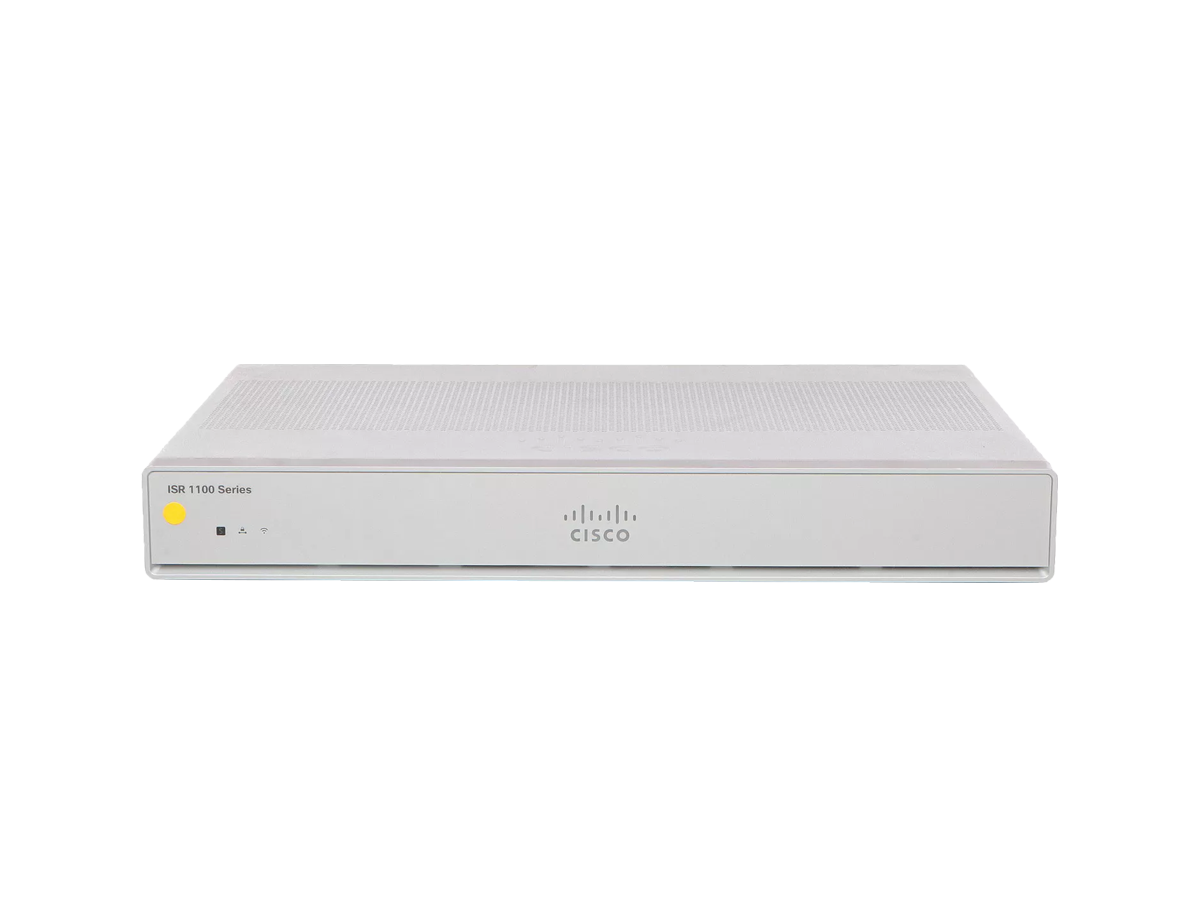

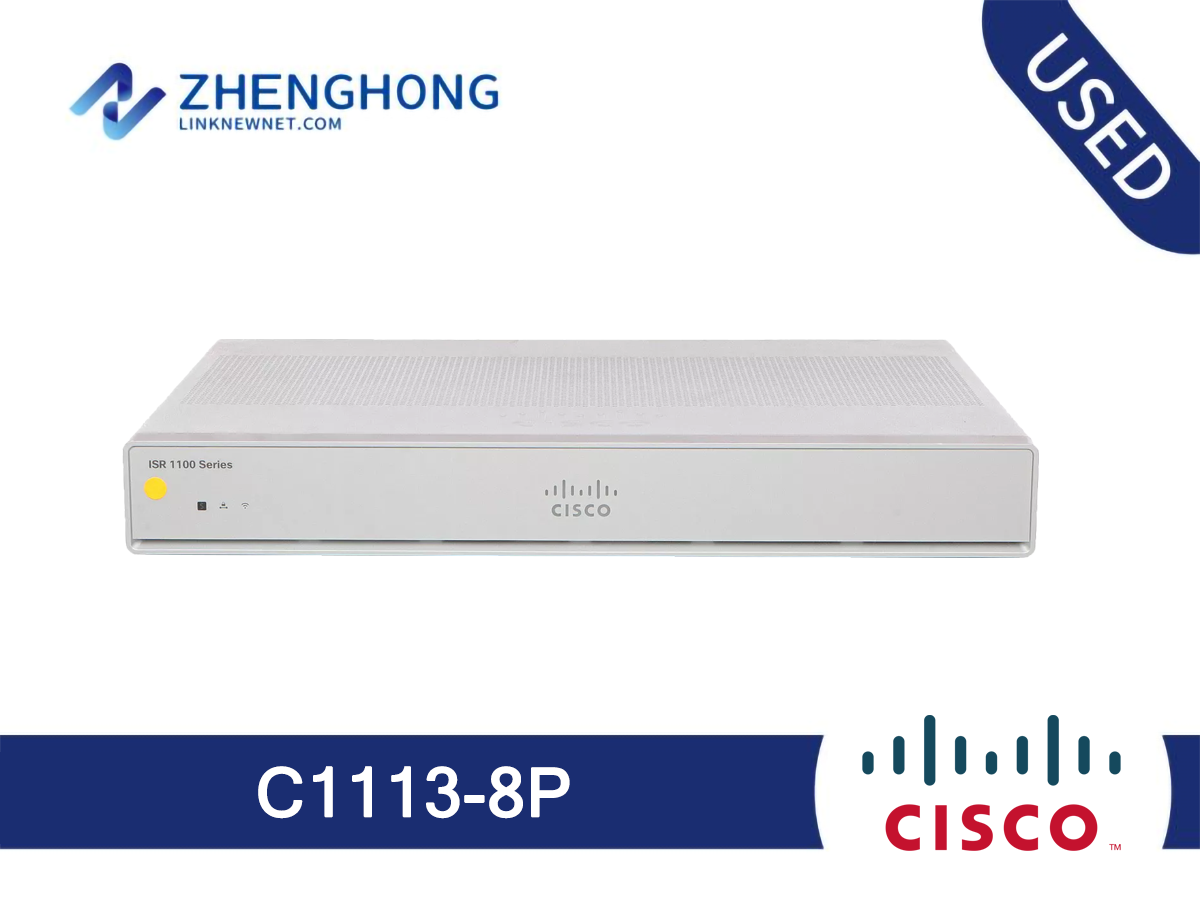

C1113-8P - Cisco Router ISR 1100 Series Overview
C1113-8P - Cisco Router ISR 1100 Series is a genuine edge and wide-area routing product from Cisco, a global name in networking whose platforms are used by enterprises, service providers and data-center operators alike. Belonging to the Cisco Router ISR 1100 Series family, the C1113-8P unit is built to the original factory specification, so it integrates with existing Cisco deployments predictably and behaves exactly as the platform documentation describes. In the network, it is deployed as a standalone unit or as part of a larger managed network, following the standard operating procedures of the platform.
From a specification standpoint, 150 W PoE budget. These are the original factory figures for this model, giving administrators a clear picture of what the unit can deliver before it enters service. Standard mounting, cabling and management practices apply, so deployment follows the same procedures as other Cisco hardware already running in the environment.
Typical deployments include branch and campus WAN connectivity, service-provider edge and MPLS deployments, and secure remote-site interconnect. Organizations commonly source it for refresh programs, capacity expansion and spares management, keeping a tested unit on hand so outages stay short and replacements are predictable. The factory detail for this unit reads: “ISR 1100 G.FAST GE SFP Ethernet Router”. This makes it a practical choice when original-spec hardware is required at a predictable cost.
Every unit at LinkNewNet is inspected and tested before dispatch, and stock is graded, cleaned and verified for correct operation, including port status, console access and firmware state. Our warranty coverage and responsive technical support protect the purchase after it arrives, and our team can confirm revision levels and software compatibility before you order. For volume requirements we also offer configuration checks and staged delivery options.
Contact our sales team for current availability, lead time and shipping options for the C1113-8P. We respond quickly with stock status and a firm quote, so you can plan the refresh or expansion with confidence.
Key Specifications
Applications
Enterprise WAN
Branch and campus routing with advanced services.
Service Provider
Edge routing for ISP and MPLS deployments.
Data Center
Interconnect core and aggregation layers reliably.
Buying a Pre-Owned C1113-8P
Verify the unit is tested, firmware confirmed, and condition documented. Every unit is fully tested and warranty covered. Contact our team for current stock and availability.
C1113-8P Specification | |
Description | ISR 1100 G.FAST with GE SFP Ethernet Router |
Dimensions (H x W x D) | 1.75 x 12.7 x 9.03 in. (42 x 323 x 230mm) |
AC Input Power | |
Input voltage | Universal 100 to 240 VAC |
Frequency | 50-60 Hz |
Maximum output power | 66W (default) |
Output voltages | 12 VDC |
PoE and PoE+ | Single 150W power supply required for Cisco 1100-8P series router |
External output voltage | 48 VDC |
Ports | |
GE | N/A |
GE/SFP combo | 1 |
ADSL2/VDSL2+ | 1 G.FAST (Annex A) |
GE | 8 |
PoE | 4 |
PoE+ | 2 |
Integrated USB 3.0 AUX/console | Yes |
Default and maximum DRAM | 4GB |
Default and maximum flash | 4GB |
Approvals and compliance | Emission 47 CFR Part 15
CISPR 32 Edition 2 EN 300 386 V1.6.1 EN 55032:2012/ AC:2013 EN 55032:2015 EN61000-3-2 2014 EN61000-3-3: 2013 ICES-003 ISSUE 6:2016 KN 32: 2015 V-2/2015.04 V-3/2015.04 TCVN 7189: 2009 CNS13438: 2006 IEC 60950-1 EN 60950-1 UL 60950-1 CSA C22.2 No. 60950-1 Immunity CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003 |
Environmental | |
Operating humidity | 10% to 85% relative humidity (noncondensing) |
Operating temperature | 32° to 104°F (0° to 40°C) |
Transportation and Storage | |
Nonoperating temperature | -4° to 149°F (-0° to 65°C) |
Nonoperating humidity | 5 to 95% relative humidity (noncondensing) |
Nonoperating altitude | 0 to 15,000 ft (0 to 4570m) |
C1113-8P - Deployment Notes
This C1113-8P router serves branch, edge, or WAN-aggregation roles depending on the interface mix and forwarding capacity of the specific SKU. Verify the interface types (GE, 10GE, SFP, WAN), memory, and module slots that this variant provides against your deployment topology.
When planning a refresh, confirm the software feature set (base, advanced, security) applicable to this SKU and the licensed throughput. Our team can confirm software state and hardware revision before dispatch.
Each C1113-8P unit is inspected, tested and verified before leaving our facility, including interface operation, console access, and firmware state. Contact us for volume pricing and staged delivery options.
C1113-8P - Deployment Notes
This C1113-8P router serves branch, edge, or WAN-aggregation roles depending on the interface mix and forwarding capacity of the specific SKU. Verify the interface types (GE, 10GE, SFP, WAN), memory, and module slots that this variant provides against your deployment topology.
When planning a refresh, confirm the software feature set (base, advanced, security) applicable to this SKU and the licensed throughput. Our team can confirm software state and hardware revision before dispatch.
Each C1113-8P unit is inspected, tested and verified before leaving our facility, including interface operation, console access, and firmware state. Contact us for volume pricing and staged delivery options.
C1113-8P - Cisco Series Notes
This listing is part of the Cisco enterprise networking product family, sourced and tested by LinkNewNet for enterprise deployment. Cisco router is positioned at the WAN edge, branch, or service-provider aggregation point. It provides routing, VPN, QoS and security services, and integrates with Cisco IOS-XE / IOS-XR management.
Deployment guidance: When planning this C1113-8P unit into a network, confirm the software image (IOS/IOS-XE/NX-OS) required, the power and cooling profile, and the upstream/downstream interface types that match your existing infrastructure. For a like-for-like refresh, match the feature set of the units already in service so management and automation behave consistently.
Our Cisco reconditioning process: Every pre-owned Cisco unit at LinkNewNet passes a documented reconditioning flow before dispatch - visual inspection, internal cleaning, firmware verification, port-by-port testing, and configuration reset to factory defaults. This ensures the unit you receive operates reliably and integrates cleanly with your existing Cisco management tools.
Related models in this family: C1121-4P, C1121-4PLTEP, C1117-4P, C1161X-8PLTEP, C1111-4PLTELA. Compare specifications to confirm the right port density, feature set and uplink options for your deployment.
Model code: P = PoE (Power over Ethernet) support - this suffix indicates the feature set, power, or regulatory variant of the C1113-8P, which affects software licensing and regional compliance.
