Product Code | N3K-C3548P-10GX |
Enclosure Type | 1 RU |
Switching Capacity | 960-Gbps |
Forwarding Rate | 720 Mpps |
Configurable Maximum Transmission Units (MTUs) | Up to 9216 bytes (jumbo frames) |
Ports | 48 x fixed SFP+ ports (1 or 10 Gbps) 1 x 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type 1 x 10/100/1000-Mbps management port 1 x RS-232 serial console port 2 x USB ports |
Number of power supplies | 2 |
Typical operating power | 112W |
Dimensions (H x W x D) | 4.36 x 43.9 x 46.7 cm |
Net Weight | 7.9 Kg |
| N3K-C3548P-10GX | |
| Product list | |
| Product code | N3K-C3548P-10GX |
| Power cable | No |
| Button | No |
| Product parameters | |
| Port | 48 |
| Port Type | SFP+ |
| Ethernet Technology | 10 Gigabit Etherne Gigabit Ethernett |
| Network Technology | 10GBase-T 10/100/1000Base-T |
| Layer Supported | 3 |
| Flash Memory | 2 GB |
| Management | RMON VLAN QoS DHCP MIB II CLI Telnet Syslog SNMP v1, v2, and v3 |
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |

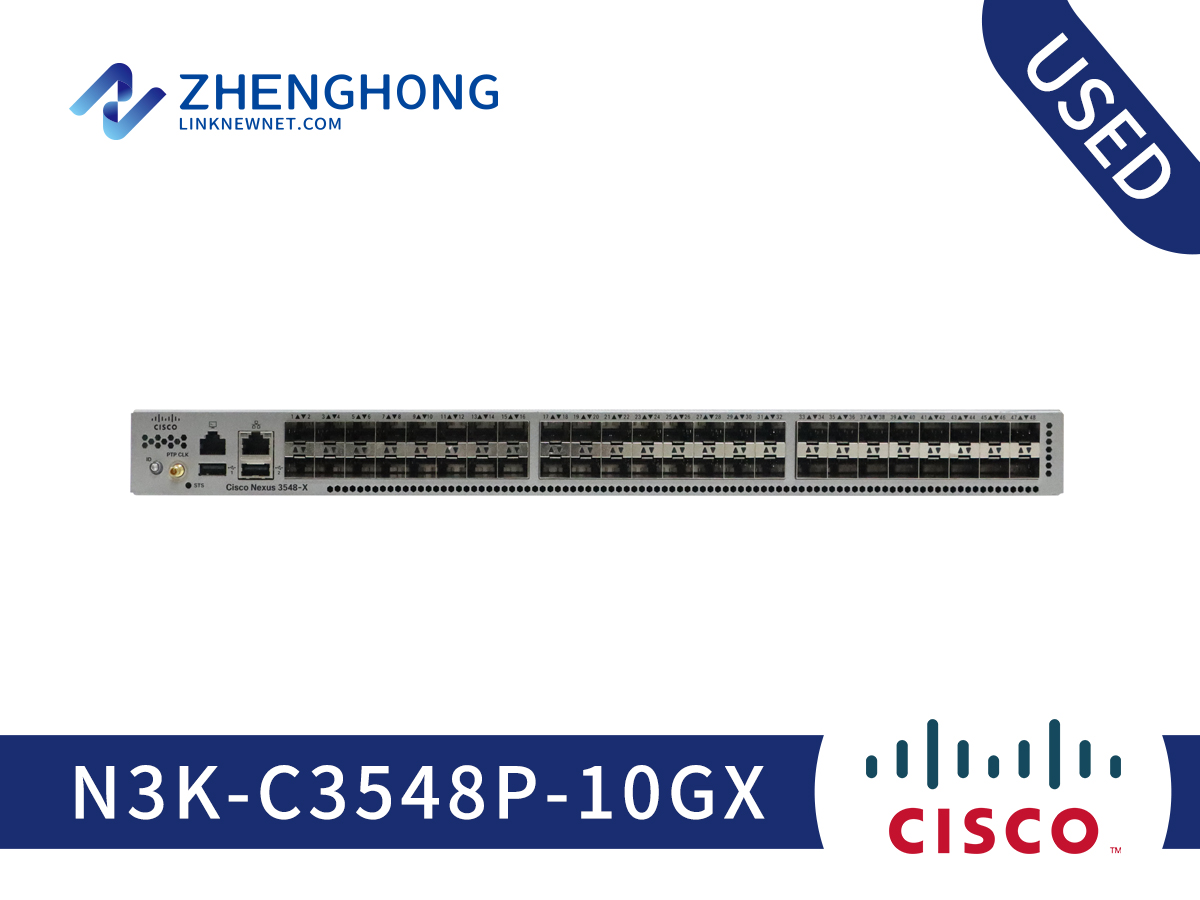

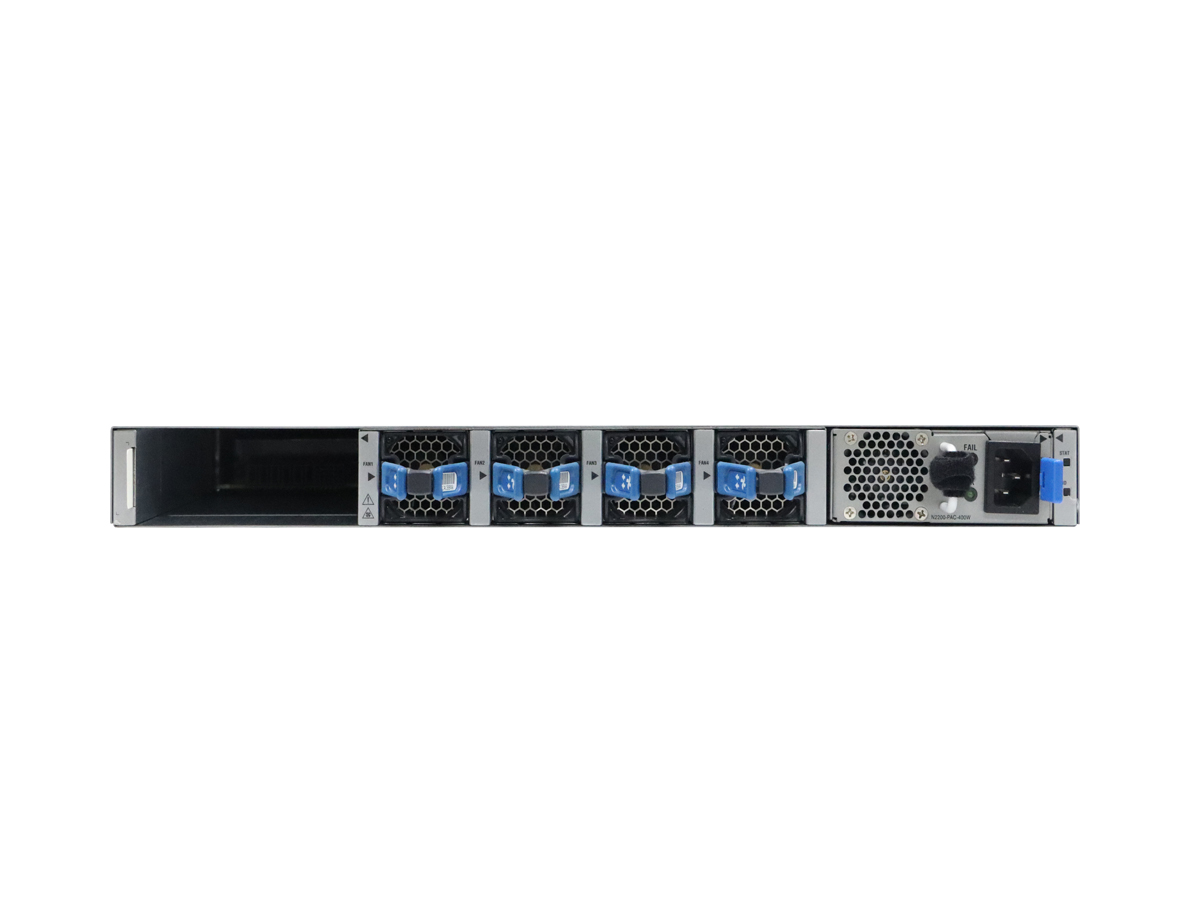

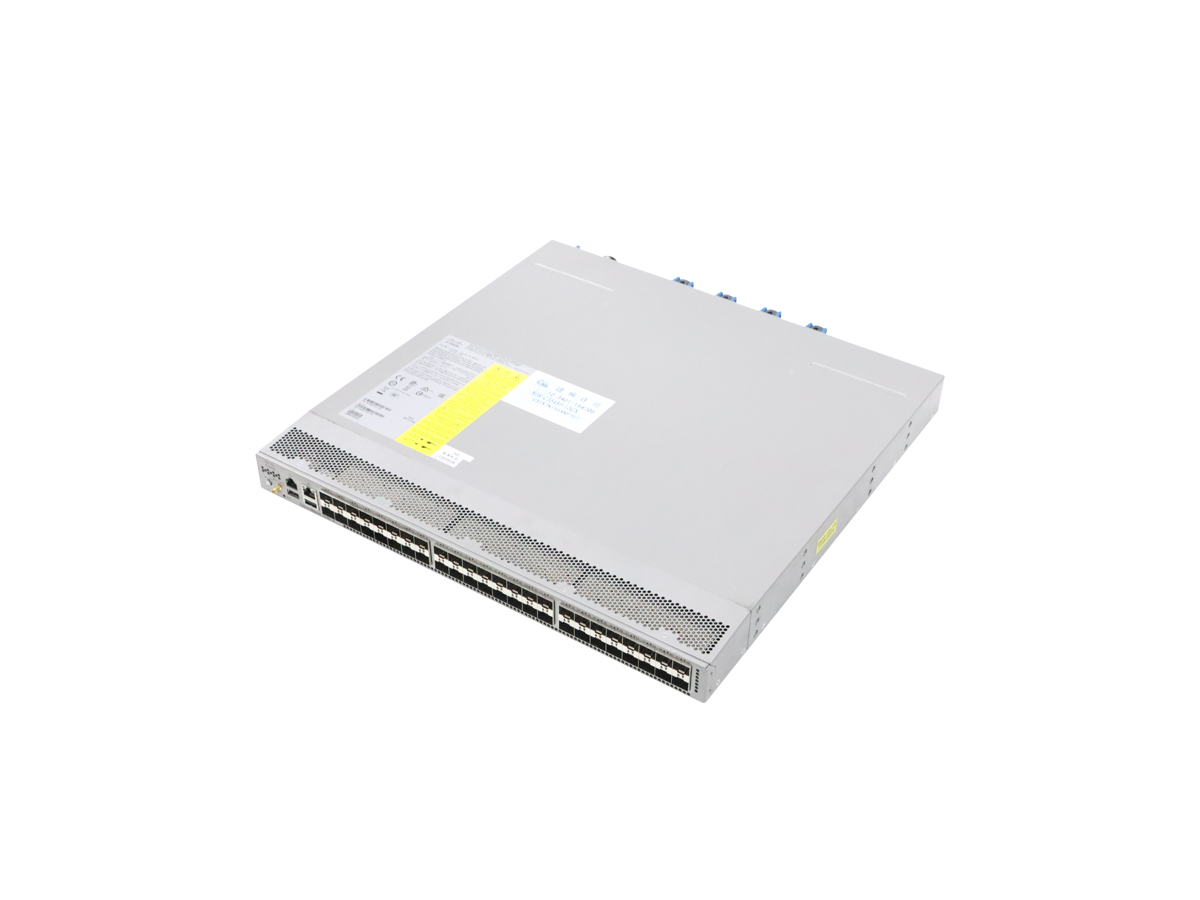

| Introduction | The Cisco Nexus 3548P-10GX (N3K-C3548P-10GX) is 1 rack unit (RU) switch with 48 fixed 1- and 10-Gigabit Ethernet small form-factor pluggable (SFP+) ports, 1 fixed 10/100/1000 management port, 1 console port, and 2 USB ports. This switch supports both port-side exhaust and port-side intake airflow schemes. It requires one AC or DC power supply for operations, but it can have a second power supply for redundancy. |
| Power Device | |
| Power Source | Power Supply |
| Max Supported Qty | 2 |
| Input Voltage | 100 V AC 240 V AC |
| Physical specifications | |
| Width | 17.3 in |
| Height | 1.7 in |
| Depth | 18.4 in |
| Weight | 17.42 lbs |
| Environmental Parameters | |
| Min Temperature | 32 °F |
| Max Temperature | 104°F |
| Humidity Operating | 10 - 85% (non-condensing) |
