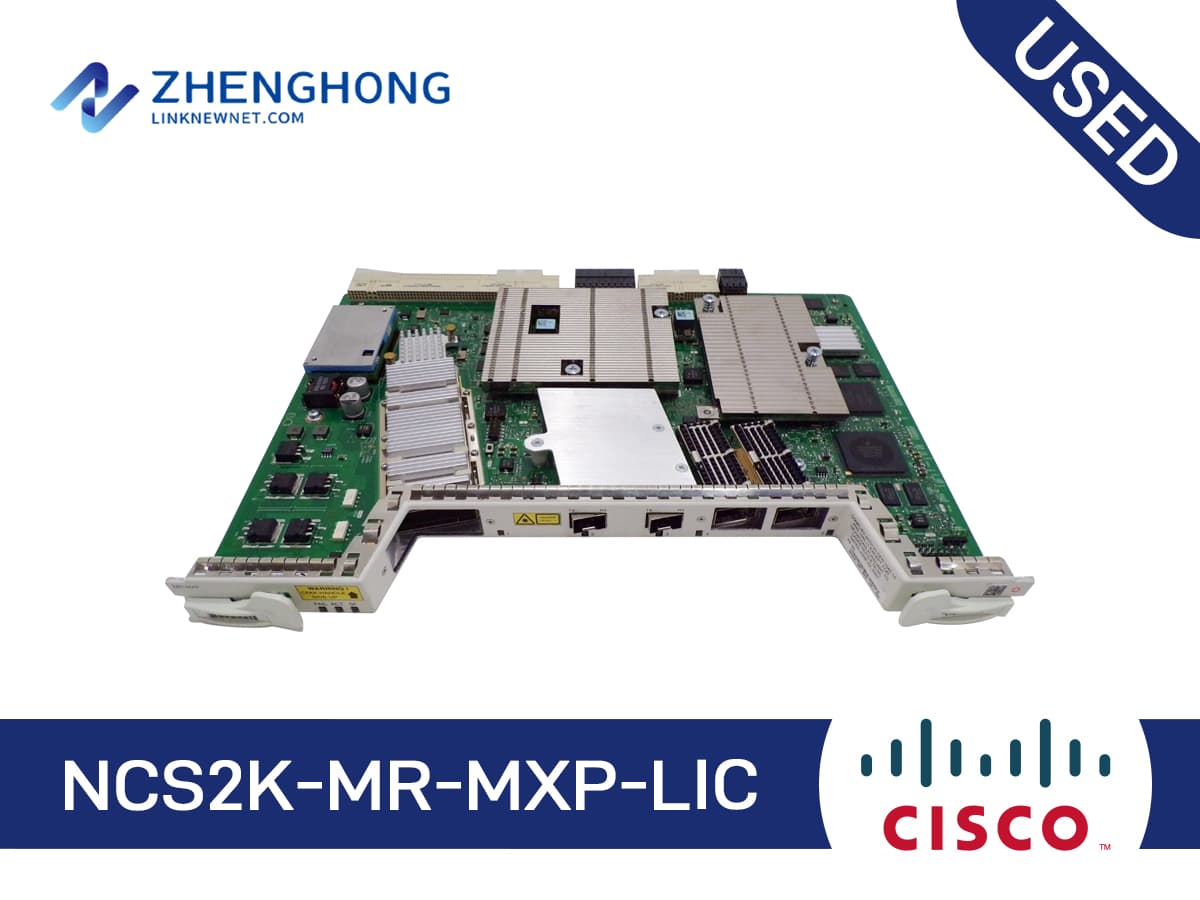

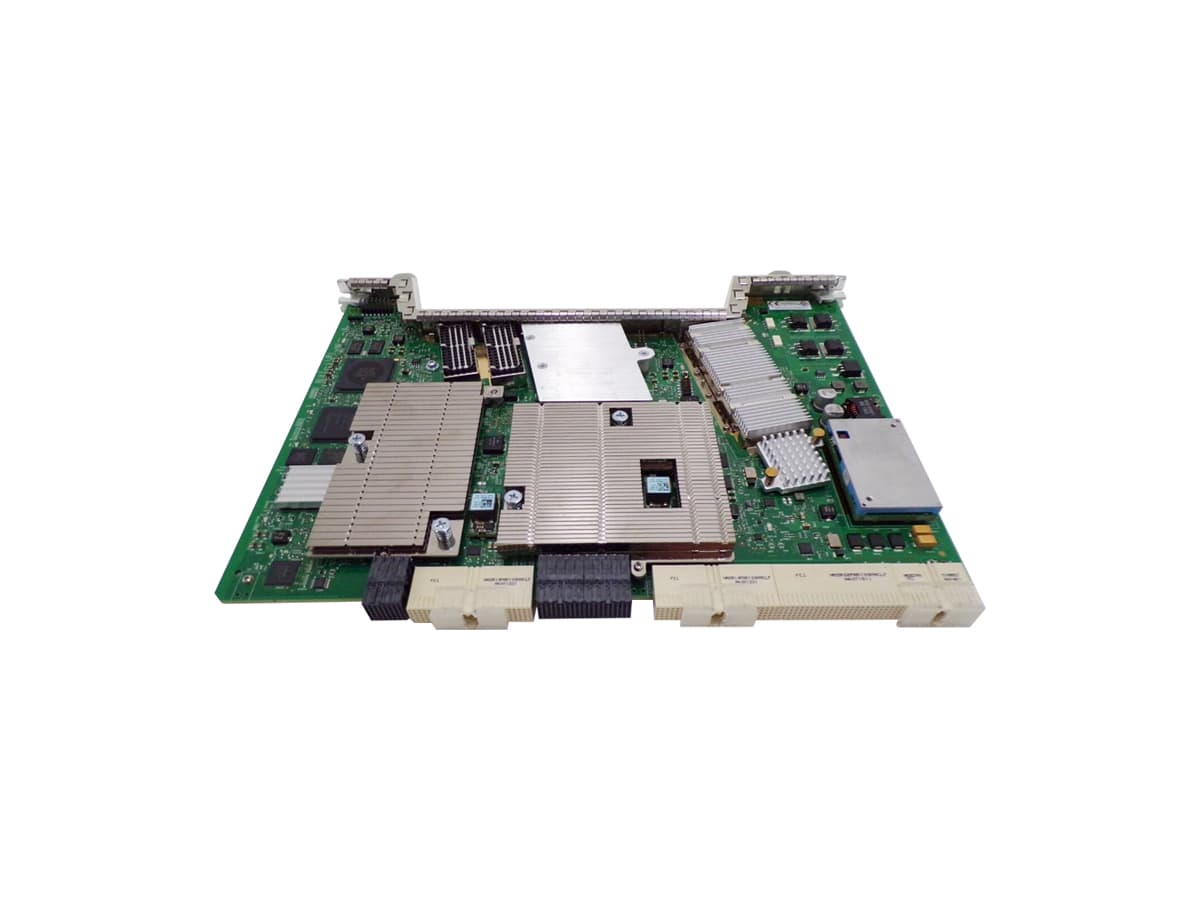

NCS2K-MR-MXP-LIC CISCO 10/40/100G MR Muxponder
| Category | Specification |
|---|---|
| Form Factor | Line card for Cisco NCS 2000 chassis |
| Dimensions (H x W x D) | Standard NCS 2000 slot size |
| Weight | Approx. 3.3 lbs (1.5 kg) |
| Line Rate | 100 Gbps |
| Supported Client Interfaces | 10G, 40G, 100G Ethernet, OTU2, OTU4 |
| Forwarding Mode | Transparent muxponder for optical transport networks |
| Client Ports | Multiple 10G/40G/100G interfaces |
| Line-Side Ports | 100G DWDM optical output |
| Modulation Support | DP-QPSK (Dual-Polarization Quadrature Phase-Shift Keying) with coherent detection |
| Power Consumption | Approx. 75W (typical) |
| Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) |
