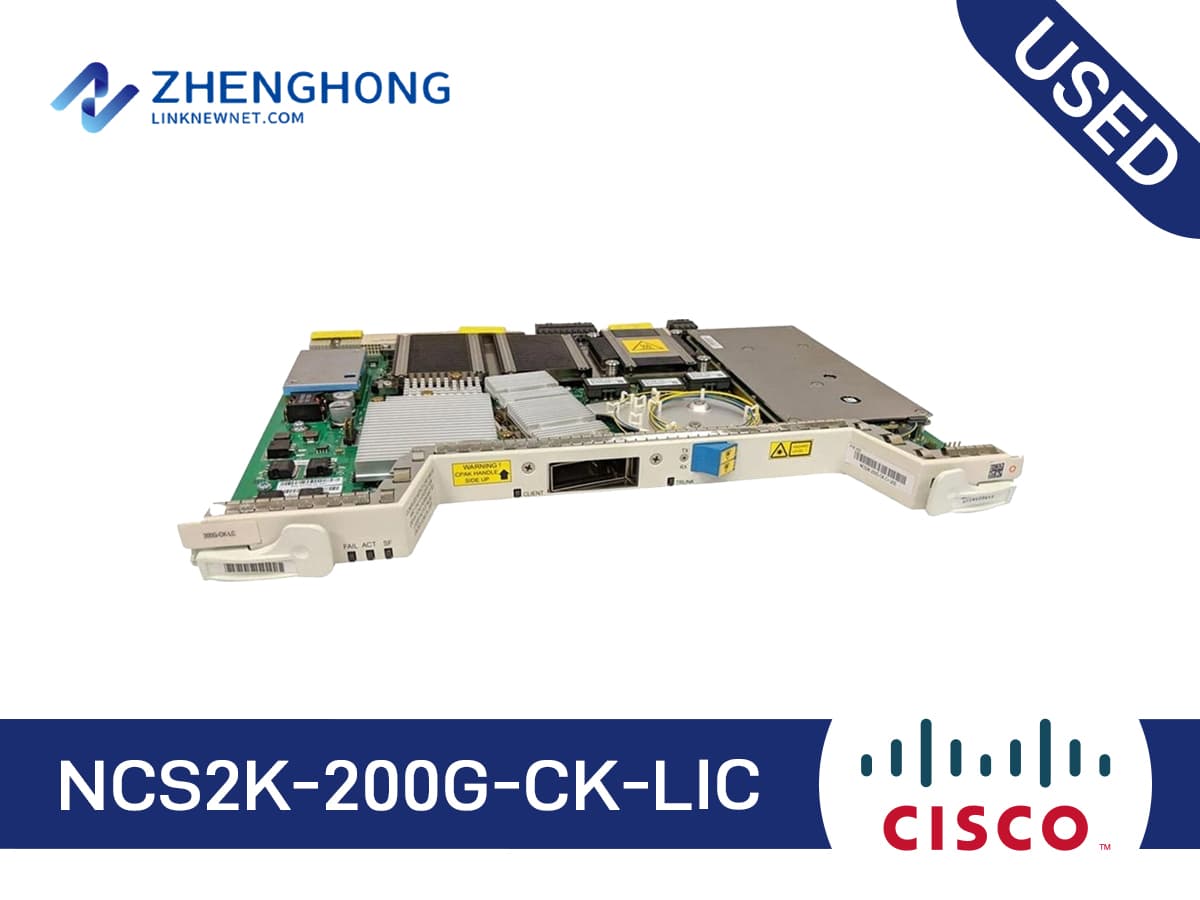

Cisco NCS2K-200G-CK-LIC 200G - CPAK MR Line Card - C-Band - Licensed
| Cabling Type: | DWDM, Ethernet 100GBase-LR4, Ethernet 100GBase-SR10 |
|---|---|
| Compliant Standards: | ITU-T G.709 |
| Compliant Standards: | Laser Class 1, GR-1089-CORE, ITU-T G.709, GR-63-CORE, ITU-T G.691, G.975, GR-253-CORE, G.8021, G.7710, TR-NWT-000332, Issue 4, Method 1 |
| Connectivity Technology: | Wired |
| Data Link Protocol: | 200 Gigabit Ethernet |
| Data Transfer Rate: | 200 Gbps |
| Designed For: | Cisco Network Convergence System 2006 External Connections Unit |
| Device Type: | Expansion module |
| Features: | AIS(Alarm Indication Signal), Soft Decision Forward Error Correction (SD FEC) |
| Form Factor: | Plug-in module |
| Humidity Range Operating: | 5 - 85% (non-condensing) |
| Interfaces: | 1 x 200Gb Ethernet - CPAK ¦ 1 - LC - x 2 |
| Line Coding Format: | DQPSK, BPSK, 16 QAM |
| MTBF: | 116,052 hours |
| Max Operating Temperature: | 40 °C |
| Min Operating Temperature: | 0 °C |
| Optical Wave Length: | 1528.77-1566.72 nm |
| Ports: | 200 Gigabit CPAK x 1 |
| Power Consumption Operational: | 163 Watt |
| Software Included: | Flex-Spectrum on WDM Trunk port, Soft-Decision FEC on WDM Trunk port, CPAK Client, HG-FEC on 100G CP-DQPSK WDM Trunk port |
| Status Indicators: | Fail, active, input, output |
| Version: | original |
| Weight: | 1.8 kg |
