AIR-CAP3602I-NK910|LinkNewNet

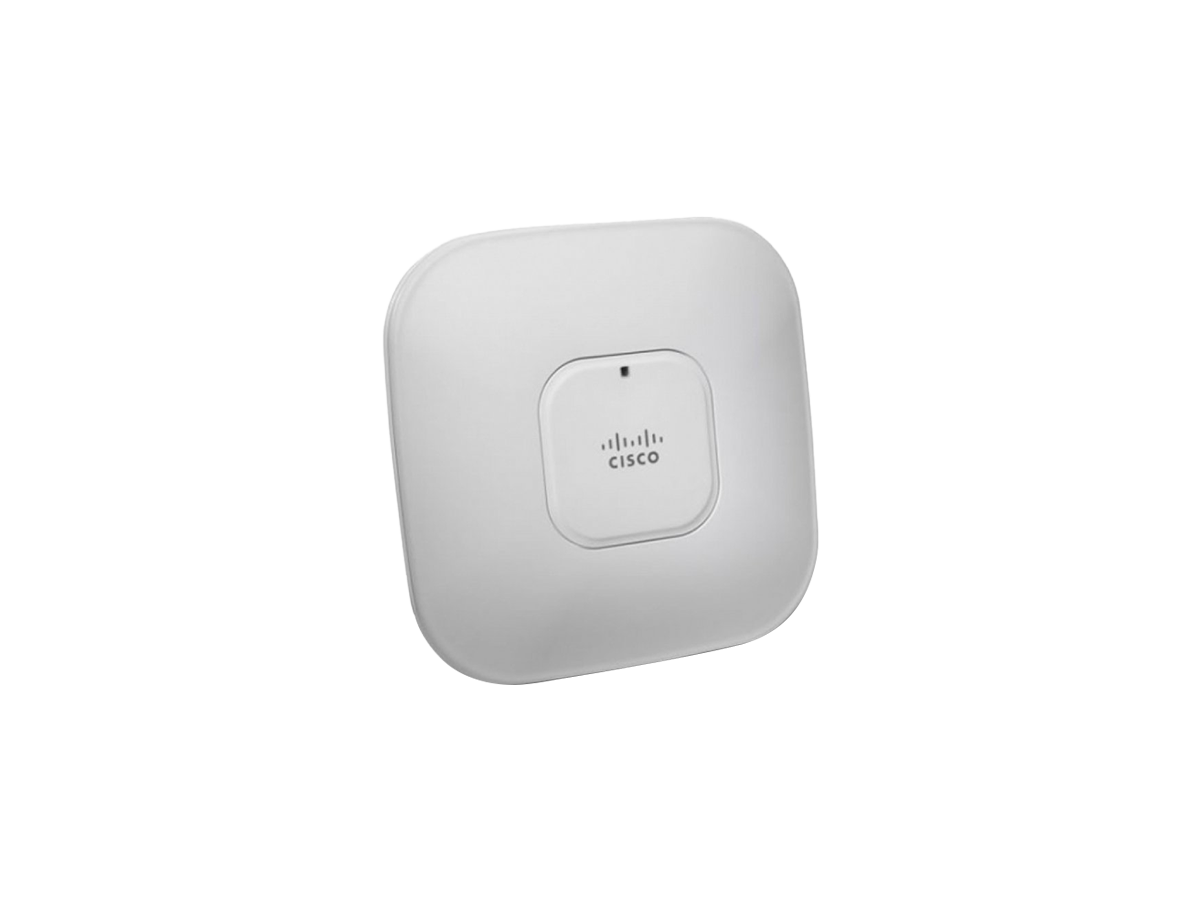

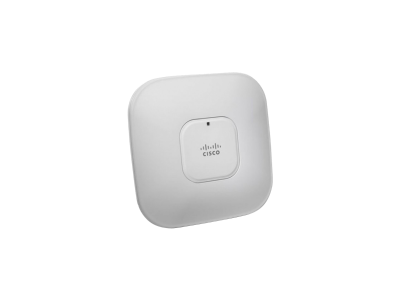

AIR-CAP3602I-NK910 Cisco 3600i Series Access Points Eco Packs

Model: AIR-CAP3602I-NK910

Detail: Cisco AIR-CAP3602I-NK910 802.11n CAP 10APs w/CleanAir; 4x4:3SS; Mod; Int; N RegDomain

Condition: USED

List Price: $8741 Price: $5245

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-CAP3602I-NK910 Specification
Product Description	Cisco Catalyst 3600 Series Access Points with integrated antennas
Devide Type	Wireless Access point
Regulatory domain	A regulatory domain
Supported wireless LAN controllers	● Cisco 2500 Series Wireless Controllers ● Cisco Wireless Controller Module for ISR G2 ● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches ● Cisco 5500 Series Wireless Controllers
Software	Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: ● 7.2 or later for the Cisco Aironet 3600 Series Access Point ● 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point ● 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point
Data rates supported	● 802.11a: up to 54 Mbps ● 802.11g: up to 54 Mbps
Antenna (integrated)	● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360°
Interfaces	● 10/100/1000BASE-T autosensing (RJ-45)
System memory	● 256 MB DRAM
Module options	● Cisco Aironet Wireless Security Module ● Cisco Aironet IEEE 802.1ac Wave 1 Module
Power consumption (purchase separately)	● No external module installed, 4x4:3 on 2.4/5 GHz : 16.1 Watts
	● No external module installed, 3x3:3 on 2.4/5 GHz : 15.4 Watts
IEEE standards	● IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
Security	● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ● 802.1X
Extensible Authentication Protocol (EAP) types	● EAP-Transport Layer Security (TLS) ● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ● Protected EAP (PEAP) v0 or EAP-MSCHAPv2
Integrated Antenna	● 2.4 GHz, Gain 2 dBi, internal omni, horizontal beamwidth 360° ● 5 GHz, Gain 4 dBi, internal omni, horizontal beamwidth 360°
External Antenna (Sold Separately)	● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)
Weight	● 2.5 lbs (1.13 kg)
Environmental	Cisco Aironet 3600i ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test -25˚C, 15,000 ft. ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (noncondensing) ● Operating Altitude Test -40˚C, 9843 ft. Cisco Aironet 3600e ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test - 25˚C, 15,000 ft. ● Operating temperature: -4 to 131°F (-20 to 55°C) ● Operating humidity: 10 to 90 percent (noncondensing) ● Operating Altitude Test -40˚C, 9843 ft.

Q&A

What troubleshooting steps are recommended?

For common issues, ensure the firmware is up-to-date, check power connections, and verify network settings via the Cisco Controller interface. Consult Cisco support for persistent issues.

What accessories are available for this model?

Available accessories include mounting brackets, external antennas (if applicable), and power injectors, which can be purchased separately to enhance installation and performance.

How does this compare with other models?

The AIR-CAP3602I-NK910 excels in MIMO technology and CleanAir, compared to older models like the 2600 Series, providing better interference management and overall performance.

Is this model suitable for outdoor use?

The Cisco AIR-CAP3602I-NK910 is designed for indoor use, primarily in enterprise and commercial environments; consider outdoor models from Cisco for external deployments.

What are the main features of the AIR-CAP3602I-NK910?

The AIR-CAP3602I-NK910 features CleanAir technology, 802.11n capability, and 4x4:3 spatial streams for enhanced wireless performance.

How cost-effective is the AIR-CAP3602I-NK910 for integrators?

The AIR-CAP3602I-NK910 provides robust features like CleanAir and modularity, delivering excellent value for its price.

In what scenarios is the AIR-CAP3602I-NK910 most effective?

The AIR-CAP3602I-NK910 is ideal for high-density environments such as enterprise offices, schools, and hospitals.

How do you install the AIR-CAP3602I-NK910 access point?

Installation involves mounting the device, connecting Ethernet cables, and configuring settings through the Cisco controller.

Does the AIR-CAP3602I-NK910 require firmware updates?

Yes, to maintain optimal performance and security, periodically check for and install firmware updates from Cisco.

Are there any alternatives to the AIR-CAP3602I-NK910?

Alternatives include other Cisco access points such as the AIR-AP2802I or AIR-AP3702I, depending on specific needs.

What are some common troubleshooting tips for the AIR-CAP3602I-NK910?

Check connectivity, ensure firmware is up-to-date, and verify settings through the Cisco controller console.

What accessories are available for the AIR-CAP3602I-NK910?

Accessories include mounting kits, power injectors, and external antennas for enhanced deployment flexibility.

How does the AIR-CAP3602I-NK910 compare to other Cisco APs?

The AIR-CAP3602I-NK910 offers superior CleanAir technology and modularity, making it ideal for interference-heavy environments.

What is the wireless performance specification of the AIR-CAP3602I-NK910?

The AIR-CAP3602I-NK910 supports 802.11n with 4x4:3 MIMO, providing high throughput and excellent coverage.

How cost-effective is the AIR-CAP3602I-NK910?

The Cisco AIR-CAP3602I-NK910 provides excellent value with its advanced 802.11n technology, CleanAir features, and reliable performance, making it ideal for large-scale Wi-Fi deployments.

What are the key features of this product?

The Cisco AIR-CAP3602I-NK910 features 4x4:3SS MIMO, CleanAir technology, modular design, and internal antennas, ensuring strong and stable wireless performance.

What are the common application scenarios?

This access point is commonly used in enterprise environments, educational institutions, and healthcare facilities, where reliable and high-speed Wi-Fi is essential.

How do I install the AIR-CAP3602I-NK910?

The installation process involves mounting the device, connecting it to a network switch, and configuring it using the Cisco Controller interface. Detailed instructions are provided in the manual.

Does the product need regular upgrades?

Yes, to maintain optimal performance and security, it is advisable to perform regular firmware updates using the Cisco Controller software.

Are there any alternative products?

Yes, alternatives include the Cisco AIR-CAP3702I and the newer Cisco 4800 Series, which offer similar features with enhanced performance.
