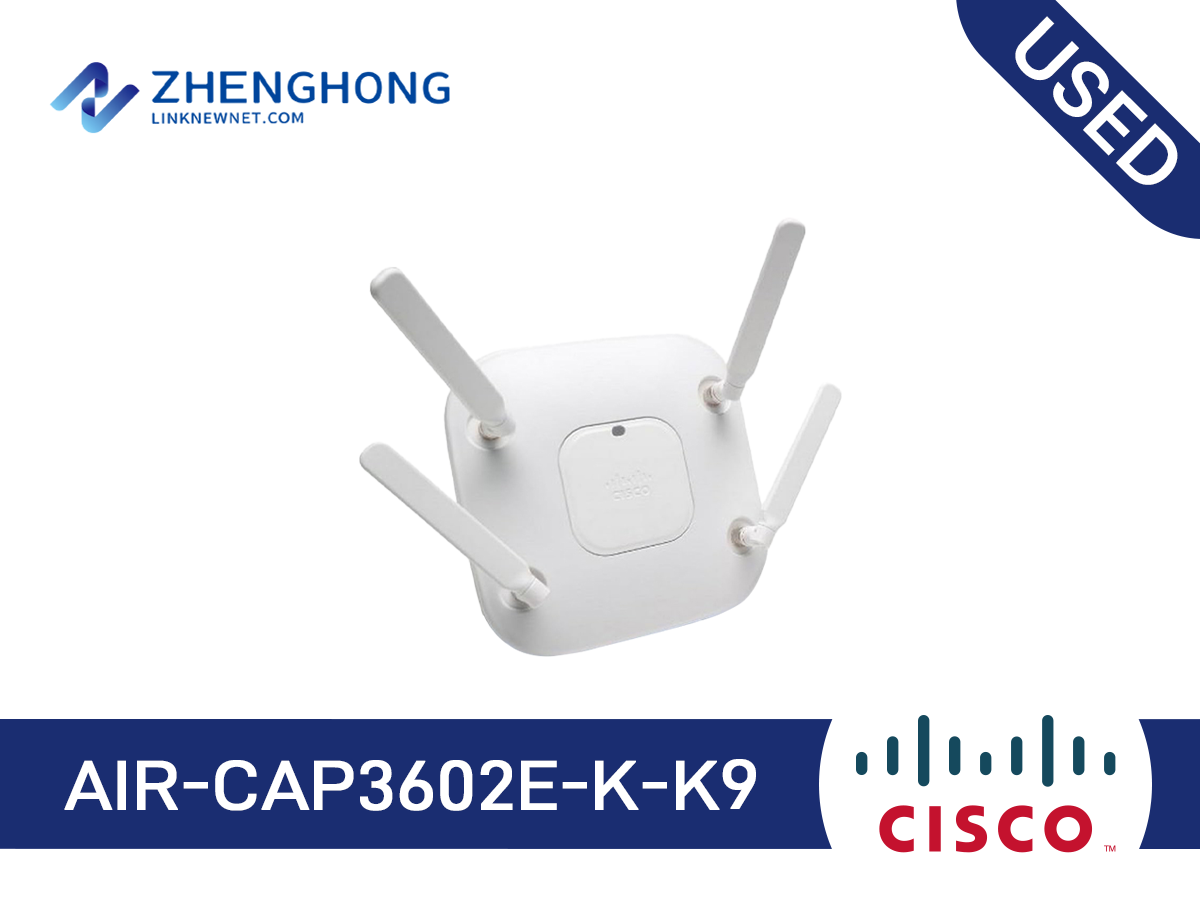

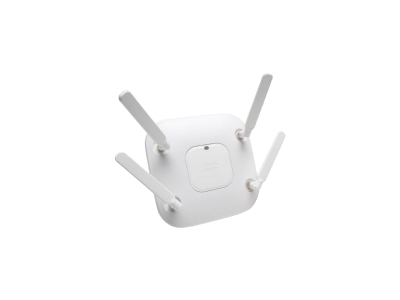

AIR-CAP3602E-K-K9 Cisco 3600e Series Access Points: Dual Band

Product Description

Cisco Catalyst 3600 Series Access Points with external antennas

Devide Type

Wireless  Access point

Regulatory domain

A regulatory domain

Supported wireless LAN controllers

● Cisco 2500 Series Wireless Controllers
● Cisco Wireless Controller Module for ISR G2
● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches
● Cisco 5500 Series Wireless Controllers

● Cisco Flex 7500 Series Wireless Controllers
● Cisco 8500 Series Wireless Controllers ● Cisco Virtual Wireless Controller
● Cisco 5760 Wireless LAN Controller
● Cisco Catalyst 3850 Series Switches
● Cisco Catalyst 3650 Series Switches

Software

Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers:
● 7.2 or later for the Cisco Aironet 3600 Series Access Point
● 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point
● 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point

Cisco IOS XE Software Release:
● 3.2.0SE or later for the Cisco Aironet 3600 Series Access Point
● 3.3.0SE or later for the Cisco 802.11ac Wave 1 Module for the 3600 Series Access Point
● Wireless Security Module for the 3600 Series Access Point support – (T arget 1HCY15)

Data rates supported

● 802.11a: up to 54 Mbps
● 802.11g: up to 54 Mbps

● 802.11n: up to 450 Mbps

Maximum number of nonoverlapping channels

5 GHz
●  802.11a:
◦   20 MHz: 21
●  802.11n:
◦   20 MHz: 21
◦   40 MHz: 9

2.4 GHz
●  802.11b/g:
◦   20 MHz: 3
●  802.11n:
◦   20 MHz: 3

Antenna (purchase separately)

● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)

● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios

Interfaces

●  10/100/1000BASE-T autosensing (RJ-45)

●  Management console port (RJ-45)

System memory

●  256 MB DRAM

●  32 MB flash

Module options

● Cisco Aironet Wireless Security Module
● Cisco Aironet IEEE 802.1ac Wave 1 Module

● Cisco Universal Small Cell 5310

Power consumption (purchase separately)

● No external module installed, 4x4:3 on 2.4/5 GHz : 16.1 Watts

● with wireless Security module, 4x4:3 on 2.4/5 GHz +WSM: 19.6 Watts

● No external module installed, 3x3:3 on 2.4/5 GHz : 15.4 Watts

● with wireless Security module, 2x2:2 on 2.4/5 GHz +WSM: 15.4 Watts

IEEE standards

● IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d

● IEEE 802.11ac (by module)

Security

● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
● 802.1X

● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)

Extensible Authentication Protocol (EAP) types

● EAP-Transport Layer Security (TLS)
● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
● Protected EAP (PEAP) v0 or EAP-MSCHAPv2

● EAP-Flexible Authentication via Secure Tunneling (FAST)
● PEAP v1 or EAP-Generic Token Card (GTC)
● EAP-Subscriber Identity Module (SIM)

Frequency band and 20-MHz operating channels

A (A regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
● 5.745 to 5.825 GHz; 5 channels
C (C regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.745 to 5.825 GHz; 5 channels
E (E regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
I (I regulatory domain):
● 2.412 to 2.472 GHz, 13 channels
● 5.180 to 5.320 GHz; 8 channels
K (K regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.620 GHz, 7 channels
● 5.745 to 5.805 GHz, 4 channels

N (N regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
Q (Q regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.500 to 5.700 GHz; 11 channels
R (R regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5,660 to 5,805 GHz, 7 channels
S (S regulatory domain):
● 2.412 to 2.472 GHz; 13 channels
● 5.180 to 5.320 GHz; 8 channels
● 5.745 to 5.825 GHz; 5 channels
T (T regulatory domain):
● 2.412 to 2.462 GHz; 11 channels
● 5.280 to 5.320 GHz; 3 channels
● 5.500 to 5.700 GHz, 8 channels
(excludes 5.600 to 5.640 GHz)
● 5.745 to 5.825 GHz; 5 channels

Environmental

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
●  Nonoperating (storage) altitude test: -25˚C, 15,000 ft.
●  Operating temperature: -4° to 131°F (-20° to 55°C)

●  Operating humidity: 10% to 90% percent (noncondensing)
●  Operating altitude test: -40˚C, 9843 ft.
