AIR-CAP3602E-QK910|LinkNewNet

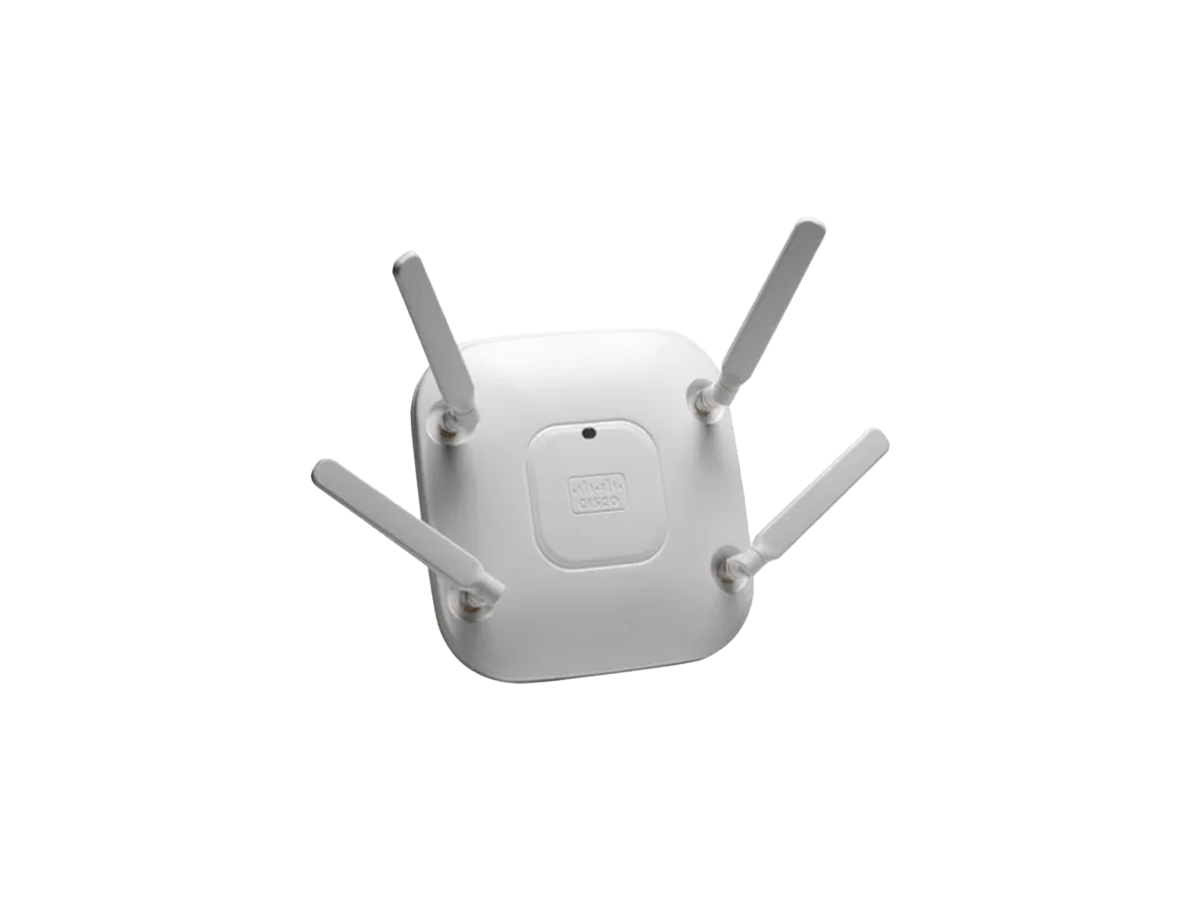

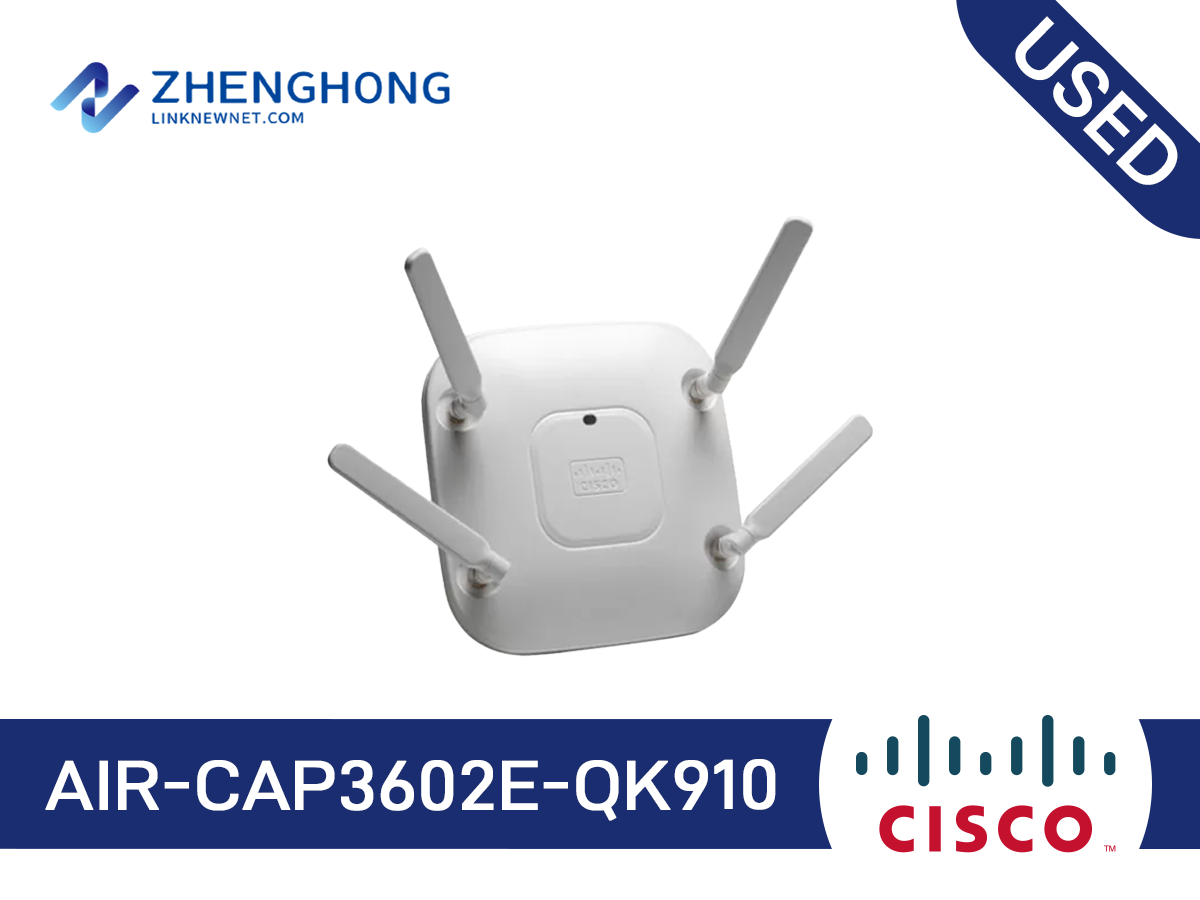

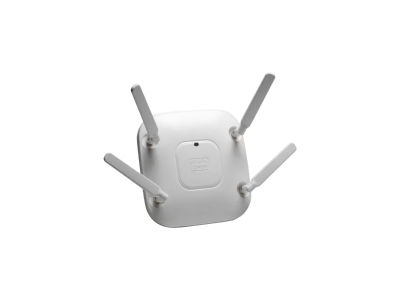

AIR-CAP3602E-QK910 Cisco 3600e Series Access Points Eco Packs

Model: AIR-CAP3602E-QK910

Detail: Cisco AIR-CAP3602E-QK910 802.11n CAP 10APs w/CleanAir; 4x4:3SS; Mod; Ext; Q RegDomain

Condition: USED

List Price: $9272 Price: $5563

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-CAP3602E-QK910 Specification
Product Description	Cisco Catalyst 3600 Series Access Points with external antennas
Devide Type	Wireless Access point
Regulatory domain	A regulatory domain
Supported wireless LAN controllers	● Cisco 2500 Series Wireless Controllers ● Cisco Wireless Controller Module for ISR G2 ● Cisco Wireless Services Module 2 (WiSM2) for Catalyst 6500 Series Switches ● Cisco 5500 Series Wireless Controllers	● Cisco Flex 7500 Series Wireless Controllers ● Cisco 8500 Series Wireless Controllers ● Cisco Virtual Wireless Controller ● Cisco 5760 Wireless LAN Controller ● Cisco Catalyst 3850 Series Switches ● Cisco Catalyst 3650 Series Switches
Software	Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: ● 7.2 or later for the Cisco Aironet 3600 Series Access Point ● 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point ● 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point	Cisco IOS XE Software Release: ● 3.2.0SE or later for the Cisco Aironet 3600 Series Access Point ● 3.3.0SE or later for the Cisco 802.11ac Wave 1 Module for the 3600 Series Access Point ● Wireless Security Module for the 3600 Series Access Point support – (T arget 1HCY15)
Data rates supported	● 802.11a: up to 54 Mbps ● 802.11g: up to 54 Mbps	● 802.11n: up to 450 Mbps
Maximum number of nonoverlapping channels	5 GHz ● 802.11a: ◦ 20 MHz: 21 ● 802.11n: ◦ 20 MHz: 21 ◦ 40 MHz: 9	2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3
Antenna (purchase separately)	● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)	● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios
Interfaces	● 10/100/1000BASE-T autosensing (RJ-45)	● Management console port (RJ-45)
System memory	● 256 MB DRAM	● 32 MB flash
Module options	● Cisco Aironet Wireless Security Module ● Cisco Aironet IEEE 802.1ac Wave 1 Module	● Cisco Universal Small Cell 5310
Power consumption (purchase separately)	● No external module installed, 4x4:3 on 2.4/5 GHz : 16.1 Watts	● with wireless Security module, 4x4:3 on 2.4/5 GHz +WSM: 19.6 Watts
	● No external module installed, 3x3:3 on 2.4/5 GHz : 15.4 Watts	● with wireless Security module, 2x2:2 on 2.4/5 GHz +WSM: 15.4 Watts
IEEE standards	● IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d	● IEEE 802.11ac (by module)
Security	● 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ● 802.1X	● Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP)
Extensible Authentication Protocol (EAP) types	● EAP-Transport Layer Security (TLS) ● EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ● Protected EAP (PEAP) v0 or EAP-MSCHAPv2	● EAP-Flexible Authentication via Secure Tunneling (FAST) ● PEAP v1 or EAP-Generic Token Card (GTC) ● EAP-Subscriber Identity Module (SIM)
Frequency band and 20-MHz operating channels	A (A regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels C (C regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.825 GHz; 5 channels E (E regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) I (I regulatory domain): ● 2.412 to 2.472 GHz, 13 channels ● 5.180 to 5.320 GHz; 8 channels K (K regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz, 7 channels ● 5.745 to 5.805 GHz, 4 channels	N (N regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels Q (Q regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels R (R regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5,660 to 5,805 GHz, 7 channels S (S regulatory domain): ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels T (T regulatory domain): ● 2.412 to 2.462 GHz; 11 channels ● 5.280 to 5.320 GHz; 3 channels ● 5.500 to 5.700 GHz, 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
Environmental	● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C) ● Nonoperating (storage) altitude test: -25˚C, 15,000 ft. ● Operating temperature: -4° to 131°F (-20° to 55°C)	● Operating humidity: 10% to 90% percent (noncondensing) ● Operating altitude test: -40˚C, 9843 ft.

Q&A

How to troubleshoot connectivity issues with the Cisco AIR-CAP3602E-QK910?

Check network settings, ensure firmware is up-to-date, verify antenna connections, and use the CleanAir feature to detect and resolve interference.

What accessories are available for the Cisco AIR-CAP3602E-QK910?

Available accessories include mounting brackets, external antennas, power injectors, and PoE adapters to enhance installation and performance.

How does the Cisco AIR-CAP3602E-QK910 compare to similar products?

The Cisco AIR-CAP3602E-QK910 stands out with its CleanAir technology and robust 4x4:3SS MIMO configuration, offering superior interference mitigation and coverage.

What category does the Cisco AIR-CAP3602E-QK910 fall under?

The Cisco AIR-CAP3602E-QK910 is categorized under Wireless > Cisco Wireless APs & Controllers > Cisco 3600 Access Point.

How cost-effective is the AIR-CAP3602E-QK910?

The Cisco AIR-CAP3602E-QK910 offers great value with advanced features like CleanAir technology and 4x4 MIMO, ensuring optimal 802.11n performance.

What are the main characteristics of the AIR-CAP3602E-QK910?

It features 802.11n CAP, CleanAir technology, 4x4:3 spatial streams, and external antennas for enhanced coverage.

What are the typical application scenarios for the AIR-CAP3602E-QK910?

Ideal for high-density environments such as enterprises, campuses, and large venues where reliable and robust wireless coverage is essential.

How do I install the AIR-CAP3602E-QK910?

Mount the access point, connect the power and network cables, and configure the device via the web-based interface or Cisco controller.

Does the AIR-CAP3602E-QK910 require regular upgrades?

Yes, periodic firmware updates are recommended to ensure the latest security patches and feature enhancements.

Are there any alternative products to the AIR-CAP3602E-QK910?

Alternatives include the Cisco AIR-CAP3702E and AIR-AP2802E, which offer similar functionalities with slight feature variations.

What common troubleshooting steps can I take for the AIR-CAP3602E-QK910?

Verify power supply, check network cabling, ensure firmware is up-to-date, and consult Cisco's support documentation for specific issues.

What accessories are available for the AIR-CAP3602E-QK910?

Accessories include external antennas, power injectors, and mounting brackets for various installation needs.

How does the AIR-CAP3602E-QK910 compare to similar products?

Compared to other models like AIR-CAP2602E, the AIR-CAP3602E-QK910 offers better performance with an additional spatial stream and CleanAir technology.

Is the AIR-CAP3602E-QK910 compatible with multiple regulatory domains?

Yes, the Q RegDomain variant ensures it meets compliance requirements for various geographic regions.

How cost-effective is the Cisco AIR-CAP3602E-QK910?

The Cisco AIR-CAP3602E-QK910 offers excellent value with its advanced CleanAir technology and robust 4x4:3SS configuration, enhancing wireless performance and reliability.

What are the standout features of the Cisco AIR-CAP3602E-QK910?

Key features include 802.11n support, CleanAir technology, 4x4:3SS MIMO configuration, and external antennas, ensuring high performance and interference mitigation.

What are the ideal application scenarios for the Cisco AIR-CAP3602E-QK910?

This access point is ideal for enterprise environments requiring high-density wireless coverage and interference mitigation, such as offices, educational institutions, and hospitals.

How do I install the Cisco AIR-CAP3602E-QK910?

Installation involves mounting the access point, connecting it to a network switch or controller, and configuring wireless settings via the controller interface.

Does the Cisco AIR-CAP3602E-QK910 require regular upgrades?

The access point may require firmware updates to maintain optimal performance and security, which can be managed through the Cisco wireless controller.

Are there alternative products to the Cisco AIR-CAP3602E-QK910?

Alternatives include the Cisco AIR-CAP3702E or the Cisco Catalyst 9100 series, which also offer advanced features and high performance.
