AIR-CAP3602E-N-K9|LinkNewNet

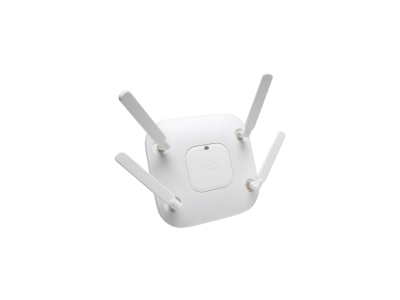

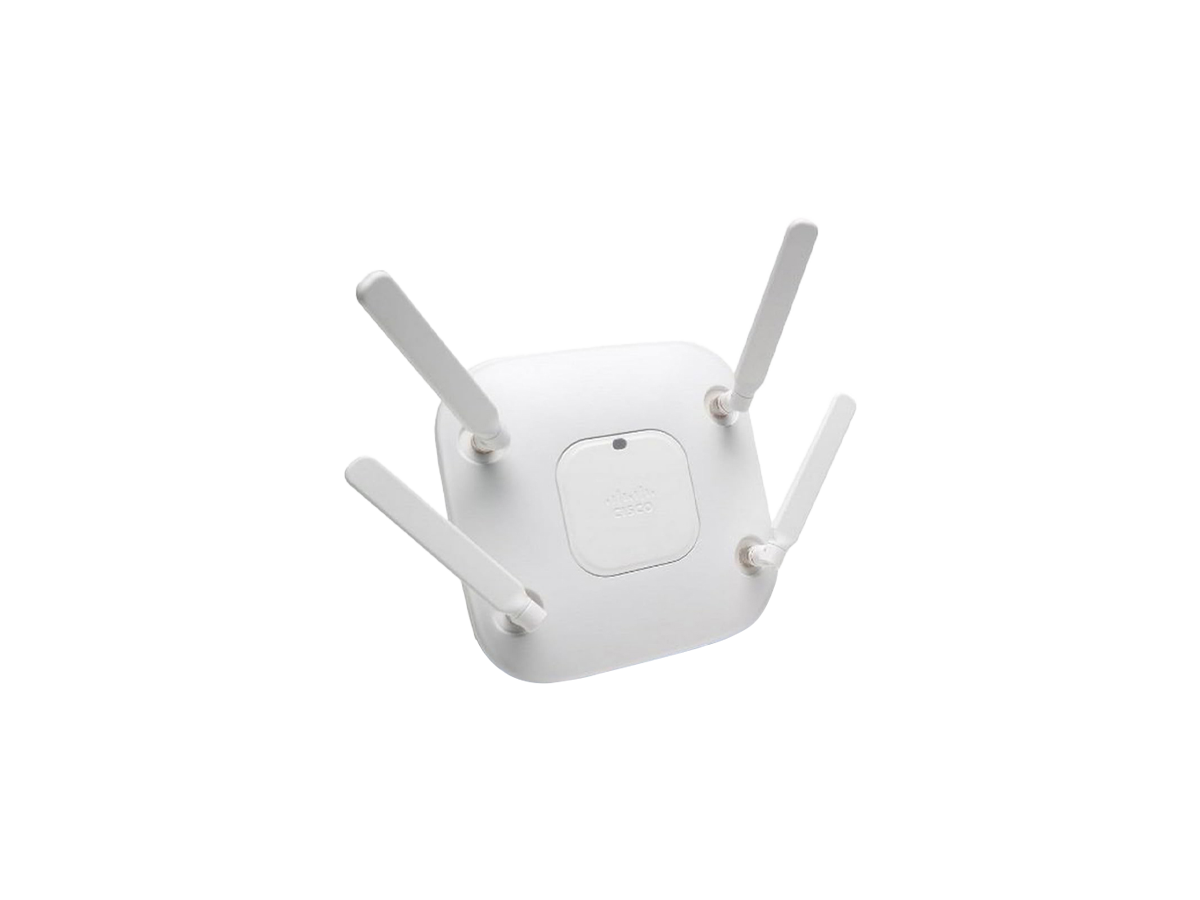

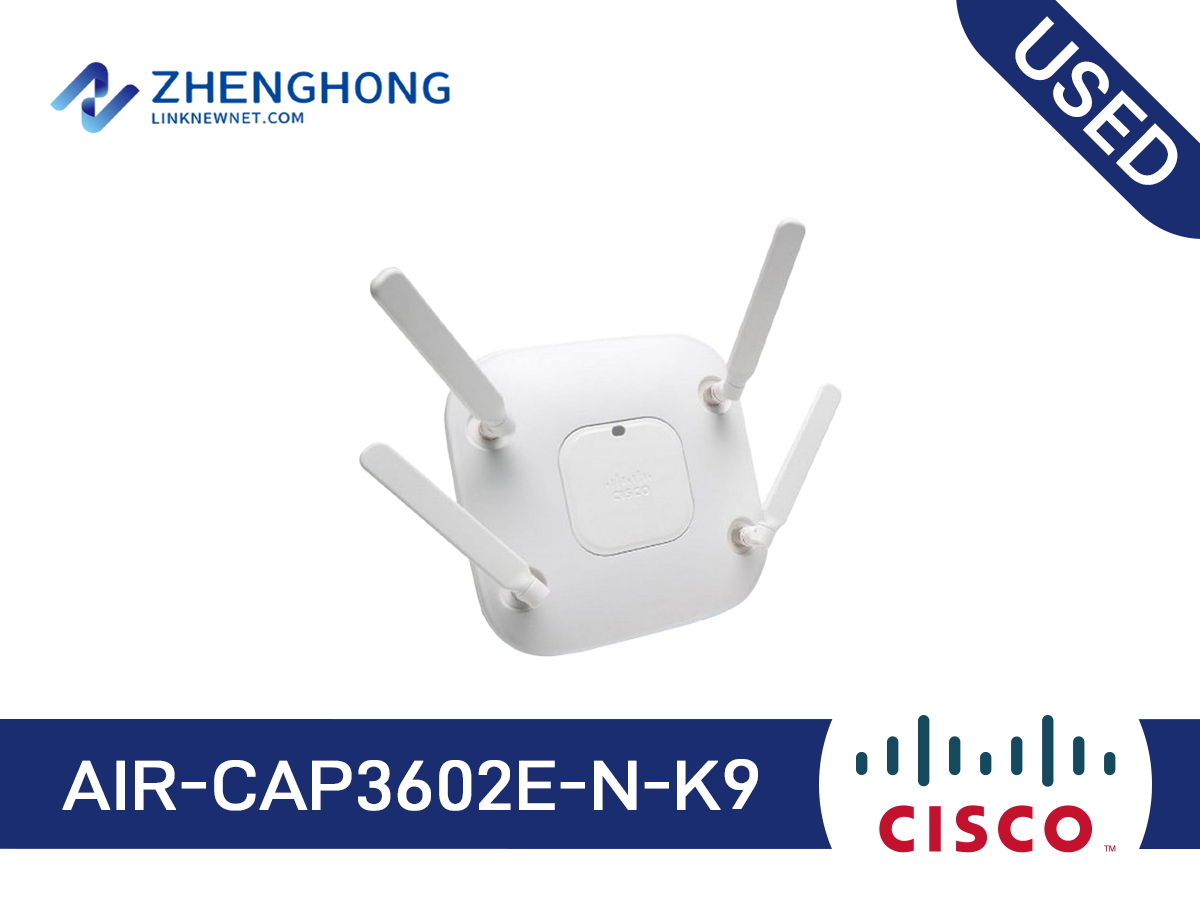

AIR-CAP3602E-N-K9 Cisco 3600e Series Access Points: Dual Band

Model: AIR-CAP3602E-N-K9

Detail: Cisco AIR-CAP3602E-N-K9 802.11n CAP w/CleanAir; 4x4:3SS; Mod; Ext Ant; N Reg Domain

Condition: USED

List Price: $927 Price: $556

Price is not finalPlease contact if any inquiry.

Shipping: DHL, FedEx, UPS, etc

Availability: In Stock

*These items are in Good condition. Items may have scratches, if you need mint condition let us know and we will see if we have a unit that meets your needs.

*These items have been fully tested by our professional tech team. Test notes available upon request.

Tags：

Delivery

After receiving the order, we will carry out detailed testing and maintenance of the equipment before shipmentSothe order equipment usually will be shipped within 2 or 3 workdays.

Warranty

Equipment is sold with a3-month free warranty policy. If you need to extend the warranty period, please contact our sales team

Product Condition

All of devicesare in good operating condition, having been fully tested by professional technical engineers. Testing instructions also could be provided according to customer’s requirements. There may be scratches on the appearance of used products. please confirm that with our sales team before purchasing.

Payment

Import duties and taxes are not included in the product price or shipping costs. Please contact with the customs office in your country for checking with the additional charges before the itemsarriving at your customs location.

Product Details

AIR-CAP3602E-N-K9 Specifications
Software	Cisco Unified Wireless Network Software Release with AireOS Wireless Controllers: ● 7.2 or later for the Cisco Aironet 3600 Series Access Point ● 7.4 or later for support of the Wireless Security Module for the 3600 Series Access Point ● 7.5 or later for support of the 802.11ac Wave 1 Module for the 3600 Series Access Point Cisco IOS XE Software Release: ● 3.2.0SE or later for the Cisco Aironet 3600 Series Access Point ● 3.3.0SE or later for the Cisco 802.11ac Wave 1 Module for the 3600 Series Access Point ● Wireless Security Module for the 3600 Series Access Point support
Supported Wireless LAN Controllers	AireOS Wireless Controllers ● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst ® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex ® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller Cisco IOS Wireless Controllers ● Cisco 5760 Wireless LAN Controller, Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
Integrated Antenna	● 2.4 GHz, Gain 2 dBi, internal omni, horizontal beamwidth 360° ● 5 GHz, Gain 4 dBi, internal omni, horizontal beamwidth 360°
External Antenna (Sold Separately)	● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios
Interfaces	● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 8.7 x 8.7 x 2.11 in. (22.1 x 22.1 x 5.4 cm)
Weight	● 2.5 lbs (1.13 kg)
Environmental	Cisco Aironet 3600i ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test -25˚C, 15,000 ft. ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (noncondensing) ● Operating Altitude Test -40˚C, 9843 ft. Cisco Aironet 3600e ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test - 25˚C, 15,000 ft. ● Operating temperature: -4 to 131°F (-20 to 55°C) ● Operating humidity: 10 to 90 percent (noncondensing) ● Operating Altitude Test -40˚C, 9843 ft.
System Memory	● 256-MB DRAM ● 32-MB flash
Input Power Requirements	● AP3600: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Power draw	* This is the power required at the PSE, which is a switch or injector.
Power draw	Description	AP Functionality	PoE Budget (Watts)	802.3af	E-PoE	802.3at PoE+ PWRINJ4
PoE+ 802.3at	3600 - No external module installed	4x4:3 on 2.4/5 GHz	15.4	ü	ü	ü
PoE+ 802.3at	3600 - 2.4GHz radio disabled + Wireless Security Module	4x4:3 on 5 GHz + WSM	15.4	ü	n/a	n/a
	3600 - 2.4GHz radio disabled + 802.11ac Module	4x4:3 on 5 GHz only + 11ac	15.4	ü	n/a	n/a
PoE 802.3af	3600 + Wireless Security Module	4x4:3 on 2.4/5 GHz + WSM	18.4	×	ü	ü
PoE 802.3af	3600 + 802.11ac Module	4x4:3 on 2.4/5 GHz + 11ac	19.6	×	ü	ü
	3600 + Universal Small Cell Module (USC5310)	4x4:3 on 2.4/5 GHz + USC5310	22	×	×	ü
Warranty	Limited Lifetime Hardware Warranty

Q&A

What troubleshooting steps are common for the Cisco AIR-CAP3602E-N-K9?

Common troubleshooting includes checking antenna connections, verifying power status, reviewing AP configurations on the controller, and observing CleanAir RF spectrum analysis.

What accessories are available for the Cisco AIR-CAP3602E-N-K9?

Available accessories include external antennas, mounting brackets, power injectors, and additional modules for advanced functionalities.

How does the Cisco AIR-CAP3602E-N-K9 compare with other Cisco 3600 series APs?

The AIR-CAP3602E-N-K9 is highly comparable, featuring CleanAir and modular capabilities, but differs in its external antenna support as opposed to models with internal antennas.

Can the Cisco AIR-CAP3602E-N-K9 be used outdoors?

The AIR-CAP3602E-N-K9 is designed for indoor use; for outdoor deployments, consider using outdoor-specific Cisco Aironet models.

What are the key features of AIR-CAP3602E-N-K9?

The AIR-CAP3602E-N-K9 offers 802.11n technology, CleanAir, 4x4:3SS antenna configuration, and modular design.

Is the AIR-CAP3602E-N-K9 cost-effective?

Yes, the AIR-CAP3602E-N-K9 provides advanced features like CleanAir technology at a competitive price.

What application scenarios suit this product?

The AIR-CAP3602E-N-K9 is ideal for enterprise environments requiring robust and reliable wireless connectivity.

How do I install the AIR-CAP3602E-N-K9?

Follow the installation guide for mounting instructions and connect the unit to your network infrastructure.

Does the AIR-CAP3602E-N-K9 require software updates?

Yes, periodically check for firmware updates to ensure optimal performance and security.

Are there alternative products to AIR-CAP3602E-N-K9?

Alternatives include other Cisco access points like AIR-AP1832I-B-K9 with different feature sets.

What accessories are available for AIR-CAP3602E-N-K9?

Accessories include external antennas, mounting brackets, and power injectors for various installation needs.

How does AIR-CAP3602E-N-K9 compare to other access points?

The AIR-CAP3602E-N-K9 excels in CleanAir technology and modular design compared to many competitors.

What are common troubleshooting steps for AIR-CAP3602E-N-K9?

Verify power supply, check configuration settings, and ensure the device firmware is up to date.

Can the AIR-CAP3602E-N-K9 be used with other Cisco products?

Yes, it integrates seamlessly with Cisco Wireless LAN Controllers and other network devices.

How cost-effective is the Cisco AIR-CAP3602E-N-K9?

The Cisco AIR-CAP3602E-N-K9 offers a balance of performance and cost, featuring 802.11n technology and CleanAir for preventing RF interference, making it a value-driven choice.

What are the main features of the Cisco AIR-CAP3602E-N-K9?

The main features include 802.11n support, CleanAir technology, 4x4 MIMO, 3 spatial streams, modular architecture, and external antenna support.

In which scenarios is the Cisco AIR-CAP3602E-N-K9 best used?

The Cisco AIR-CAP3602E-N-K9 is ideal for high-density environments like large office spaces, educational institutions, and healthcare facilities.

How do I install the Cisco AIR-CAP3602E-N-K9?

Installation involves mounting the access point, connecting it to a network switch, configuring via the Cisco Wireless LAN Controller, and securing the external antennas.

Does the Cisco AIR-CAP3602E-N-K9 need firmware upgrades?

Yes, it is recommended to keep the firmware updated for the latest security patches and performance enhancements. Firmware updates can be managed through the Cisco Wireless LAN Controller.

Are there alternative products to the Cisco AIR-CAP3602E-N-K9?

Alternatives include the Cisco AIR-CAP3702E-A-K9 or the AIR-AP3802I-B-K9, which offer similar or advanced features suited for different deployment needs.
