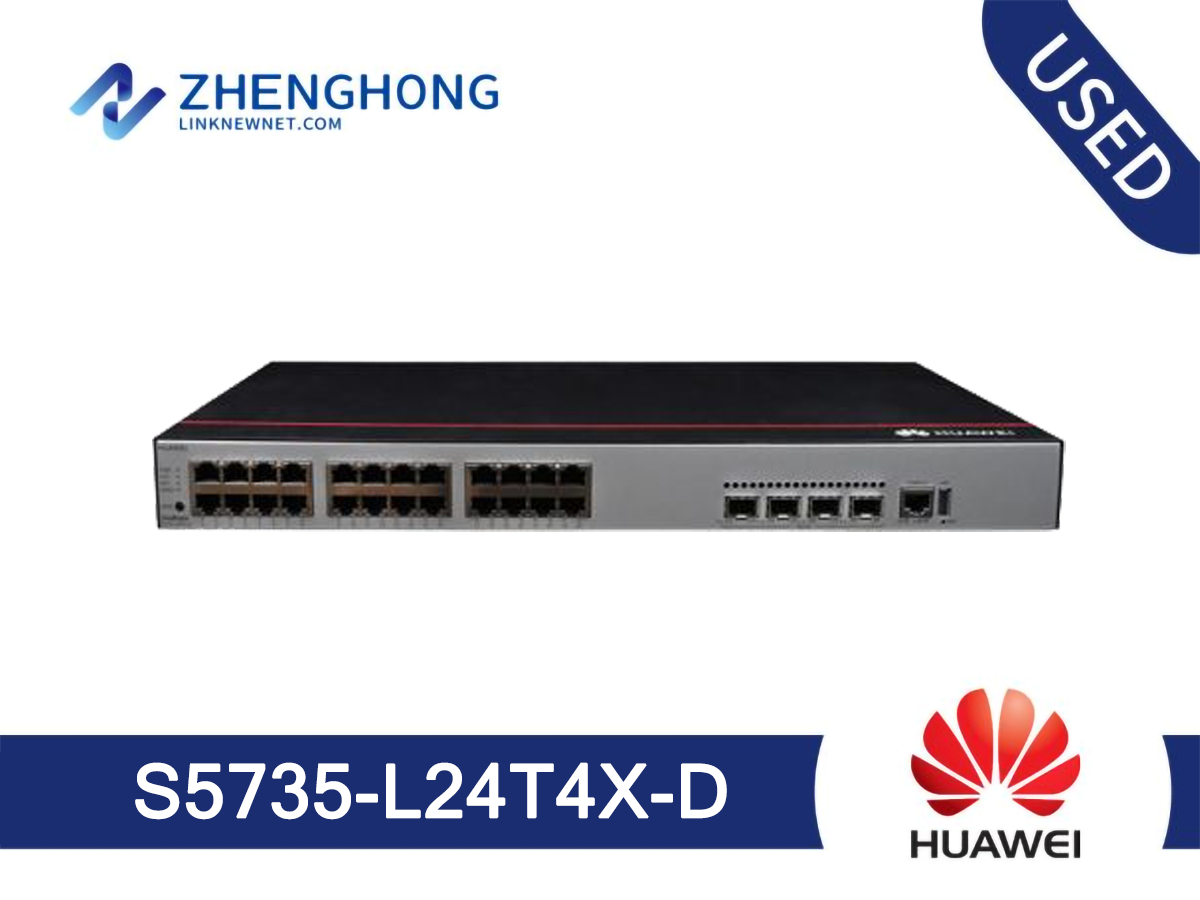

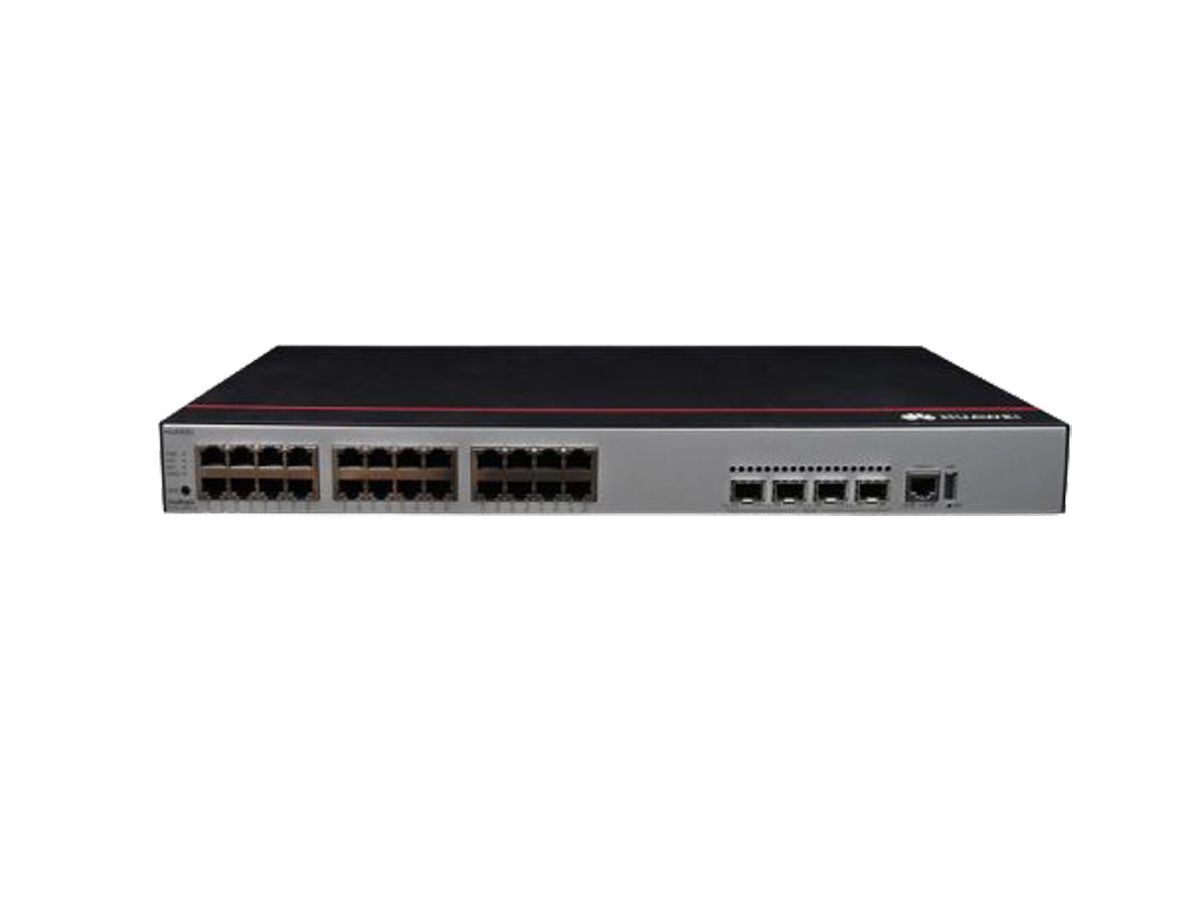

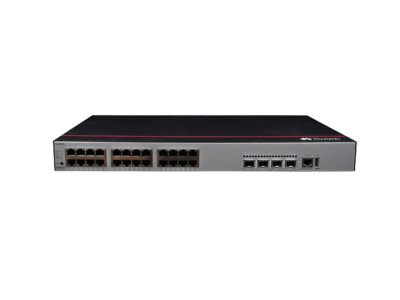

S5735-L24T4X-D Specifications | |
| Brand | Huawei |
| Product Name | S5735-L24T4X-D |
| Series | Huawei S5700 |
| Device Type | Switch - 28 ports - L3 - Managed |
| Ports | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Performance | Switching capacity: 128 Gbps Forwarding performance: 95 Mpps |
| MAC Address Table Size | 16K entries |
| Jumbo Frame Support | 9216 bytes |
| VLAN Support | Yes |
| Power Over Ethernet (PoE) | No |
| Stackable | Yes |
| Routing Protocol | Static IP routing, RIP-1, RIP-2, BGP, OSPF, VRRP, PIM-SM, PIM-DM |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | Layer 3 switching, layer 2 switching, DHCP support, VLAN support, auto-negotiation, ARP support, trunking, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, Weighted Round Robin (WRR) queuing, MAC address filtering |
| Networking Type | L3 Subtype Gigabit Ethernet |
| Subtype | Gigabit Ethernet |
| Dimensions (WxDxH) | 442 mm x 220 mm x 43.6 mm |
This table provides an overview of the Huawei S5735-L24T4X-D specifications, focusing on key attributes that define its functionality and performance in network infrastructures.
