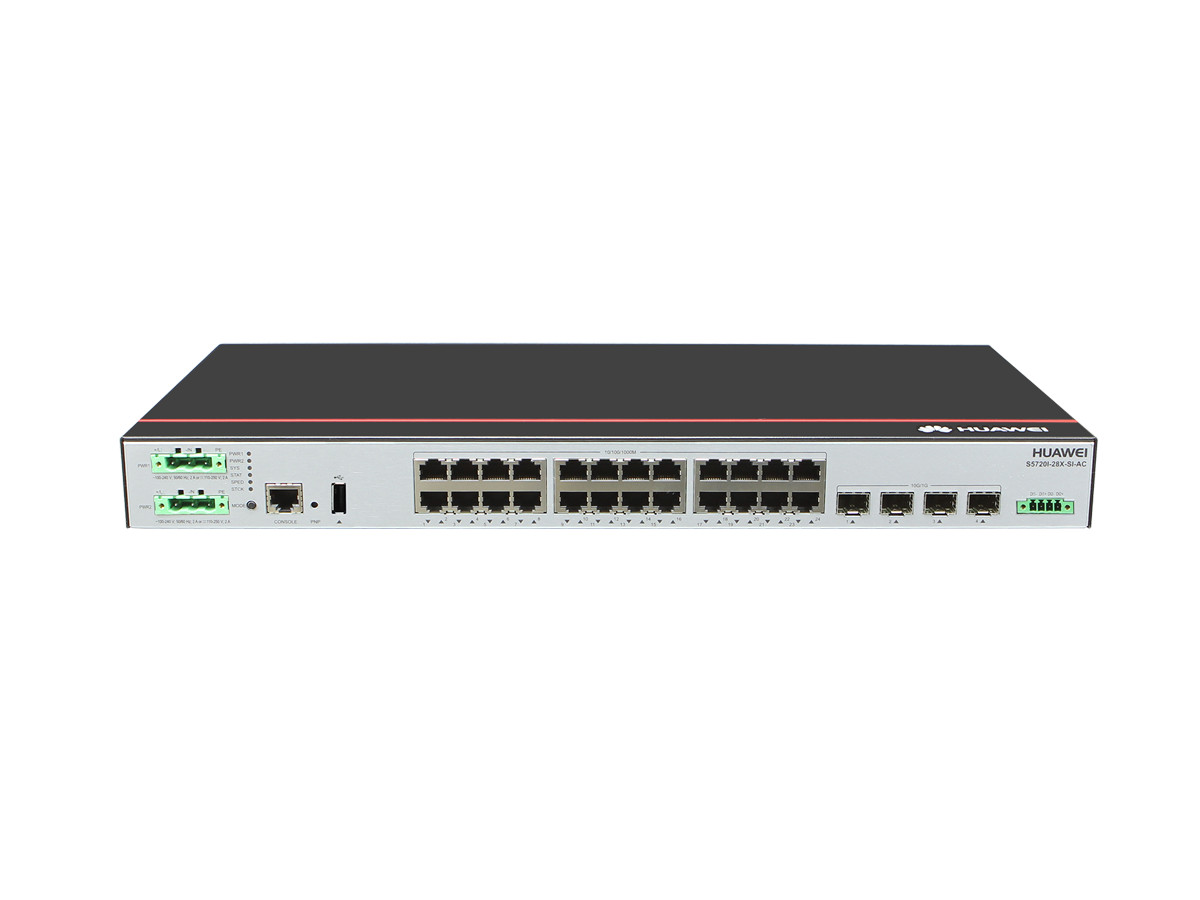

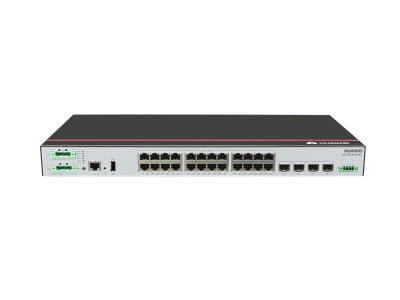

| S5720I-28X-SI-AC Specifications | |
| Product Series | Huawei S5700 Series |
| Product Name | S5720I-28X-SI-AC |
| Switching Capacity | 256 Gbps |
| Forwarding Performance | 95 Mpps |
| Fixed Ports | 24 Ethernet 10/100/1000 Base-T ports, 4 SFP+ 10G ports |
| Network Protocols | IPv4, IPv6, MPLS |
| MAC Address Table | 16K |
| VLAN Features | 4K VLANs, Guest VLAN, Voice VLAN |
| Quality of Service (QoS) | Supports queue scheduling, flow shaping, congestion avoidance, and traffic monitoring |
| Security Protocols | 802.1x, Radius, TACACS+, SSH 2.0, and Public Key Infrastructure (PKI) |
| Reliability Technologies | VRP (Versatile Routing Platform), BFD (Bidirectional Forwarding Detection), and VRRP (Virtual Router Redundancy Protocol) |
| Management Types | SNMP v1, v2c, v3, RMON, Web-based management, CLI |
| Power Over Ethernet (PoE) | Not Supported |
| Power Supply | AC 110/220V |
| Form Factor | 1U, Rack Mountable |
| Dimensions (H x W x D) | 44 mm x 442 mm x 220 mm |
